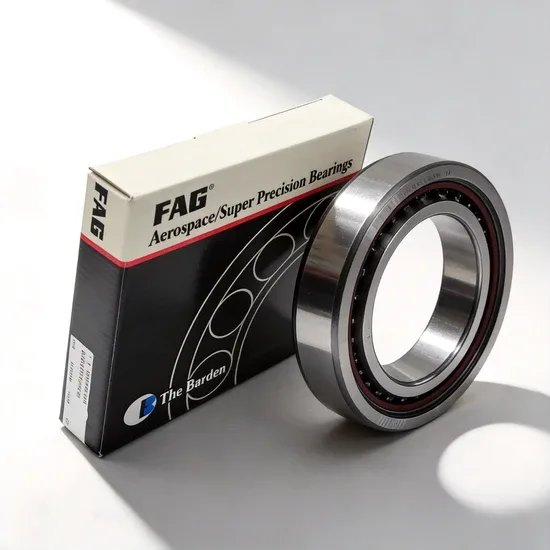

FAG XCE71903-C-T-P4S Angular Contact Bearing P4S Precision

Authorized Channel Traceability — Every FAG XCE71903-C-T-P4S angular contact ball bearing we supply ships with batch-level documentation traceable back to the manufacturer's production facilities, giving procurement teams the paper trail they need before installation.

Technical Specifications

Note: The suffixes "T" and "P4S" as a combined designation require verification against the current FAG precision bearing catalog for exact cage material code and tolerance class variant definitions.

Application Suitability

When a 15° Contact Angle Becomes the Wrong Call on a Spindle Rebuild

Matching contact angle to the actual load spectrum prevents thermal drift that destroys part tolerances.

I once reviewed a spindle rebuild in Ningbo where the maintenance team replaced a 15° angular contact bearing with a 25° variant because the base number matched and the price was lower. Within two weeks, the spindle exhibited thermal growth that pushed bore tolerances out of spec on every part. The higher contact angle generated more friction heat under the predominantly radial loads this grinding spindle experienced. That kind of substitution error does not show up on a dial indicator during commissioning — it reveals itself in scrap rates once production resumes [NEED_CITE: angular contact bearing contact angle selection and thermal behavior under radial-dominant loads]. A significant share of premature spindle failures traces back to suffix mismatches during cross-referencing, not to the bearing itself.

How the FAG XCE71903-C-T-P4S Fits Precision Spindle Envelopes

Spindle designers working with 17 mm bore housings need a bearing that stays dimensionally stable at sustained high speeds while generating minimal friction heat. The 15° contact angle on the FAG XCE71903-C-T-P4S angular contact ball bearing produces lower friction torque than 25° or 40° alternatives when radial loads dominate the load spectrum, which is typical for most grinding and high-speed milling spindles. We have supplied this size range to rebuild shops that verify running accuracy on receipt — and the P4S tolerance band consistently meets the tight bore-to-shaft fit requirements these applications demand.

Thermal Stability and Lubrication Demands at Sustained RPM

High-speed spindle bearings operate in a narrow window where lubricant film thickness, cage stability, and thermal expansion must all align. At elevated rotational speeds, grease degradation accelerates and oil-air systems must deliver precise metered quantities to avoid both starvation and churning losses. The 17×30×7 mm envelope leaves limited internal volume for lubricant retention, making the cage design and contact angle critical to maintaining an adequate elastohydrodynamic film [NEED_CITE: elastohydrodynamic lubrication film thickness in high-speed angular contact spindle bearings]. Temperature gradients across the spindle housing also affect internal clearance — a bearing installed with standard CN clearance in an application that demands C3 for thermal expansion will bind as the shaft grows, generating a thermal runaway condition.

What the Suffix Stack Actually Controls

The C suffix confirms a 15° contact angle, which directs more of the load path radially and keeps friction heat lower compared to steeper angles. This geometry suits applications where axial thrust is secondary — such as belt-driven grinding spindles where radial cutting forces dominate. The P4S precision class sits in the high-accuracy tier, delivering the dimensional and running accuracy that spindle nose positions require to hold part tolerances in the micron range. The lightweight construction at 0.010 Kg reduces rotational inertia, which matters during rapid acceleration and deceleration cycles common in CNC tool changers.

What Substitution Errors Cost Beyond the Bearing Price

Installing a P0 grade bearing in a position that demands P4S precision does not cause immediate seizure — it causes vibration that degrades surface finish, accelerates tool wear, and eventually damages the spindle housing seating. The cost of the bearing itself becomes negligible compared to unplanned downtime, scrapped production batches, and potential housing re-machining [NEED_CITE: ISO 15243 rolling bearing damage classification and failure mode analysis]. Counterfeit bearings with soft inner rings and cloned packaging compound this risk because they pass visual inspection but fail under operational loads. Sourcing through verified channels with traceable documentation is the only practical defense against these hidden costs.

How Our Supply Process Protects Your Spindle Rebuilds

Every FAG XCE71903-C-T-P4S angular contact ball bearing we quote originates from authorized distributor channels with batch documentation you can trace. We cross-reference not just the base designation but the full suffix stack — contact angle, cage type, precision class — so you receive a bearing that matches the original specification. When buyers ask about interchange equivalents from other brands, we verify that clearance, cage material, and precision grade all align before confirming a substitution. Our documentation packages include the paperwork that procurement teams need for import compliance and incoming inspection, and we provide authenticity verification guidance so your receiving department knows what to check before the bearing reaches the spindle bench.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing batch and lot numbers for this specific P4S precision shipment
• Country-of-origin documentation supporting import customs clearance and buyer-side verification requirements
• QR code verification pathway guidance using the brand's official authentication app to confirm product legitimacy
• Third-party dimensional and runout inspection reports available to verify P4S running accuracy tolerances before installation
• HS code classification assistance for precision angular contact ball bearings entering regulated markets

Storage, Handling & Mounting

• Keep this P4S precision bearing sealed in its original packaging until the moment of mounting — any contamination on the 17 mm bore surface compromises the interference fit and introduces runout errors
• Handle with clean, lint-free gloves to prevent fingerprint corrosion on the raceways, which is particularly critical given the tight tolerances of the P4S class
• Store horizontally in a temperature-stable environment away from vibration sources; even low-amplitude floor vibration can cause false brinelling damage to the raceway contact points over time
• For spindle installations requiring paired mounting, confirm the factory-matched pairing marks before separating the set — mixing bearings from different production batches alters the preload balance
• Mount using controlled induction heating for the inner ring where interference fits are specified; excessive localized heat from open flames will alter the dimensional stability of precision-ground components
• Apply the specified spindle lubricant quantity immediately before assembly if the bearing is supplied open; over-greasing the limited internal volume of this 7 mm width bearing generates excess friction heat at operating speed

Request a Technical Review Before You Commit

Share your spindle application parameters — operating speed, load spectrum, lubrication method, and housing fit specifications — and we will verify whether the FAG XCE71903-C-T-P4S angular contact ball bearing matches your requirement or whether a different suffix variant serves you better. If you are replacing an existing bearing, provide the OEM equipment number or the full designation from the nameplate and we will run a complete cross-reference check including clearance and precision alignment. We can also confirm current batch availability, lead times, and the documentation package that will accompany your shipment.

Frequently Asked Questions

Q: How do I verify the authenticity of a FAG angular contact ball bearing received from a distributor? A: Genuine FAG precision bearings carry batch-traceable markings that can be verified through the manufacturer's official authentication app using the QR code or serial number on the packaging. We supply every bearing with documentation linking the shipment to its authorized distributor channel origin, and we guide receiving teams on which markings to inspect and how to interpret them.

Q: What does the C suffix indicate on this angular contact bearing, and how does it affect performance? A: The C suffix denotes a 15° contact angle. This geometry directs a larger share of the load capacity radially while generating less friction heat than 25° or 40° variants, making it suitable for high-speed spindle applications where radial cutting forces predominate and thermal stability is critical.

Q: How should I cross-reference this bearing to an equivalent from another brand? A: A valid cross-reference must match not only the bore, outside diameter, and width but also the contact angle, cage design, and precision class. We maintain interchange data across major brands and verify all three alignment points — clearance, cage material, and tolerance grade — before confirming any substitution for the FAG XCE71903-C-T-P4S.

Q: What is the difference between P4, P4A, and P4S precision classes? A: These designations represent different tolerance band definitions within the high-precision tier. The specific differences relate to dimensional tolerances and running accuracy limits as defined in the manufacturer's precision catalog. We recommend confirming the exact class requirement with the spindle OEM or verifying against the original bearing's full designation before ordering.

Q: What import documentation will accompany my shipment? A: We provide country-of-origin certificates, supplier Certificates of Conformity with batch traceability, HS code classification details, and commercial invoices formatted for customs clearance in regulated markets. Additional documentation can be arranged based on your destination country's specific import requirements.

Secure Your Spindle Rebuild with Verified Precision Bearings Send us your application parameters or OEM equipment number and we will confirm the exact suffix match, batch availability, and documentation package for your next FAG XCE71903-C-T-P4S angular contact ball bearing order.
