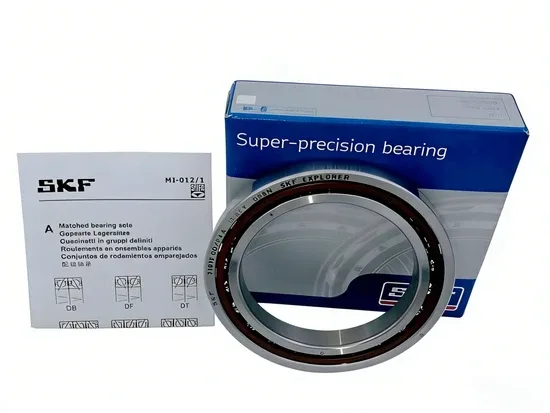

SKF 7022 CD/HCP4ATBTA Angular Contact Bearing P4A Precision Spindle

Authorized Channel Sourcing — Every SKF 7022 CD/HCP4ATBTA ships with batch-level traceability documents tied to the manufacturer's distribution network.

Technical Specifications

Note: Suffix segments HC and TA in this designation require verification against the manufacturer's current catalog for exact meaning; they are not covered in standard SKF angular contact decoding tables.

Application Suitability

What Happens When a Spindle Bearing Suffix Gets Swapped

The suffix is the bearing — miss one letter and you miss the entire performance envelope.

In precision spindle service, matching the base number 7022 is only the start. I once saw a textile line pull an entire batch of angular contacts because the supplier delivered P6 precision where P4A was specified, and used a standard steel cage instead of phenolic. The spindle ran hot in under a week. Vibration alarms tripped, surface finish on the fabric rolls degraded, and the downtime cost far exceeded what they saved on the bearing invoice. That pattern repeats across machine shops and pump rebuilders: the purchase order says one thing, the box arrives with another, and nobody catches it until the equipment is already running [NEED_CITE: bearing substitution failures in precision spindle applications per ISO 15243].

Where the SKF 7022 CD/HCP4ATBTA Fits the Spindle Load Profile

Machine tool spindles demand a bearing that handles combined radial and axial loads at sustained high speed while maintaining tight runout. The SKF 7022 CD/HCP4ATBTA meets that requirement through its 15° contact angle, which keeps friction heat generation lower than 25° alternatives when radial loads dominate. For shops running CNC lathes or vertical machining centers, this means less thermal growth in the spindle nose and more consistent part tolerances across an eight-hour shift. When we cross-reference this model for procurement engineers, we align cage material, precision class, and contact angle together — not just the bore and outside diameter.

Thermal and Speed Demands on Spindle Bearings

High-speed spindles generate internal heat from rolling contact and cage drag. At elevated RPM, the phenolic resin cage in this bearing reduces centrifugal loading on the balls compared to brass alternatives, which matters when you are pushing toward the speed limit of the 110 mm bore class. Temperature also affects the internal clearance: if the spindle housing runs hotter than the shaft, a standard CN clearance can close up and cause thermal binding. Oil-air or oil-mist lubrication systems help manage this, but they require the cage material to be compatible with the lubricant chemistry. Installers should confirm the housing fit and shaft tolerance match P4A requirements — a loose fit wastes the running accuracy the bearing was built to deliver [NEED_CITE: thermal expansion effects on bearing internal clearance in spindle applications].

Decoding the Engineering Behind the Designation

The CD suffix confirms a 15° contact angle with optimized internal geometry, balancing axial stiffness against friction for predominantly radial spindle loads. P4A precision goes beyond standard ISO class 4 dimensional tolerances by adding running accuracy specifications — this controls bore and outside diameter runout to tighter limits than P5 or P6 grades, directly affecting the surface finish a spindle can produce. The TB phenolic resin cage is lightweight and self-lubricating at the sliding contact points, reducing the drag torque that would otherwise limit speed capability. Single row angular contact bearings like this one must be paired or preloaded against another bearing to handle bidirectional axial loads; the arrangement and preload level should match the spindle designer's original specification.

The Hidden Price of a Shortcut on Precision Bearings

Correct specification and verified sourcing protect against unplanned downtime that no procurement savings can justify. A counterfeit or mis-specified bearing in a spindle position can cause shaft runout to exceed the machine's tolerance budget, leading to scrapped parts, emergency maintenance calls, and in severe cases, damage to the spindle housing itself. ISO 281 provides the L10 life framework, but that calculation assumes correct installation, lubrication, and genuine components — substitute any one of those and the predicted life is meaningless. Shops that skip verification on precision-class bearings often discover the problem only after a catastrophic failure that takes the entire spindle out of service for days [NEED_CITE: ISO 281 bearing life calculation assumptions and failure modes].

How We Support Precision Bearing Procurement

Every SKF 7022 CD/HCP4ATBTA we source comes through authorized distribution channels with documentation you can trace back to the production batch. We provide cross-reference comparison across SKF, NSK, FAG, and other major brands, matching not only the base designation but also the contact angle, cage type, and precision suffix so substitutions are genuinely interchangeable. Our team reviews application parameters — load, speed, temperature, and mounting envelope — before confirming selection. Country-of-origin documentation and HS code support are included for import compliance, and we guide buyers through QR code verification via the brand's official app to confirm authenticity before installation.

Documentation & Authenticity

• Supplier Certificate of Conformity tied to the specific production batch of this P4A bearing
• Third-party runout inspection confirming P4A running accuracy limits before shipment
• Material certificate verifying ring and ball steel grade consistent with precision spindle requirements
• Country-of-origin documentation prepared for customs clearance and buyer verification
• QR code verification pathway through the manufacturer's official mobile application
• Batch and lot traceability records linking the physical bearing to factory test data

Storage, Handling & Mounting

• Keep the 7022 CD/HCP4ATBTA in its original sealed packaging until mounting to protect the phenolic cage from moisture absorption and contamination
• Store in a temperature-stable environment away from direct sunlight to prevent degradation of the phenolic resin cage material over extended periods
• Handle with clean lint-free gloves to avoid transferring skin oils onto the P4A-precision ground raceway surfaces
• Mount using controlled induction heating of the inner ring to the specified temperature range — never apply direct flame or force-fit, which can distort the 110 mm bore and compromise running accuracy
• After installation, verify preload and axial positioning match the spindle designer's specification before introducing operational loads
• For open-type bearings in this class, confirm external sealing responsibility lies with the housing design to prevent coolant or chip ingress during machining operations

Start Your Technical Review

Share your spindle load profile, operating speed, and temperature range so we can verify this SKF 7022 CD/HCP4ATBTA matches your application or recommend the correct variant. If you are replacing an existing bearing, provide the OEM equipment number for full cross-reference verification including clearance, cage, and precision alignment. Request the documentation package with origin confirmation before committing to production quantities.

Frequently Asked Questions

Q: What does the P4A precision class mean compared to ABEC ratings? A: P4A meets ISO tolerance class 4 dimensional requirements and adds running accuracy specifications for bore and outside diameter runout. This is roughly equivalent to ABEC 7 but with additional running accuracy controls that matter in spindle applications where surface finish depends on minimal shaft displacement.

Q: Why does the cage material matter for high-speed spindle service? A: The TB phenolic resin cage in this bearing is lighter than brass alternatives, reducing centrifugal force on the balls at high RPM. It also has self-lubricating properties at sliding contact points. However, phenolic cages have a lower maximum operating temperature than brass or steel, so confirming your spindle's thermal profile is essential before selection.

Q: What must I align when cross-referencing this bearing to another brand? A: Beyond the base 7022 designation, you must match the 15° contact angle (CD), P4A precision class, phenolic cage type (TB), and any arrangement or preload suffixes. A bearing with the same bore and OD but a different contact angle or cage will behave differently under load and speed, potentially causing premature failure.

Q: How can I verify the bearing is genuine before installation? A: Scan the QR code on the packaging using the manufacturer's official mobile application to confirm batch authenticity. Additionally, request the Certificate of Conformity and batch traceability documentation from your supplier, which should link the physical bearing to specific production records.

Q: What do the HC and TA suffix segments indicate in this designation? A: These segments require confirmation against the manufacturer's current technical catalog, as their meaning can vary by product series and production period. We verify all suffix segments against official documentation before confirming any order to ensure you receive exactly what your application requires.
