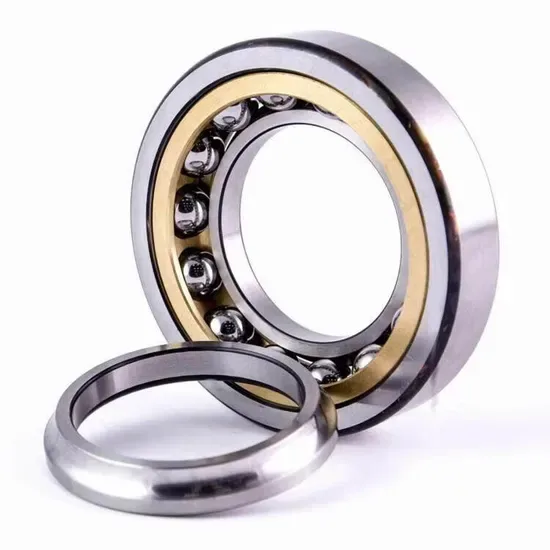

FAG HCB7024-C-2RSD-T-P4S-UL Angular Contact Bearing Genuine

Traceable Authenticity Guaranteed — every FAG HCB7024-C-2RSD-T-P4S-UL angular contact ball bearing we supply ships with batch-linked certificates and QR verification pathways through the manufacturer's official apps.

Technical Specifications

Note: Suffixes HCB, 2RSD, T, P4S, and UL are not listed in the provided SKF suffix reference table; their functional interpretations above reflect FAG high-speed hybrid ceramic spindle bearing conventions and should be confirmed against the manufacturer catalog for application-critical specifications.

Application Suitability

Why a 15° Contact Angle Matters When Your Spindle Hits 30,000 RPM

Lower contact angles generate less friction heat under predominantly radial loads — and in a P4-class spindle, heat is the enemy of accuracy.

I once watched a grinding shop lose an entire week's production because someone swapped a 25° angular contact bearing into a spindle designed for 15°. The base designation matched, but the contact angle suffix was wrong. Within days, thermal growth closed the internal clearance, the cage began scoring, and the spindle chattered itself into scrap. That failure haunts me every time I see a purchase order that only specifies the base number. [NEED_CITE: angular contact bearing contact angle and thermal growth relationship in high-speed spindles]

Counterfeit high-precision angular contact bearings now circulate with cloned QR codes and soft inner rings that pass visual inspection. A genuine FAG HCB7024-C-2RSD-T-P4S-UL angular contact ball bearing delivers consistent 15° contact geometry, ceramic rolling elements for reduced centrifugal loading, and factory-applied seals that retain lubrication at elevated speeds — attributes that counterfeit assemblies simply cannot replicate.

Matching the HCB7024 to High-Speed Spindle Envelopes

The hybrid ceramic construction in this FAG HCB7024-C-2RSD-T-P4S-UL angular contact ball bearing replaces steel balls with silicon nitride rolling elements, reducing mass at the contact point and lowering centrifugal forces at extreme rotational speeds. For CNC spindle cartridges running above 20,000 RPM with predominantly radial cutting loads, the 15° contact angle provides adequate axial stiffness while minimizing friction-induced temperature rise. We have sourced this configuration for spindle rebuild shops across the Middle East and Latin America, pairing it with matched preload sets and verifying cross-brand interchangeability against equivalent SKF and NSK hybrid spindle bearings.

Thermal, Lubrication, and Sealing Demands in Precision Grinding

Spindle bearings in internal grinding applications face a punishing combination: radial cutting forces, axial thrust from feed mechanisms, and heat conducted from the motor stator. The sealed design on both sides retains the factory grease fill and blocks fine grinding swarf from entering the raceway — a contamination mode that accelerates fatigue under ISO 281 life calculations. [NEED_CITE: ISO 281 bearing life calculation contamination factor effects] Temperature differentials between the inner and outer ring can compress internal clearance if the bearing was not specified with adequate thermal growth allowance; the universal matching designation on this model allows the installer to set preload at assembly to compensate for operating temperature gradients.

Decoding the Engineering Inside the HCB7024-C-2RSD-T-P4S-UL

The ceramic balls in the HCB series reduce rolling element mass by roughly two-thirds compared to steel, which directly lowers centrifugal loading on the outer ring raceway at high speeds — a phenomenon that otherwise skids the balls and generates cage wear. The 15° contact angle concentrates load capacity in the radial direction, making this configuration optimal for belt-driven or motorized spindles where radial cutting forces dominate over axial thrust. The P4S precision class constrains dimensional and running accuracy to tolerances tighter than standard P4, critical for maintaining workpiece surface finish on finishing spindles. The sealed configuration trades a small amount of speed capability for contamination exclusion — a worthwhile compromise in grinding and milling environments where airborne particulate is constant. [NEED_CITE: hybrid ceramic bearing advantages in machine tool spindle applications]

What a Wrong Bearing Actually Costs Beyond the Invoice

A single premature spindle failure cascades: unplanned downtime halts the cell, the workpiece in progress is scrapped, the spindle cartridge requires disassembly and inspection, and the replacement bearing lead time extends the outage by days or weeks. Using a bearing with mismatched clearance, incorrect contact angle, or counterfeit metallurgy voids the spindle rebuild warranty and can score the shaft journal — converting a bearing replacement into a shaft repair or replacement. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

How We Reduce Sourcing Risk for Precision Spindle Bearings

Every FAG HCB7024-C-2RSD-T-P4S-UL angular contact ball bearing we supply originates from authorized distributor channels, not parallel import traders or unverified online marketplaces. We provide batch-linked traceability documentation, QR code verification pathways through the manufacturer's official apps, and country-of-origin certification for import compliance. Our cross-reference database matches not only the base designation but also the clearance class, cage material, seal type, and precision suffix — preventing the substitution errors that cause field failures. When a buyer in Central Asia needed to replace an OEM spindle bearing specified only by equipment number, we cross-referenced the original FAG specification, confirmed the contact angle and preload class matched, and shipped with full dimensional inspection documentation.

Documentation & Authenticity

• Supplier Certificate of Conformity linking each batch to the manufacturer's production lot for the FAG HCB7024-C-2RSD-T-P4S-UL
• QR code verification pathway enabling on-site authenticity confirmation via the manufacturer's official mobile application
• Third-party dimensional and running accuracy inspection report confirming P4S tolerance class before shipment
• Country-of-origin certificate and HS code documentation supporting import clearance in restricted jurisdictions
• Material certificate confirming hybrid ceramic rolling element specification and steel ring metallurgy

Storage, Handling & Mounting

• Retain the factory vacuum-sealed packaging until the moment of mounting; premature opening exposes the sealed faces of this 2RSD bearing to ambient humidity and particulate
• Store flat in a temperature-stable environment below 25°C to prevent grease separation within the factory-filled sealed bearing
• Use lint-free gloves during handling; fingerprints on the outer ring surface can compromise corrosion resistance on P4S-class raceway finishes
• For universal-matched sets, maintain the factory pairing marks and install in the marked orientation to preserve the specified preload relationship
• Never apply direct impact force to the ceramic balls during mounting; use controlled induction heating of the inner ring for interference fits on the spindle shaft
• Verify shaft and housing tolerances against the manufacturer's recommendations for P4S precision class before assembly to prevent preload distortion

Next Steps for Spindle Bearing Procurement

Share your spindle operating parameters — speed range, load spectrum, operating temperature, and lubrication method — so we can verify this FAG HCB7024-C-2RSD-T-P4S-UL angular contact ball bearing matches your application or recommend a more suitable configuration. Provide the OEM equipment number for cross-reference validation against the original manufacturer specification. Request the documentation package including batch traceability and country-of-origin certification for your import compliance review.

Frequently Asked Questions

Q: How can I verify that the FAG HCB7024-C-2RSD-T-P4S-UL bearing I received is genuine? A: Authentic FAG bearings carry laser-etched markings and QR codes verifiable through the manufacturer's official app. We supply each unit with batch-linked Certificates of Conformity and material documentation traceable to the production lot. Counterfeit bearings often show inconsistencies in marking depth, font weight, or packaging print quality upon close inspection.

Q: What does the 15° contact angle (C suffix) mean for my spindle application? A: A 15° contact angle directs load capacity primarily in the radial direction, which suits high-speed spindles where radial cutting forces exceed axial thrust. Using a bearing with a higher contact angle in a predominantly radial application increases friction heat and can cause thermal binding under sustained high-speed operation.

Q: Can this bearing be cross-referenced to equivalent SKF or NSK spindle bearings? A: We maintain a cross-reference database covering SKF, NSK, FAG, TIMKEN, NTN, and KOYO spindle bearings, matched on contact angle, precision class, seal type, and preload — not just the base number. Provide your existing specification or OEM equipment number for a verified interchange comparison.

Q: What documentation ships with each bearing for import compliance? A: Each shipment includes a Supplier Certificate of Conformity, material certificate, dimensional inspection report, batch traceability records, country-of-origin documentation, and HS code information formatted for customs clearance in your destination market.

Q: What are typical lead times for bulk orders of this spindle bearing? A: Lead times depend on current stock at authorized distributor warehouses and the quantity required. Share your required quantity and delivery timeline, and we will confirm batch availability and provide a firm quotation with lead time.

Confirm Your Spindle Bearing Specification Send your application parameters or OEM equipment number, and we will return a verified cross-reference with full documentation and lead time confirmation.
