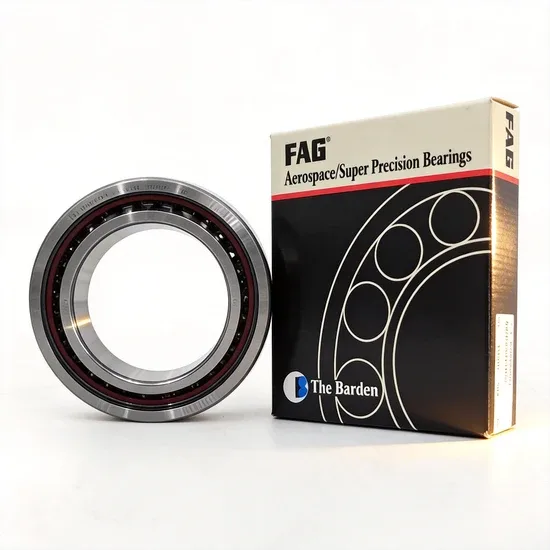

FAG HC7006-E-T-P4S Angular Contact Bearing P4S Precision

Authorized Channel Sourcing — Every FAG HC7006-E-T-P4S angular contact ball bearing we supply ships with batch-level traceability back to the manufacturer's distribution network, ensuring spindle shops receive genuine P4S precision components rather than relabeled stock.

Technical Specifications

Note: The HC, E, and T suffixes on this designation fall outside the standard SKF/FAG speed reference tables we use daily; their exact meaning (hybrid ceramic rolling elements, optimized internal geometry, phenolic cage) should be confirmed against the current FAG spindle bearing catalog before finalizing an order.

Application Suitability

Why Suffix Accuracy Matters for the FAG HC7006-E-T-P4S

A single mistyped letter after the dash can cost a spindle rebuild and weeks of unplanned downtime.

I spent years in the inspection lab chasing down why bearings failed, and the pattern was always the same: someone matched the base number and ignored everything after it. A workshop in Sharjah once dropped a P0 grade bearing into a spindle that called for P4s precision — they saved a few dollars on the part and spent thousands on a headstock rebuild. The FAG HC7006-E-T-P4S angular contact ball bearing carries four distinct suffixes, each governing a different physical characteristic. If a supplier substitutes an E contact angle for a C, or swaps a phenolic cage for a steel one, the spindle will run hot, vibrate, and fail long before its calculated L10 life. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Matching the HC7006 to High-Speed Spindle Envelopes

The 30 mm bore and 55 mm outside diameter place this FAG HC7006-E-T-P4S angular contact ball bearing squarely in the size range used for mid-range machining center spindles and precision grinding heads. At P4S precision — tighter than standard P4 in both dimensional tolerance and running accuracy — it is engineered for applications where radial runout directly translates into workpiece surface finish defects. We regularly cross-check OEM equipment numbers against our interchange database to confirm that clearance, cage type, and contact angle all align before recommending a substitute brand, because matching only the bore and OD is how field failures begin.

Thermal Growth and Lubrication Demands at Spindle Speeds

High-speed spindle operation generates significant friction heat at the contact ellipse between ball and raceway. The thermal expansion of the shaft, housing, and bearing rings shifts the internal clearance from its cold-mount value, meaning a bearing selected with standard CN clearance may preload itself into binding as temperatures climb. Oil-air or oil-jet lubrication is typical at these speeds, and the cage material must withstand centrifugal forces while maintaining ball spacing without generating excess heat. The single-row angular contact configuration handles combined radial and axial loads but requires a paired opposing bearing to *ent and preload wrong invites premature cage failure. [NEED_CITE: angular contact bearing preload arrangement effects on spindle stiffness]

Decoding the P4S Precision and Internal Geometry

The P4S designation in the FAG system indicates running accuracy that exceeds the standard ISO 492 Class 4 requirements, specifically targeting the tighter bore-to-OD concentricity and side-runout limits that precision spindles demand. The E suffix on FAG spindle bearings typically denotes an optimized internal geometry — modified raceway curvatures and ball complement — designed to reduce contact stress at high rotational speeds. A phenolic cage (commonly indicated by the T suffix in FAG nomenclature) offers lower mass and reduced friction compared to brass or steel cages, which directly translates to lower operating temperature and extended grease life in oil-mist lubricated spindles. These specifications together define a bearing built for sustained high-speed duty rather than general-purpose industrial use.

The Hidden Costs of Counterfeit or Mismatched Spindle Bearings

A counterfeit bearing with a soft inner ring and a cloned QR code will pass a casual visual inspection but cannot maintain the dimensional stability required for P4S precision under thermal cycling. When the raceway geometry degrades under load, vibration propagates through the spindle assembly, damaging seals, cutting tool holders, and eventually the workpiece. ISO 281 life calculations assume genuine material properties and correct geometry; feed those equations a bearing with out-of-spec raceway curvature and the predicted L10 life becomes meaningless. [NEED_CITE: ISO 281 bearing life calculation assumptions on material quality] The true cost is never the bearing itself — it is the scrapped batch of precision components, the missed delivery deadline, and the warranty claim on the machine tool.

How We Source and Verify Spindle-Grade Bearings

Every FAG HC7006-E-T-P4S angular contact ball bearing we supply enters through authorized distributor channels with documentation that traces the batch back to the manufacturer's production facilities. We do not hold single-brand distributorships; instead, we source across six major brands and provide cross-reference comparisons that align clearance, cage material, contact angle, and precision class — not just the base designation. For buyers in regions where counterfeit exposure is a real concern, we walk through the QR code verification pathway using the brand's official app and supply country-of-origin documentation for import compliance. Our inspection lab background means we check suffix alignment as a matter of routine, not as an upsell.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the specific batch and lot number of this P4S spindle bearing
• QR code verification walkthrough using the FAG official app to confirm authenticity before mounting
• Country-of-origin certificate supporting import documentation and customs clearance for regional distributors
• Dimensional inspection report confirming bore, OD, width, and running accuracy against P4S tolerance limits
• Material certificate documenting raceway and rolling element steel specification

Storage, Handling & Mounting

• Retain the original sealed packaging until the moment of mounting; premature exposure risks contaminating the precision-ground raceways of this P4S bearing
• Store flat in a temperature-stable environment below the specified humidity threshold to prevent condensation on the exposed steel surfaces of this open-type angular contact design
• Use clean, lint-free gloves when handling — skin oils and particulate on the 30 mm bore surface can score the shaft fit during press assembly
• For oil-air lubricated spindle installations, flush and verify the lubrication delivery system before introducing the bearing to prevent dry-start damage
• If this bearing is part of a matched DB or DF set, keep the factory-applied pairing marks aligned during mounting to maintain the specified preload distribution

Start Your Spindle Bearing Inquiry

Share your spindle operating parameters — maximum RPM, expected radial and axial loads, lubrication method, and target operating temperature — so we can verify that the FAG HC7006-E-T-P4S angular contact ball bearing is the correct fit or identify a more suitable alternative from our six-brand coverage. If you are replacing an OEM-specified bearing, provide the machine tool model and serial number for a complete cross-reference check including clearance, cage, and precision suffix alignment.

Frequently Asked Questions

Q: How do I verify the authenticity of a FAG spindle bearing before installation? A: Every genuine FAG bearing carries a QR code that links to the brand's official verification app. Scan it to confirm the batch number matches the documentation and that the product has not been flagged in the anti-counterfeit system. We supply the full verification pathway and supporting Certificate of Conformity with every shipment.

Q: What does P4S precision mean compared to standard P4 in spindle applications? A: P4S is a FAG-specific precision class that tightens the running accuracy requirements beyond what ISO 492 Class 4 mandates. In practice, this means lower bore-to-OD concentricity deviation and tighter side-runout limits, both critical for minimizing vibration in high-speed spindle applications where workpiece surface finish is directly tied to bearing runout.

Q: Why must clearance, cage, and contact angle all match when cross-referencing brands? A: The base designation only defines bore, OD, and width. A bearing with the same envelope dimensions but a different contact angle will have different axial stiffness and heat generation characteristics. A mismatched cage material changes the speed limit and lubrication compatibility. Substituting clearance class alters the thermal preload behavior. All three must align to avoid field failures.

Q: What contact angle is appropriate for high-speed spindle versus heavy-load applications? A: A 15° contact angle (C suffix) favors high-speed operation with lower friction heat and is typical for machining center spindles. A 25° angle (E/ACD) balances axial capacity with speed capability. A 40° angle (B) maximizes axial load capacity but generates more friction heat, limiting speed. The correct choice depends on your specific load spectrum and RPM envelope.

Q: Can I get origin documentation for import clearance with this bearing? A: Yes. We provide country-of-origin certificates and HS code support with every shipment. For buyers in regions with strict import verification requirements, we also supply batch traceability documentation that traces the bearing back through our authorized distributor supply chain.

Get Your Spindle Bearing Quotation Send us your application parameters or OEM equipment number, and we will return a complete technical review with cross-reference options, authenticity documentation, and lead time.
