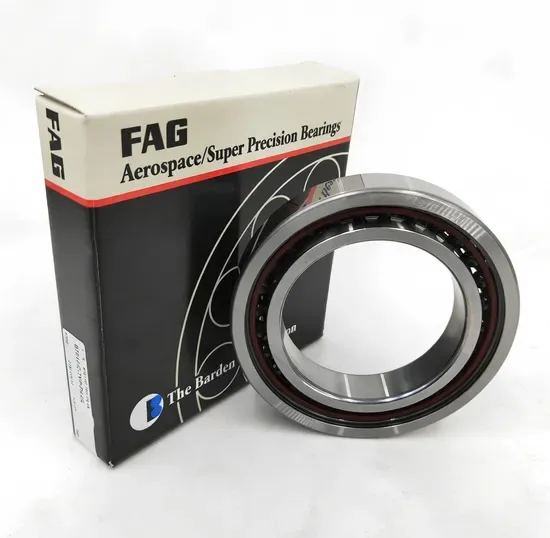

FAG HCB7013-E-2RSD-T-P4S-UL Ceramic Angular Contact Bearing P4S
FAG HCB7013-E-2RSD-T-P4S-UL Ceramic Angular Contact Bearing P4SFAG HCB7013-E-2RSD-T-P4S-UL Ceramic Angular Contact Bearing P4SFAG HCB7013-E-2RSD-T-P4S-UL Ceramic Angular Contact Bearing P4SFAG HCB7013-E-2RSD-T-P4S-UL Ceramic Angular Contact Bearing P4SFAG HCB7013-E-2RSD-T-P4S-UL Ceramic Angular Contact Bearing P4S

Quote memo for this SKF bearing

State the exact execution (designation suffix), whether you need the complete assembly, and which housings or mounting accessories belong on the same line. Keep precision items separate, with accuracy class and arrangement.

Send Your Model List

Technical data

Specifications

Listed data for this SKF designation; confirm the execution and dimensions against your drawing or application before ordering.

Product details

Authorized Channel Traceability — Every FAG HCB7013-E-2RSD-T-P4S-UL unit ships with batch-level documentation linking back to the manufacturer's production records, so procurement teams can confirm origin before customs clearance.

Technical Specifications

Parameter Value
Designation FAG HCB7013-E-2RSD-T-P4S-UL
Bearing Type Angular Contact Ball Bearing (Hybrid Ceramic)
Bore Diameter (d) 65 mm
Outside Diameter (D) 100 mm
Width (B) 18 mm
Seal or Shield Type 2RSD — Contact seal on both sides
Precision Class P4S (ISO 492 class 4 with extended running accuracy)
Contact Angle 15°
Arrangement UL — Universal matching, light preload
Cage Material Phenolic resin (laminated fabric)
Number of Rows Single Row
Weight 0.560 kg
Rolling Element Silicon nitride ceramic balls (HC)

Note: Suffixes B and T in the full designation are listed for completeness; exact definitions should be confirmed against the current FAG high-precision catalog before final specification lock-in.

Application Suitability

Industry Typical Applications
Machine Tool Manufacturing CNC machining center spindle nose bearings, grinding wheel head spindles
Robotics & Automation High-speed rotary actuator shafts, precision positioning stages
General Industrial MRO Replacement spindles on legacy lathes and milling machines requiring P4S accuracy

What Ceramic Balls Change on a 12,000 RPM Spindle

The density difference between silicon nitride and steel is not a marginal improvement — it redefines the speed ceiling.

Maintenance engineers replacing steel-ball angular contact bearings in high-frequency spindle applications often see premature cage failure and thermal runaway within the first few hundred operating hours. The root cause is centrifugal load: at elevated RPM, steel balls press outward against the outer race with forces that overwhelm standard cage designs and accelerate lubricant breakdown. Ceramic rolling elements weigh roughly 40% less than their steel counterparts of the same diameter, which cuts centrifugal loading dramatically. That reduction means cooler running temperatures, less grease degradation, and a cage that survives the full design life of the spindle. Sourcing the FAG HCB7013-E-2RSD-T-P4S-UL from verified channels ensures the ceramic grade and ball sphericity match what the spindle OEM originally specified.

FAG HCB7013-E-2RSD-T-P4S-UL angular contact ball bearing cross-section showing ceramic balls and contact seals

Matching Spindle Duty Cycles to Bearing Design

A machining center spindle rarely operates under steady-state conditions. It accelerates from zero to peak RPM in seconds, reverses direction during tapping cycles, and experiences intermittent radial shock when the cutter engages hard material. The FAG HCB7013-E-2RSD-T-P4S-UL addresses this mixed-duty profile through its reinforced internal geometry (E suffix) and 15° contact angle, which balances radial capacity with moderate axial stiffness. When we cross-reference this bearing for a customer upgrading from an older steel-ball spindle, we verify not just the base number but the preload class, seal type, and cage material against the actual speed profile — because a mismatch on any suffix can shift the operating point outside the safe thermal window.

Thermal Expansion and Seal Friction at Speed

Inside a sealed spindle housing, temperature differentials of 15–20 °C between the inner ring and outer ring are common during continuous high-speed cuts. That gradient shrinks the effective internal clearance, and if the bearing started with insufficient preload or wrong clearance class, the result is axial binding and raceway smearing. The 2RSD contact seals on this bearing retain factory-applied grease and block coolant mist ingress, but they also introduce friction torque that adds to the thermal budget. Engineers specifying replacements need to confirm that the housing cooling circuit and seal type are compatible with the target RPM range. Operating temperatures above the grease base oil's thermal limit will shorten re-lubrication intervals or demand a switch to oil-air systems.

Reading the Suffix String: Where Each Letter Earns Its Place

HC (Hybrid Ceramic): Silicon nitride balls reduce mass, lower friction, and resist electrical pitting — critical on spindles driven by variable-frequency drives that can induce shaft currents.

E (Reinforced Design): Increased ball count or optimized raceway curvature raises the dynamic load rating without enlarging the envelope dimensions, directly extending L10 life under the same spindle loads.

P4S (Extended Precision): Goes beyond standard ISO class 4 by tightening running accuracy — bore and OD tolerances meet P4, while radial and axial runout are held to tighter limits. This matters on finishing spindles where workpiece surface roughness tracks directly to bearing runout.

UL (Universal Light Preload): Bearings are manufactured so that any random selection from the batch achieves the specified light axial preload when mounted back-to-back or face-to-face. Light preload favors high-speed, low-load finishing cuts; heavier cuts would need a medium or heavy preload variant.

Internal cage and ceramic ball arrangement of the HCB7013 series spindle bearing

The Price Tag Hidden Behind a Substituted Bearing

Purchasing a lower-precision angular contact bearing that shares the same 65 × 100 × 18 mm envelope might save money on the invoice, but the downstream costs follow a predictable pattern. A P0-grade substitute in a P4S spindle position introduces radial runout that translates into chatter marks on machined surfaces — forcing the shop to scrap or rework high-value workpieces. Counterfeit units with case-hardened rings instead of through-hardened steel develop subsurface spalling within weeks, sometimes damaging the spindle shaft and housing bore beyond simple bearing replacement. Unplanned downtime on a production CNC machine easily exceeds the bearing cost by a wide margin once lost output, expedited freight, and secondary damage are tallied.

How Procurement Teams Verify Before They Commit

Our sourcing model relies on authorized distributor channels rather than single-brand distributorship, which means every FAG HCB7013-E-2RSD-T-P4S-UL order is backed by traceable procurement records rather than generic trading invoices. We provide the manufacturer's QR code pathway so receiving inspectors can scan and confirm batch authenticity on the shop floor. Cross-reference requests are matched on all three critical axes — clearance, cage material, and precision suffix — not just the base designation, preventing the silent mismatches that cause field failures. Origin documentation accompanies each shipment for customs and import compliance, and dimensional inspection reports confirm that running accuracy meets P4S requirements before the bearing leaves our facility.

Documentation & Authenticity

  • Supplier Certificate of Conformity referencing the specific batch and lot number of each HCB7013-E-2RSD-T-P4S-UL set
  • QR code verification path through the official FAG app, allowing warehouse staff to confirm authenticity at receiving
  • Country-of-origin certificate prepared for import documentation in markets requiring preferential tariff treatment
  • Dimensional and running accuracy inspection report verifying P4S compliance on bore, OD, and runout before dispatch
  • Material certificates for the bearing rings confirming through-hardened steel composition per the manufacturer's specification

Storage, Handling & Mounting

  • Keep the UL matched set in its original sealed packaging until the moment of mounting — breaking the seal early risks contaminating the factory-filled grease inside the 2RSD contact seals
  • Store flat in a climate-controlled area below 25 °C; phenolic resin cages are sensitive to prolonged UV exposure and humidity above 60%
  • Use lint-free cleanroom gloves when handling the ceramic-ball bearing; bare skin oils can degrade grease performance on the silicon nitride surfaces
  • Mount with induction heater set to a maximum of 110 °C on the inner ring only — overheating risks altering the P4S dimensional tolerance and damaging the 2RSD seal lips
  • Do not attempt to re-grease the 2RSD sealed variant; the factory fill is calculated for the bearing's speed-life envelope, and adding grease causes churning losses and thermal buildup
  • Verify the UL preload pairing marks before pressing into the housing — random assembly without confirming mark alignment defeats the universal matching design

Request a Technical Quotation

Share your spindle model number or operating parameters — speed range, load profile, and cooling type — so we can confirm that the HCB7013-E-2RSD-T-P4S-UL suffix combination matches your application. If you are cross-replacing an existing bearing, provide the current designation and we will verify interchange compatibility including preload, seal type, and precision class. Ask for the documentation package and origin confirmation your import process requires before placing the order.

Frequently Asked Questions

Q: How do I verify the authenticity of a FAG HCB7013-E-2RSD-T-P4S-UL using the QR code?
A: Each genuine bearing carries a DataMatrix code on its packaging. Scanning it with the official FAG app connects to the manufacturer's database and returns batch, production date, and distribution chain information. If the code fails to resolve or returns mismatched data, the unit should be flagged for further investigation before installation.

Q: What does the UL suffix mean for mounting arrangements?
A: UL stands for universal matching with light preload. Any two bearings from the same UL batch can be mounted back-to-back or face-to-face and will produce a consistent, specified axial preload without selective fitting. This simplifies spindle assembly and eliminates the need for matched-set-only sourcing.

Q: Why are ceramic balls preferred over steel in this high-speed spindle bearing?
A: Silicon nitride ceramic balls are approximately 40% lighter than steel balls of the same diameter. The reduced mass lowers centrifugal force at high RPM, decreasing outer-race loading, reducing friction heat, and extending both grease life and cage durability in continuous high-speed spindle operation.

Q: Can I use this 2RSD sealed bearing in an oil-air lubrication system?
A: The 2RSD contact seals are designed to retain factory grease and exclude contaminants. If your spindle uses an oil-air system, an open or non-contact sealed variant is typically more appropriate so that external oil can reach the raceways. Confirm with the spindle OEM before substituting seal types.

Q: What cross-reference factors matter beyond the base number HCB7013?
A: A complete interchange check must align precision class (P4S), contact angle (15°), preload (UL light), seal type (2RSD contact seal), and cage material. Matching only the 65 × 100 × 18 mm envelope while ignoring these suffixes can result in thermal binding, excessive runout, or premature cage failure in the spindle.

Secure Your Spindle Uptime with Verified Precision Bearings
Send us your equipment number or application parameters today to receive a cross-reference confirmation, documentation preview, and availability check for the FAG HCB7013-E-2RSD-T-P4S-UL.
