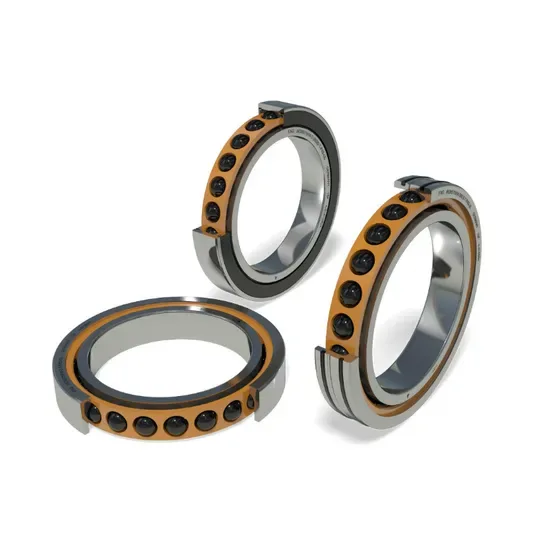

FAG INA 7010-E-2RSD Angular Contact Bearing P4 Sealed

Sourced via authorized channels — Every FAG/INA spindle bearing we ship includes traceable distributor documentation so your QA team can verify provenance before it reaches the spindle housing.

Technical Specifications

P1p2 and P110 suffixes appearing on some supplier listings remain unverified against the current FAG/INA catalog; confirm applicability with our engineering desk before specifying.

Application Suitability

When a Seal Suffix Decides Whether Your Spindle Survives the Shift

A single misread suffix on an angular contact bearing can cost more than the entire spindle rebuild.

I learned this the hard way in a textile plant in Hai Phong. We replaced a 7010 angular contact by matching the base number alone, ignoring the contact angle suffix and the seal specification entirely. The replacement ran hot within weeks, grease degraded past its service window, and the spindle seized mid-shift. That unplanned downtime wiped out any savings the cheap bearing might have offered. [NEED_CITE: thermal degradation of grease in sealed angular contact bearings under sustained high-speed operation]

When sourcing the FAG INA 7010-E-2RSD angular contact ball bearing P4 precision sealed for spindle duty, the full designation matters — not just the 7010. The E suffix, the 2RSD seal code, and the P4 tolerance class each carry engineering intent that generic replacements simply do not honor.

How This Bearing Fits the Spindle Load Profile

Spindle bearings live under combined radial and axial loads at sustained high speeds, where even minor geometric deviation compounds into chatter marks on the workpiece. The FAG INA 7010-E-2RSD angular contact ball bearing P4 precision sealed addresses this with a single-row angular contact structure designed to carry simultaneous thrust and radial loads without internal skidding. The reinforced internal design indicated by the E suffix increases load-carrying capacity within the same envelope, which matters when spindle designers push speed limits without upsizing the housing bore.

We routinely cross-check application parameters — speed, preload requirement, operating temperature — against the full suffix string before confirming interchange. That habit has kept our customers' spindles running true across machining centers, grinding heads, and robotic joint actuators.

Operating Conditions That Push Sealed Angular Contacts to Their Limits

In sealed spindle positions, contamination ingress is the silent failure driver. Coolant mist, metallic fines from adjacent grinding operations, and humidity fluctuations all attack bearing internals through inadequate seals. The 2RSD contact seal on this bearing creates a physical lip barrier on both sides, trading a small friction penalty for meaningful contamination exclusion in environments where open bearings would require elaborate external sealing. [NEED_CITE: seal friction versus contamination exclusion trade-off in angular contact spindle bearings]

Temperature rise from seal friction must be balanced against the grease fill's thermal ceiling. At sustained high speeds, internal heat generation elevates raceway temperature, and if the grease cannot tolerate that thermal window, base oil separation accelerates. Installation fit also plays a role — an interference fit that is too tight on the inner ring reduces internal clearance below the design intent, compounding friction heat from the seals themselves.

Decoding the Specifications That Actually Matter

The E suffix signals a reinforced internal design within FAG's nomenclature — larger ball complement or optimized raceway curvature that raises dynamic load capacity without changing the 50 × 80 mm envelope. In spindle applications, this translates to higher rigidity under cutting forces.

The 2RSD seal designation indicates contact-type seals on both sides. Unlike non-contact shields (2Z), contact seals maintain lip pressure against the inner ring land, providing superior exclusion of liquid coolant and fine particulate at the cost of higher friction torque. For spindles operating in wet machining environments, this trade-off is almost always justified.

P4 precision class corresponds to ISO 492 tolerance class 4, governing both dimensional accuracy and running accuracy. On a spindle nose bearing, P4 running accuracy keeps radial runout within limits that prevent chatter at high surface speeds. Substituting a P6 or P0 bearing in this position would introduce measurable runout that manifests as surface finish defects on machined parts. [NEED_CITE: ISO 492 tolerance class influence on spindle runout and surface finish]

The single-row angular contact arrangement means this bearing must be paired with a mating bearing (typically in back-to-back or face-to-face configuration) to provide axial location in both directions. The contact angle — tied to the E internal design — governs the ratio of axial to radial stiffness and should be matched precisely when replacing one bearing in an existing paired set.

The Hidden Cost of Ignoring the Suffix String

Procurement teams matching only the base number 7010 routinely receive bearings with wrong clearance, wrong seal type, or lower precision class. A standard CN clearance bearing installed where the spindle design assumed a specific preload will either run too loose — causing vibration and poor surface finish — or too tight, generating heat that degrades grease within days. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Counterfeit bearings compound the problem. Soft inner rings that pass visual inspection deform under preload, destroying running accuracy before the spindle reaches operating speed. Cloned QR codes redirect verification to fake confirmation pages, so the counterfeit passes casual receiving inspection. The result is premature cage failure, thermal binding, or catastrophic spindle seizure — each carrying downtime costs that dwarf the bearing price many times over. ISO 281 life calculations assume genuine material and geometry; counterfeit internals invalidate the entire fatigue life model.

Why Procurement Engineers Confirm Orders Through Our Channel

We source the FAG INA 7010-E-2RSD angular contact ball bearing P4 precision sealed through authorized distributor channels, meaning every shipment carries traceable documentation back to the manufacturer's production facilities. Our team verifies the full suffix string — contact angle, seal type, precision class, cage material — before confirming any cross-brand interchange, so substitutions maintain the design intent rather than just the bore and OD.

For regional distributors and MRO teams managing multi-brand inventories, we provide complete cross-reference comparison across SKF, NSK, FAG, TIMKEN, NTN, and KOYO — matched on clearance, cage, and precision suffixes, not just base numbers. When a machine builder specifies an SKF equivalent, we confirm whether the seal suffix, contact angle, and tolerance class align before proposing the interchange. Country-of-origin documentation accompanies every shipment for import compliance, and our QR code verification pathway lets your receiving team confirm authenticity through official brand apps before the bearing leaves the storeroom.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot traceability tied to this specific P4 precision production run
• QR code verification pathway via the official FAG/INA app to confirm authenticity before installation
• Third-party runout inspection confirming P4 running accuracy on the 50 mm bore before dispatch
• Country-of-origin documentation for customs clearance and buyer verification in destination markets
• HS code and import support documentation package prepared for your freight forwarder

Storage, Handling & Mounting

• Keep 2RSD sealed bearings in original packaging until mounting — premature opening exposes the contact seal lips to dust that scores the seal surface before the spindle ever runs
• Store at stable temperature away from direct sunlight to preserve the factory grease fill inside the sealed 7010-E-2RSD units
• Use clean gloves when handling P4 precision raceway surfaces — fingerprints introduce moisture that initiates corrosion under the seal where inspection cannot detect it
• For paired installations, mark the angular contact bearing orientation before mounting; single-row angular contacts carry axial load in one direction only, and reversed installation eliminates axial location entirely
• Avoid washing sealed bearings — the 2RSD contact seals are designed to retain the factory grease fill, and solvent flushing degrades the lubricant the bearing will run on for its entire service life

Start Your Technical Review

Share your spindle operating parameters — speed range, preload requirement, operating temperature, and mating bearing designation — so we can confirm the FAG INA 7010-E-2RSD angular contact ball bearing P4 precision sealed matches your application without suffix compromise. If you are replacing an existing bearing by OEM equipment number, send us the nameplate data and we will cross-verify the full designation including contact angle and seal specification before quoting.

Frequently Asked Questions

Q: How do I verify the authenticity of FAG/INA bearings through official channels? A: Genuine FAG/INA bearings carry a QR code on the packaging that links to the manufacturer's official verification app. Scanning the code confirms the batch number, production facility, and distribution path. We source exclusively through authorized distributor channels, so the traceability chain remains unbroken from factory to your receiving dock. Counterfeit bearings increasingly use cloned QR codes that redirect to fake verification pages — always confirm the app itself is downloaded from the brand's official website, not from a link on the packaging.

Q: What does the 2RSD seal suffix mean compared to other seal codes? A: The 2RSD suffix in FAG nomenclature designates contact-type seals on both sides of the bearing. This differs from non-contact shields (such as 2Z) that provide an air gap seal with lower friction but less contamination exclusion. The contact seal lip maintains physical pressure against the inner ring land, making 2RSD suitable for environments with coolant mist or fine metallic particulate. Always confirm seal suffix equivalency when cross-referencing between brands, as seal codes are not standardized across manufacturers.

Q: How do I select the correct precision class for spindle applications? A: Spindle nose bearings typically require P4 or higher precision to maintain running accuracy under high-speed operation. P4 corresponds to ISO 492 tolerance class 4, governing both bore/OD dimensional tolerance and radial runout. Substituting a lower class such as P6 introduces runout that manifests as chatter on machined surfaces. The correct precision class depends on spindle speed, required surface finish, and the machine builder's original specification — we verify the class during cross-reference matching to prevent downgrade substitutions.

Q: What should I check when cross-referencing angular contact bearings across brands? A: Beyond the base designation, you must align the contact angle, seal type, cage material, and precision class. A 25° contact angle bearing substituted where the spindle design assumed 15° will alter axial stiffness and preload distribution, potentially causing thermal binding. Cage material differences affect speed capability and vibration behavior. We compare all suffix parameters simultaneously across the six major brands we source — SKF, NSK, FAG, TIMKEN, NTN, and KOYO — so the interchange maintains engineering intent, not just dimensional fit.

Q: How do clearance and preload interact in paired angular contact installations? A: Single-row angular contact bearings are installed in pairs with controlled preload — light, medium, or heavy — to establish axial rigidity. The internal clearance of each bearing, combined with the mounting arrangement (back-to-back or face-to-face), determines the operating preload once the shaft reaches thermal equilibrium. Specifying standard clearance where the design assumed a preloaded pair leads to looseness and vibration; excessive preload generates heat that shortens grease life. We review the full pairing specification when sourcing matched sets.

Secure Your Spindle Bearing Supply Send us your application parameters or OEM equipment number, and our engineering desk will confirm full suffix alignment before issuing your quotation.
