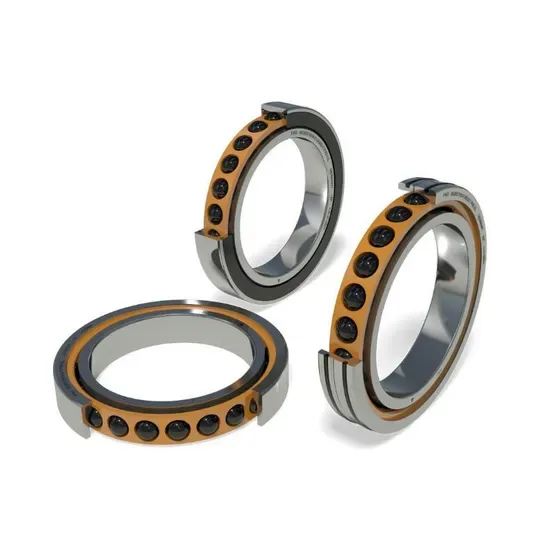

FAG Xc7000-C-T-P4s Angular Contact Ball Bearing P4 Precision

Batch-Traceable Precision Spindle Bearings — Every FAG Xc7000-C-T-P4s angular contact ball bearing ships with lot-level documentation linking back to the manufacturer's authorized distributor channel, so procurement teams can confirm origin before customs clearance.

Technical Specifications

Suffixes Xc, T, and P4s as a combined designation are not individually resolved here; confirm exact cage variant and precision subclass against the current FAG spindle bearing catalog before finalizing order documentation.

Application Suitability

What a 15° Contact Angle Really Means at 90,000 rpm

The FAG Xc7000-C-T-P4s angular contact ball bearing generates less friction heat than 25° or 40° variants under predominantly radial loads, which is exactly why C-suffix spindles dominate high-speed grinding heads.

Grinding spindles routinely operate above 60,000 rpm with light radial-dominant loads. When a purchasing engineer substitutes a B-suffix (40°) bearing because it was available sooner, the higher contact angle introduces unnecessary axial preload stress and additional friction heat at the raceway-ball interface. The result is not an immediate seizure — it is a gradual thermal drift that pushes the spindle outside its dimensional tolerance window, producing out-of-spec parts until the next quality audit catches it. Counterfeit bearings with cloned markings and soft inner rings make this worse, because they fail unpredictably rather than degrading on a measurable curve [NEED_CITE: spindle thermal drift failure modes per ISO 15243].

Matching High-Speed Spindle Load Profiles

Small-bore 10 mm angular contact bearings in the 7000 series sit at the front or rear of high-frequency internal grinding spindles, where the load spectrum is overwhelmingly radial with minor axial thrust from the grinding wheel feed. The FAG Xc7000-C-T-P4s angular contact ball bearing pairs its 15° contact angle with a lightweight fabric-reinforced phenolic cage, keeping centrifugal forces on the cage pockets manageable at extreme speeds. We typically cross-check the OEM spindle drawing against our interchange database before quoting, confirming that the 15° angle and P4 tolerance match the original specification rather than defaulting to whatever base number appears on the nameplate.

Speed, Heat, and Lubrication Boundaries

At the speed range where 10 mm bore spindle bearings operate, even small deviations in grease fill volume or oil-air mixture ratio produce measurable temperature differences at the outer ring. The open design of this bearing means lubrication responsibility falls entirely on the spindle builder's system — oil-air minimum quantity lubrication is standard for this size class. Ambient temperature inside a machine tool enclosure during summer shifts can push the bearing's thermal equilibrium higher than catalog assumptions, making the C3 clearance conversation relevant if the spindle housing runs tight [NEED_CITE: oil-air lubrication parameters for high-speed angular contact spindle bearings].

Decoding the Fabric Phenolic Cage and P4 Precision

The fabric-reinforced phenolic cage (T suffix position) is the preferred choice for high-speed spindle applications because its low density reduces centrifugal loading on the cage pockets while providing adequate lubricant retention in the cage material itself. Compared to machined brass cages, phenolic cages run cooler and quieter but are more sensitive to contaminated lubricant — a single metal particle trapped in the cage pocket can initiate surface distress on the ball. The P4 precision class ensures that bore and outside diameter tolerances, along with running accuracy, meet ISO 492 Class 4 requirements, which translates directly to lower vibration signatures at operating speed and tighter dimensional control of the machined workpiece.

The Downtime Cost of an Unverified Precision Bearing

A spindle rebuild using a bearing that claims P4 on the box but measures P5 on the bore typically survives initial run-in but produces chatter marks on the workpiece within the first production shift. The cost is not the bearing itself — it is the scrapped batch of aerospace turbine blades, the emergency weekend teardown, and the recalibration cycle that takes the machine offline for days. ISO 15243 classifies these failures under geometric and material deviations that standard visual inspection cannot catch [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Sourcing through an unverified trading company removes the documentation chain that would otherwise trace the bearing back to an authorized distributor lot.

How We Verify Before We Ship

Our procurement process starts at the authorized distributor level, not at open-market trading desks. Each FAG Xc7000-C-T-P4s angular contact ball bearing we supply carries a lot number that traces back through the distributor chain with corresponding conformity documentation. Our cross-reference database aligns contact angle, cage material, and precision class simultaneously — not just the base designation — so a substitution from SKF, NSK, or NTN is genuinely equivalent in the field. When origin documentation is required for import clearance, we provide it before the shipment leaves, not after the container is held at the port.

Documentation & Authenticity

• Supplier Certificate of Conformity tied to the specific batch lot of each FAG Xc7000-C-T-P4s angular contact ball bearing
• Third-party dimensional inspection report confirming bore, OD, and width tolerances within P4 limits before dispatch
• QR code verification pathway compatible with the brand's official authentication application for anti-counterfeit confirmation
• Country-of-origin certificate and HS code documentation prepared for import customs clearance in destination markets
• Material test certificate for the bearing steel confirming chemical composition and heat treatment condition

Storage, Handling & Mounting

• Keep the FAG Xc7000-C-T-P4s angular contact ball bearing in its original sealed packaging until the moment of spindle assembly; phenolic cages absorb moisture if exposed to humid shop-floor air for extended periods
• Store flat in a temperature-stable environment between 5 °C and 25 °C to prevent condensation inside the packaging, which can compromise the open bearing's corrosion protection coating
• Handle with lint-free clean gloves only; skin oils on the 10 mm bore surface create localized corrosion pits that show up as vibration spikes at operating speed
• Mount using a controlled induction heater set to a maximum of 80 °C on the inner ring only; overheating degrades the dimensional stability of the P4-precision bore
• Verify shaft and housing seat tolerances against the spindle builder's drawing before pressing; a shaft seat that is even slightly undersized allows inner ring creep at 60,000+ rpm

Starting Your Spindle Bearing Inquiry

Share your spindle operating parameters — speed range, load direction, lubrication method, and target dimensional accuracy — so we can confirm that the FAG Xc7000-C-T-P4s angular contact ball bearing matches your application or identify a more suitable variant. If you have the OEM equipment number, send it over for a full cross-reference check against our interchange database. We will return a quotation with confirmed batch availability, lead time, and the documentation package that your import process requires.

Frequently Asked Questions

Q: How do I verify the authenticity of a high-precision angular contact ball bearing like this one? A: Use the brand's official mobile application to scan the QR code on the bearing packaging and cross-check the lot number against the manufacturer's database. We supply the complete traceability chain from authorized distributor to your facility, so each verification step has a corresponding document.

Q: Can I substitute this FAG bearing with an equivalent from SKF, NSK, or NTN? A: Cross-brand interchange is possible, but the match must cover contact angle, cage material, and precision class together — not just the base number. We provide a full comparison chart showing the equivalent designation from each brand so you can confirm field compatibility before committing to the substitution.

Q: What is the difference between P4 and P4A precision in angular contact spindle bearings? A: P4A specifies tighter running accuracy (bore and outside diameter runout) beyond the standard P4 dimensional tolerances. Whether your spindle requires P4A depends on the workpiece tolerance class — high-precision grinding applications often do, while general-purpose high-speed spindles typically perform well within standard P4.

Q: How do I choose between 15° and 25° contact angles for my spindle application? A: A 15° contact angle (C suffix) suits predominantly radial loads at high speeds, generating less friction heat. A 25° angle (AC suffix) handles higher axial loads but produces more heat at the same speed. Match the angle to your spindle's actual load profile, not just the catalog default.

Q: What documentation comes with the shipment? A: Each order includes a Certificate of Conformity with batch traceability, dimensional inspection data, country-of-origin documentation, and HS code information for customs clearance. Additional material certificates are available upon request for regulated industries.

Request Your Spindle Bearing Quote Send us your application parameters or OEM equipment number to begin the technical review. Contact our engineering desk for cross-reference verification and documentation support.
