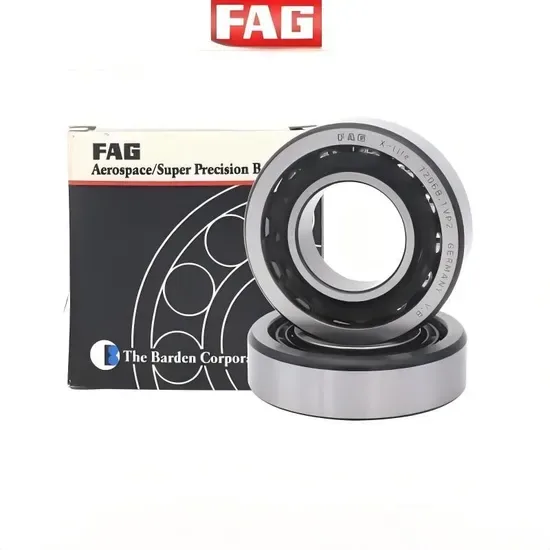

FAG B7010-C-2RSD-T-P4S-UL Angular Contact Ball Bearing 50x80x16mm

Traceable Channel Sourcing — Every FAG B7010-C-2RSD-T-P4S-UL ships with full batch records traceable to the manufacturer's authorized distributor network, confirming origin before it reaches your spindle.

Technical Specifications

* Suffixes T and UL are decoded from manufacturer literature; verify specific cage material grade and preload force against the current FAG spindle catalog before finalizing an order.

Application Suitability

What a Suffix Oversight Costs on a CNC Spindle

A mismatched precision suffix on a 50 mm bore spindle bearing can ruin surface finish before the operator notices anything wrong.

I once traced a vibration complaint in a São Paulo CNC shop back to a single B7010 replacement. The buyer had matched the base number correctly but accepted a standard-precision substitute without the P4S running accuracy. The spindle hit thermal drift within the first shift, and milled aluminum parts started falling outside tolerance on surface roughness [NEED_CITE: thermal displacement effects on CNC spindle accuracy under ISO 230]. The machine required a full teardown, new bearing set, and re-qualification. Total unplanned downtime eclipsed the cost of the original precision bearing several times over. That pattern repeats across the supply chain whenever procurement treats suffix strings as optional decoration.

Spindle Load and Speed Profile for the B7010 Series

The FAG B7010-C-2RSD-T-P4S-UL fits the mid-range spindle envelope where combined radial and moderate axial loads meet sustained high-speed rotation. The 15° contact angle keeps friction heat low compared to higher-angle variants, which matters when a grinding head runs continuous duty near its speed limit. Paired in UL arrangement, these bearings share preload evenly across the set so axial stiffness stays consistent as thermal expansion progresses through the morning warm-up cycle. We typically guide buyers through load and speed verification against OEM equipment numbers before confirming the cross-reference, which prevents the common mistake of matching bore and OD while ignoring the speed-rating implications of cage material and seal friction.

Thermal Growth, Seal Drag, and Contamination Defense

Spindle environments expose bearings to coolant mist, metallic fines, and thermal cycling that compounds hour after hour. The 2RSD contact seals on this FAG B7010-C-2RSD-T-P4S-UL block particulate ingress without requiring external sealing hardware, but contact-type seals do introduce drag that adds to the thermal budget [NEED_CITE: sealed vs open spindle bearing temperature rise under grease lubrication]. At P4S precision, even a slight temperature overshoot can push running accuracy outside the tolerance window that the machine tool builder designed for. Shops running oil-air or oil-jet lubrication sometimes prefer open bearings to eliminate seal friction, yet they accept the contamination risk that comes with external sealing responsibility. The trade-off depends on your specific coolant exposure, maintenance interval discipline, and whether the spindle housing already provides labyrinth protection upstream.

Decoding the Engineering Behind Each Suffix

The C designation sets a 15° contact angle, which strikes a balance between axial load capacity and low-friction high-speed behavior — a standard choice for main spindles where radial cutting forces dominate and axial thrust is secondary. The P4S class goes beyond standard P4 dimensional tolerance by adding tighter running accuracy limits on inner and outer ring raceways, directly reducing vibration amplitude at the tool tip [NEED_CITE: ISO 492 tolerance class definitions for radial bearings]. Universal matching with light preload (UL) means any two bearings from the same production lot can be stacked back-to-back or face-to-face and will produce a predictable, documented preload force — essential when a spindle rebuild demands matched sets rather than individually selected pairs. The 2RSD seals are filled at the factory with a high-performance grease formulated for spindle duty, making these units maintenance-free for their grease life, though the sealed design also means re-lubrication is not an option once that grease degrades.

The Hidden Expense of a Wrong B7010 Substitution

Correct specification paired with a genuine FAG source delivers predictable L10 life under ISO 281 calculation assumptions. A counterfeit or cross-reference error, by contrast, introduces unknowns that no life formula can account for — soft inner rings that brinell under preload, cloned markings that bypass visual inspection, or a cage material that cannot survive the speed-temperature envelope [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Premature spindle failure rarely stops at the bearing itself; secondary damage to the shaft journal, housing bore, and adjacent seal surfaces can push a rebuild into a full replacement. Warranty voidance on the machine tool side typically follows once non-original or unverified components are discovered inside the spindle cartridge. Sourcing through documented authorized channels eliminates this exposure before the first bearing leaves the shelf.

How We Keep Your Spindle Rebuild on Track

Every FAG B7010-C-2RSD-T-P4S-UL we ship traces back through an authorized distributor chain with lot-level documentation, so you can confirm the bearing's journey from manufacturer to your receiving dock. Our cross-reference database checks not just the base number but the full suffix string — contact angle, seal type, cage, precision, and preload must all align before we recommend an interchange to NSK, SKF, or NTN equivalents. When import paperwork requires country-of-origin confirmation or specific HS code declarations, our documentation team prepares the package in advance so customs clearance does not delay the rebuild. Engineering support is available for buyers who need application-level guidance on preload selection, mounting fits, or thermal growth compensation specific to their spindle model.

Documentation & Authenticity

• Certificate of Conformity tied to the specific FAG B7010-C-2RSD-T-P4S-UL batch number, confirming manufacturing origin and tolerance class
• QR code verification pathway through the official FAG/INA app to validate authenticity before mounting
• Material certificate documenting steel grade and heat treatment compliance for the bearing rings and rolling elements
• Dimensional inspection report confirming P4S running accuracy on inner and outer ring raceways
• Country-of-origin documentation prepared for import customs clearance in destination markets
• Batch and lot traceability records linking each bearing set to the authorized distributor invoice chain

Storage, Handling & Mounting

• Keep each FAG B7010-C-2RSD-T-P4S-UL in its factory-sealed packaging until the moment of spindle assembly; early opening exposes the 2RSD contact seals to ambient moisture and shop-floor particulate
• Store matched UL sets together and never split the pairing marks; mixing bearings from different lots destroys the factory-matched preload relationship
• Use clean, lint-free gloves during handling to prevent fingerprint corrosion on the P4S-precision raceways, where even microscopic surface disruption affects running accuracy
• Mount using induction heating limited to 110 °C maximum on the inner ring only; overheating degrades the pre-packed grease inside the sealed 2RSD cavity
• Follow the OEM spindle manual for axial clamping force on the locknut, as overtightening exceeds the UL light preload design and accelerates thermal growth
• Do not attempt to re-lubricate; the 2RSD seal design is filled for life with FAG spindle grease and any breach of the seal voids the contamination barrier

Request a Spindle Bearing Quotation

Share your spindle model number, operating speed, and load conditions so we can verify the FAG B7010-C-2RSD-T-P4S-UL selection against your application parameters. If you are replacing an existing bearing, provide the full marking string from the original unit — including all suffixes — for an exact cross-reference match. Ask for the complete documentation package including origin confirmation and batch traceability before shipment. Our team will respond with confirmed availability, lead time, and pricing structured for your order volume.

Frequently Asked Questions

Q: How can I verify the authenticity of a FAG B7010-C-2RSD-T-P4S-UL before installation? A: Scan the QR code on the bearing packaging using the official FAG/INA verification app. Authentic units return a match to the manufacturer's database with batch, origin, and production date data. We supply the full traceability chain from authorized distributor to your dock, so any discrepancy is caught before the bearing enters your spindle.

Q: What does the P4S precision class mean in practice compared to standard P4? A: P4S maintains ISO class 4 dimensional tolerances and adds stricter limits on running accuracy — specifically inner and outer ring raceway runout. For spindle applications, this tighter running accuracy translates to lower vibration at the tool tip and improved surface finish on machined parts.

Q: How do the 2RSD contact seals compare to open or shielded spindle bearings? A: The 2RSD seals provide non-removable contact sealing on both sides, blocking coolant mist and metallic fines without requiring external seal hardware. The trade-off is slightly higher friction compared to open designs, which generate less heat but depend entirely on the spindle housing's own sealing system. Shielded (non-contact) designs sit between the two, offering moderate protection with lower drag but less defense against liquid contamination.

Q: What cross-reference equivalents exist for the B7010-C-2RSD-T-P4S-UL across other major brands? A: Cross-referencing a precision spindle bearing requires matching the 50×80×16 mm envelope, the 15° contact angle, sealed configuration, P4S-level precision, and UL preload simultaneously. Base-number matches alone are insufficient — clearance, cage material, and seal type must all align. Share your full specification with our team and we will generate a verified interchange comparison across the SKF, NSK, NTN, and KOYO product ranges.

Q: Why does the preload arrangement matter when ordering replacement spindle bearings? A: The UL designation specifies universal matching with light preload, meaning these bearings are ground to produce a defined axial preload when paired in any back-to-back or face-to-face stack. Substituting a bearing with a different preload class — or worse, a non-universal single bearing — changes the axial stiffness of the entire spindle, affecting cutting accuracy and potentially causing thermal runaway at operating speed.
