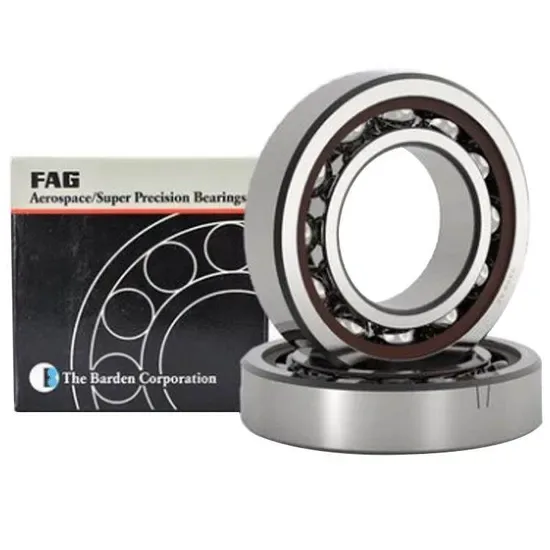

FAG B71902-Gt-P4s Angular Contact Ball Bearing P4 Precision

Authorised-Channel Sourcing — Every FAG B71902-Gt-P4s angular contact ball bearing ships with batch-level traceability back to the manufacturer's production facilities, backed by documentation packages that satisfy customs audits in regulated markets.

Technical Specifications

The suffix segments "Gt" and the trailing "s" in P4s could not be cross-verified against the current manufacturer catalogue; their exact functional meaning should be confirmed before finalising a purchase order.

Application Suitability

When a 40° Contact Angle Saves a Spindle from Scrap

Selecting the correct contact angle prevents axial drift that destroys surface finish on precision-machined parts.

A machining centre in the Pearl River Delta replaced its original spindle bearings with units that matched the base bore and OD but carried a 15° contact angle instead of 40°. Under heavy axial cutting loads the spindle drifted axially, producing chatter marks that scrapped an entire batch of aerospace fittings. The bearing itself survived, yet the downstream cost ran into five figures. Mismatches like this surface constantly when buyers cross-reference only the numeric portion of a designation and overlook the suffix that locks in contact angle and preload class [NEED_CITE: angular contact bearing contact angle selection and axial stiffness].

Matching the Bearing to High-Speed Spindle Duty

The FAG B71902-Gt-P4s angular contact ball bearing pairs a 15 mm bore with a 28 mm OD in a thin-section profile, keeping the rotating mass low so centrifugal forces on cage and rolling elements stay manageable at elevated speeds. Its 40° contact angle delivers the axial stiffness that spindle designers need when facing interrupted cuts or multi-axis contouring loads. In our cross-reference work we frequently see buyers substitute an equivalent bore-OD match from another brand without confirming the contact angle, ending up with a bearing that handles radial loads fine but deflects axially under thrust. We flag that risk before a sample ships, not after a spindle is torn down.

Thermal and Lubrication Realities in Precision Spindles

Spindle housings reach thermal equilibrium only after warm-up cycles, and differential expansion between shaft and housing can squeeze internal clearance to zero if the bearing was not specified with thermal growth in mind. At sustained high speed, grease shear in a sealed arrangement may raise operating temperature enough to shorten relubrication intervals, while oil-air systems demand open or shielded variants that allow external flow. The 40° contact angle generates higher friction torque than a 15° alternative at the same speed, making lubricant selection and cooling strategy equally important as the bearing itself [NEED_CITE: angular contact bearing thermal equilibrium and lubrication regime at high speed]. Mounting practice also matters: cold-press fitting a 15 mm bore risks brinelling the raceway, whereas controlled induction heating preserves the P4 running accuracy the spindle was designed around.

Decoding What the Suffix Stack Actually Controls

The "B" prefix in the designation signals a 40° contact angle, giving the bearing its thrust-carrying capacity and defining how paired arrangements share axial loads. The "719" series places this unit in the thin-section angular contact family, where reduced cross-section trades some load rating for lower inertia and tighter envelope dimensions. P4 precision meets ISO 492 class 4 tolerances, holding bore, OD, and running accuracy within bands tight enough for spindle applications where even minor radial runout shows up as visible witness lines on finished surfaces. The single-row configuration means axial load must be managed by pairing or by external preload mechanisms, a detail that catches out maintenance crews replacing one half of a back-to-back set with a stand-alone unit. Cage material and seal configuration, governed by the remaining suffix segments, determine whether the bearing suits grease-for-life or circulating-oil environments.

What an Unverified Substitute Really Costs

Installing a bearing with incorrect preload or a lower precision class may not trigger immediate failure; instead it produces gradual surface-finish degradation that operators attribute to tool wear or programming errors. By the time vibration monitoring flags the issue, the spindle shaft may already have suffered fretting damage that demands a full rebuild. ISO 15243 classifies such outcomes under installation and operational errors rather than manufacturing defects, leaving the end user to absorb repair costs and unplanned downtime [NEED_CITE: ISO 15243 rolling bearing failure classification]. Counterfeit units with soft inner rings compound the problem, because hardness checks on receipt are rare and the first sign of trouble arrives only after the spindle has been running for days.

How Our Sourcing Process Reduces Specification Risk

Every inquiry we handle starts with the application parameters — load spectrum, speed range, operating temperature, and mounting envelope — not just the bare part number. We cross-reference across SKF, NSK, FAG, TIMKEN, NTN, and KOYO catalogues simultaneously, aligning clearance, cage material, and precision suffix so the substitute truly matches the original intent. Batch-level documentation follows the shipment from the authorised distributor channel to your receiving dock, and we provide QR code verification pathways through the brand's official application so your quality team can confirm authenticity independently. For import-sensitive markets, country-of-origin certificates and HS code guidance travel with the commercial invoice, removing customs delays that push projects past deadline.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the specific production batch of each FAG B71902-Gt-P4s unit
• Third-party runout inspection report confirming P4 running accuracy prior to dispatch
• QR code verification pathway via FAG's official mobile application for on-site authenticity checks
• Country-of-origin documentation formatted for customs clearance in regulated import markets
• Material certificate tracing ring and rolling element steel back to the originating mill heat number

Storage, Handling & Mounting

• Retain the sealed factory packaging until the spindle is ready for assembly; early exposure to humid workshop air risks surface corrosion on the P4-precision raceways of this 15 mm bore bearing.
• Use lint-free nitrile gloves when handling the 28 mm OD outer ring; fingerprint acids etch microscopic corrosion paths that manifest as spalling under high-speed operation.
• Apply controlled induction heating to the inner ring rather than cold-press fitting; the thin-section profile of the 719 series leaves minimal interference margin and brute force can distort the bore.
• If pairing multiple units in a back-to-back or face-to-face arrangement, keep the factory match marks aligned and verify preload after clamping to preserve the intended axial stiffness.
• For open-type variants circulating oil-air lubrication, flush the spindle housing before first start-up to remove assembly residues that would otherwise contaminate the 40° contact angle raceway grooves.

Start the Specification Conversation

Share your spindle speed profile, expected axial thrust, and operating temperature range so we can confirm whether the B71902-Gt-P4s designation fully covers your application or whether a variant with verified Gt and P4s suffixes better matches the OEM intent. If you are replacing an existing bearing, send the equipment nameplate number and we will cross-reference across all six major brands, returning a comparison that covers contact angle, precision class, and preload in a single table.

Frequently Asked Questions

Q: How can I verify that a FAG B71902-Gt-P4s bearing is genuine before installing it? A: Scan the package QR code using FAG's official mobile application, which cross-checks the batch against the manufacturer's production records. We also supply a Certificate of Conformity tied to the specific lot number, and our team can walk your quality department through visual checks for common counterfeit indicators such as soft inner rings and cloned markings.

Q: What does the 40° contact angle mean for my spindle compared to a 15° or 25° variant? A: A 40° contact angle provides higher axial load capacity and stiffer thrust response, making it suitable for applications where cutting forces push the shaft axially. The trade-off is slightly higher friction torque at speed, which must be managed through appropriate lubrication and cooling strategy.

Q: Can I substitute this bearing with an equivalent from NSK, SKF, or NTN? A: Cross-referencing is possible, but a match must cover more than bore, OD, and width. The contact angle, precision class, cage material, and preload all need to align. We provide a side-by-side comparison table across the six brands we source, flagging any suffix differences that could affect field performance.

Q: What precision class does P4 correspond to in ABEC terms? A: ISO P4 roughly corresponds to ABEC 7 in the Annular Bearing Engineers Committee system, though the two standards measure slightly different parameter sets. For spindle applications, confirming running accuracy against the ISO 492 class 4 table is the more reliable route.

Q: Which suffix segments in B71902-Gt-P4s require manufacturer catalogue confirmation? A: The "Gt" segment and the trailing "s" in "P4s" could not be independently verified against publicly available FAG catalogues at the time of writing. We recommend confirming their exact functional meaning — such as cage material variant or special running accuracy band — through the manufacturer's technical department or an authorised distributor before placing a bulk order.

Confirm Your Spindle Specification Today Send us your OEM equipment number or operating parameters, and receive a cross-reference comparison with full documentation within one business day.
