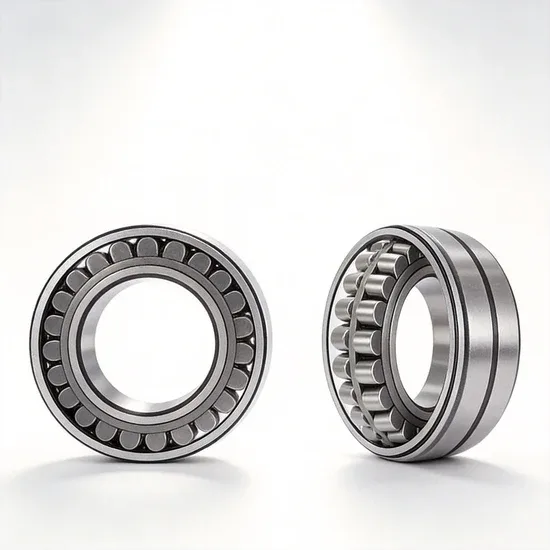

SKF 22216E Spherical Roller Bearing Wholesale Supplier

Authorized channel sourcing — Each 22216E spherical roller bearing shipment traces back through verified distributor networks with matching lot codes.

Technical Specifications

The E suffix denotes a reinforced internal design; confirm full suffix string including clearance and cage code with the manufacturer's current catalog before finalizing the order.

Application Suitability

What Reinforced Internals Actually Change on a Vibrating Screen

The E suffix redistributes contact stress across more roller ends, delaying spalling under cyclic shock loads.

On vibrating screens running continuous circular motion, bearing loads alternate between pure radial and combined axial-radial dozens of times per second. Standard internal geometries concentrate stress at roller edges, initiating surface fatigue well before the calculated L10 life [NEED_CITE: stress concentration at roller ends in spherical roller bearings under oscillating loads]. Counterfeit units with soft inner rings and cloned markings fail even faster, sometimes seizing within a single shift. Matching the base designation alone is never sufficient when the internal design variant directly governs load zone width and roller end guidance.

How the 22216E Fits the Loads You Cannot See on a Nameplate

Vibrating screens and crusher eccentric shafts impose load spectra that standard catalog ratings do not fully capture. Peak shock loads during material feed surges can momentarily double the nominal radial force, while misalignment from frame deflection adds an axial component the shaft was never designed to carry. The reinforced internal geometry of the 22216E spherical roller bearing widens the effective load zone, spreading those transient peaks across a larger roller complement rather than letting edge-loading initiate micro-cracks. We regularly cross-check the application envelope against OEM equipment numbers so the selected variant aligns with the actual load spectrum, not just the static rating printed on a data sheet.

Thermal Expansion, Clearance, and the Mistake That Seizes Bearings in Weeks

Ambient temperatures on a Sulawesi mining site once exceeded 40°C, and the inner ring of a spherical roller bearing expanded enough to consume its entire operating clearance. Within three months the bearing seized solid because the original specification called for standard CN clearance where C3 or even C4 would have accommodated the thermal gradient between shaft and housing. Radial loads, rotational speed, and ambient heat all shift the working clearance window, and ignoring any one of them turns a correct base designation into a field failure [NEED_CITE: thermal expansion effects on bearing internal clearance in high-temperature environments]. Lubrication choice compounds the issue; grease-filled open bearings in dust-laden crusher houses require frequent re-lubrication intervals, while oil-bath systems demand seal integrity that open designs simply cannot provide.

Decoding the E Suffix and Its Practical Consequences

The E suffix on this 22216E spherical roller bearing signals a reinforced internal design with optimized roller profiles and an enlarged roller complement. This geometry increases the number of contact points between rollers and raceways, distributing radial loads more evenly and raising the fatigue threshold under heavy or shock loading conditions. Because the bearing is supplied open, contamination protection depends entirely on the housing seal arrangement chosen by the equipment builder or maintenance team. The cylindrical bore simplifies press-fit mounting with induction heating, but it also means there is no taper-driven residual clearance adjustment available as there would be with a K-suffix counterpart. Understanding whether the dynamic or static load rating dominates your application determines whether the reinforced design delivers its full life advantage or merely matches a standard variant.

When a Correct Part Number Still Causes Unplanned Downtime

Procurement teams often assume that matching the base designation guarantees interchangeability, yet clearance class, cage material, and precision suffixes vary between production batches and brands. A spherical roller bearing with standard CN clearance installed in a high-temperature dryer roll will lose internal play as the shaft expands, leading to thermal binding and cage fracture long before the calculated service interval [NEED_CITE: bearing failure modes related to clearance loss per ISO 15243]. Counterfeit units compound the problem with case-hardened rings that appear dimensionally correct but lack core hardness, spalling under loads the genuine part would absorb without visible wear. ISO 281 life calculations assume correct clearance, adequate lubrication, and uncontaminated raceways; violate any one of those assumptions and the theoretical life collapses regardless of the brand stamped on the outer ring.

What We Verify Before a Single Unit Leaves the Warehouse

Every 22216E spherical roller bearing we ship originates from authorized distributor channels where batch lot codes remain intact from factory to freight forwarder. Our cross-reference database aligns clearance class, cage material, and precision suffix across SKF, NSK, FAG, TIMKEN, NTN, and KOYO so a substitution never introduces a hidden mismatch. We provide country-of-origin documentation and HS code support for import clearance, removing the guesswork that stalls shipments at customs. For maintenance teams replacing bearings by OEM equipment number rather than catalog designation, our engineering desk confirms whether the original specification included suffixes that the replacement must replicate. Dimensional inspection reports and material certificates travel with the documentation package, giving receiving inspectors everything needed to close out a quality audit on the spot.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the specific batch lot of your 22216E spherical roller bearing shipment
• Material certificates confirming bearing steel grade (GCr15 or 100Cr6) with heat number traceability
• Third-party dimensional inspection reports covering bore diameter, outside diameter, and width tolerances
• Country-of-origin documentation prepared for import customs declarations in your destination market
• QR code verification pathway linking the physical bearing markings to the manufacturer's authentication system
• HS code guidance to accelerate customs clearance and avoid tariff misclassification delays

Storage, Handling & Mounting

• Keep the 22216E in its original sealed packaging until the moment of installation; premature exposure to humid air initiates corrosion on the open raceways within days
• Store cartons horizontally in a climate-controlled area below 60% relative humidity to preserve the factory-applied rust preventive on the exposed cylindrical bore and outer ring surfaces
• Use clean lint-free gloves when handling the bearing; fingerprint acids etch the polished raceway surfaces and become initiation points for micro-pitting under heavy radial loads
• Mount the cylindrical bore using induction heating to the manufacturer-recommended temperature range; cold press-fitting risks brinelling the reinforced roller complement
• Confirm housing seal integrity before commissioning, as the open design relies on external labyrinth or lip seals to exclude crusher dust and vibrating screen slurry from the roller paths
• Record the mounting date and initial lubrication volume on the housing nameplate to establish a re-lubrication baseline for the next scheduled maintenance window

Request a Verified Quotation

Share your operating parameters — load magnitude, rotational speed, ambient temperature range, and housing seal type — so we can confirm whether the 22216E spherical roller bearing matches your application or whether a clearance or cage variant is warranted. If you are replacing an existing bearing by OEM equipment number, provide that reference and we will cross-check the full suffix string against our interchange database. Specify your destination port or warehouse so we can include accurate lead time, country-of-origin documentation, and import compliance details in the quotation.

Frequently Asked Questions

Q: How do I verify the authenticity of a 22216E spherical roller bearing before installation? A: Check the manufacturer's QR code or holographic label using the brand's official mobile application, then cross-reference the batch lot number on the packaging against the Certificate of Conformity. Counterfeit bearings often replicate QR codes that redirect to cloned web pages rather than the manufacturer's verified server. We supply every unit with traceable documentation from authorized distributor channels so the verification chain remains unbroken.

Q: What does the E suffix mean, and how does it differ from CC or CA designs? A: The E suffix indicates a reinforced internal design with an optimized roller complement and improved load distribution. CC and CA variants use different cage configurations and roller guidance systems. When cross-referencing between brands, matching the base number alone is insufficient; the internal design suffix must also align with the load spectrum of your application to avoid premature fatigue.

Q: Should I specify C3 clearance instead of CN for high-temperature vibrating screen applications? A: In environments where ambient or process heat causes significant shaft expansion, C3 or even C4 clearance compensates for the thermal growth and prevents internal preload that would otherwise consume operating clearance. We review your temperature profile and mounting arrangement before recommending a clearance class, rather than defaulting to the standard CN that may appear in a generic catalog table.

Q: Can I substitute a different brand for the 22216E if my preferred brand is unavailable? A: Cross-brand substitution is possible when the replacement matches not only the base designation but also the internal design suffix, clearance class, cage material, and bore type. Our interchange database covers SKF, NSK, FAG, TIMKEN, NTN, and KOYO, flagging any suffix discrepancies before the order ships.

Q: What documentation accompanies a bulk order for import clearance? A: Each shipment includes a Certificate of Conformity, material certificates with heat number traceability, dimensional inspection reports, and country-of-origin documentation. We also provide HS code guidance to prevent tariff misclassification at your destination port.

Secure Your 22216E Spherical Roller Bearing Supply Send us your application parameters or OEM equipment number, and our engineering desk will return a matched specification with full documentation and lead time. Contact: sourcing@bearing-authority.com
