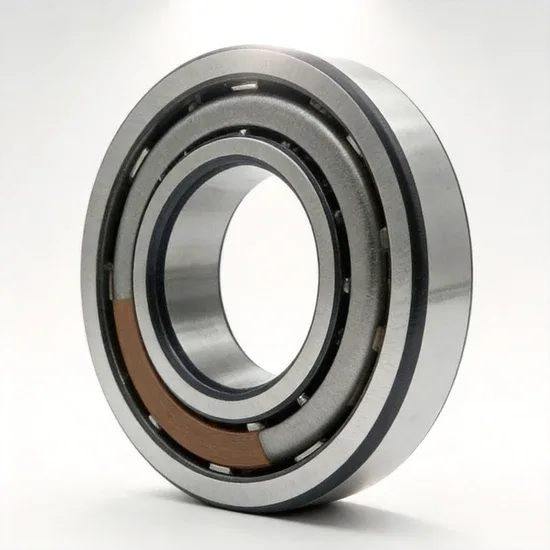

SKF 7014 CD/HCP4ADGA Angular Contact Ball Bearing P4A Precision Wholesale

Authorized Channel Sourcing — Every SKF 7014 CD/HCP4ADGA shipped carries a traceable batch record linked to the manufacturer's official production lot documentation.

Technical Specifications

Note: Certain suffix combinations such as H and CP4A within the full designation string require verification against the official SKF catalog for precise manufacturing variant confirmation.

Application Suitability

What Happens When Spindle Bearings Ignore the Suffix String

The suffix is the bearing in precision angular contact applications.

I've seen standard-grade angular contacts pressed into a high-speed spindle in Riyadh because the purchasing team matched the base number and stopped there. The machine shop ignored the P4A precision requirement and the preload class entirely. Within weeks, thermal drift locked the shaft, scrapped a batch of aerospace housings, and the operator blamed the bearing brand. A significant share of premature spindle failures traces back to this exact pattern — buyers treating suffixes as optional notes rather than load-carrying specifications [NEED_CITE: angular contact bearing suffix impact on spindle thermal stability].

Matching 70 mm Spindle Demands to the Correct Internal Geometry

The SKF 7014 CD/HCP4ADGA is configured for spindle environments where radial loads dominate but axial stiffness cannot be compromised. Its 15° contact angle keeps friction heat generation lower than higher-angle variants during sustained high-rpm operation, which matters when thermal growth at the spindle nose must stay within micrometers. When procurement teams source through our authorized distributor channels, we verify that the clearance class, cage material, and precision suffix all align with the OEM equipment specification — not just the base designation.

Thermal Growth, Lubrication Limits, and Mounting Precision

Spindle bearings at this size class operate in a narrow window between adequate preload stiffness and excessive heat generation. The 15° contact angle reduces axial friction compared to 25° or 40° alternatives, but it demands correct preload pairing to prevent shaft float under cutting forces. Oil-air or oil-mist lubrication is typical for this application envelope; grease lubrication risks thermal runaway above the bearing's speed capability. Mounting must use controlled induction heating or hydraulic methods — cold pressing risks brinelling the raceway and destroying P4A running accuracy before the spindle ever starts [NEED_CITE: precision spindle bearing mounting best practices ISO standards].

Decoding the Engineering Inside the Suffix String

The CD designation specifies a 15° contact angle with an optimized internal geometry that distributes ball-raceway contact stresses more evenly under combined loading. This geometry directly reduces the friction coefficient at high rotational speeds, keeping the spindle thermal equilibrium stable during extended cutting cycles. The P4A precision class meets ISO 492 Class 4 dimensional tolerances while adding tighter running accuracy requirements — critical for minimizing spindle runout that would otherwise transfer into workpiece surface finish defects. The GA suffix indicates universal matching with light preload, meaning any two bearings from the same production batch can be paired back-to-back or face-to-face without selective fitting, and the resulting preload falls within the light range suited to high-speed, moderate-load spindle duty.

The Downtime Cost Hidden Behind a Wrong Suffix

Correct specification paired with a verified genuine source protects against unplanned spindle rebuilds that take machines offline for days. A wrong clearance class or missing preload suffix causes either thermal seizure from excessive preload or chatter marks from insufficient stiffness — both classified under ISO 15243 failure modes as mounting or application errors rather than bearing defects [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Counterfeit bearings with soft inner rings and cloned QR codes compound this problem, passing visual inspection but failing catastrophically under spindle loads. The warranty voidance and scrapped workpiece costs from a single failure event far exceed the unit price difference of sourcing through a verified channel.

How We Source and Verify Before Shipment

Every SKF 7014 CD/HCP4ADGA we supply originates from authorized distributor channels with full batch traceability documentation. We provide cross-brand interchange comparison — matching SKF designations against NSK, FAG, and NTN equivalents — with clearance, cage material, and precision suffix all verified, not just the base number. Our team reviews application parameters including load spectrum, speed range, and operating temperature before confirming suitability. Country-of-origin documentation accompanies each shipment for import compliance, and pre-shipment dimensional verification confirms P4A running accuracy before the bearing leaves our facility.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot traceability linked to SKF production records for this 7014 CD/HCP4ADGA set
• QR code verification pathway via SKF official mobile applications for end-user authenticity confirmation
• Third-party runout inspection confirming P4A running accuracy on matched pair sets before dispatch
• Country-of-origin documentation and HS code details prepared for import clearance in destination markets
• Material certificates covering ring and ball steel grade verification

Storage, Handling & Mounting

• Keep the matched DGA pair set sealed in original packaging until the moment of mounting; early opening risks contamination and loss of factory preload pairing marks on this universal-matched configuration
• Store the 7014 CD/HCP4ADGA in climate-controlled conditions away from vibration sources that could cause false brinelling on the P4A-finished raceways
• Use clean, lint-free gloves when handling; fingerprint acids on the 15° contact angle raceway surfaces initiate corrosion pits visible only after spindle run-in
• Mount using controlled induction heating to the inner ring only; cold pressing risks damaging the optimized CD internal geometry and destroying P4A running accuracy
• Verify shaft and housing tolerances match the light preload GA specification before assembly; loose fits negate the factory-matched preload entirely

Request Technical Review Before Ordering

Share your spindle application parameters — speed range, radial and axial load estimates, and operating temperature — so we can confirm this designation matches your duty cycle. If you have an OEM equipment number, provide it for cross-reference verification against the six major brand catalogs. Request the documentation package including country-of-origin confirmation before placing your bulk order. Confirm batch availability and lead time for your required quantity.

Frequently Asked Questions

Q: How do I verify SKF bearing authenticity on the 7014 CD/HCP4ADGA? A: Scan the QR code on the bearing packaging using SKF's official mobile application to confirm production batch traceability. We also supply batch and lot documentation that links back to the manufacturer's production records, providing a secondary verification layer beyond the QR code alone.

Q: Why must clearance, cage material, and precision suffix all match when cross-referencing? A: The base designation only identifies bore size and basic type. Substituting a different clearance class causes thermal binding or excessive play; a different cage material alters speed capability; a lower precision grade increases runout. All three must align for the bearing to function correctly in the spindle application.

Q: What does P4A precision mean compared to ABEC 7 or ABEC 9? A: P4A meets ISO 492 Class 4 dimensional tolerances with additional running accuracy specifications that exceed standard P4. It is broadly comparable to ABEC 7 in dimensional control but adds tighter runout requirements specifically developed for machine tool spindle applications.

Q: What do the CD and GA suffixes mean for this angular contact bearing? A: CD specifies a 15° contact angle with optimized internal geometry for reduced friction at high speeds. GA indicates universal matching capability with light preload, allowing flexible pairing configurations while maintaining stiffness appropriate for high-speed spindle duty.

Q: What lubrication approach is recommended for high-speed spindle bearings at this precision class? A: Oil-air or oil-mist lubrication systems are standard for this application envelope, providing controlled lubricant delivery without the churning heat that grease generates at high rpm. Re-lubrication intervals depend on the specific spindle speed and duty cycle parameters.

Secure Your Spindle Bearing Supply with Verified Documentation Submit your application parameters or OEM equipment number for technical review and cross-reference confirmation.
