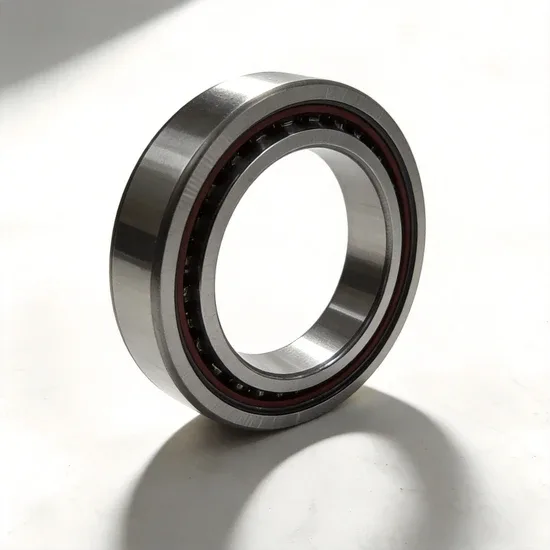

FAG B71919-E-T-P4S-UL Angular Contact Bearing 95mm Wholesale

Traceable Supply Chain — Every FAG B71919-E-T-P4S-UL angular contact ball bearing ships with authorized distributor documentation and batch-level origin records for customs and quality audits.

Technical Specifications

Certain suffix elements in this designation require confirmation against the manufacturer's latest catalog before final specification lock.

Application Suitability

What Happens When Precision Suffixes Get Ignored on Spindle Bearings

A single overlooked suffix letter can destroy a spindle rebuild in under one week.

I learned this the hard way years ago when a Vietnamese client purchased B-series angular contact bearings for a high-speed spindle rebuild. Their engineer matched the bore, OD, and contact angle correctly but skipped the UL pairing suffix entirely — ordering two singles instead of a factory-matched set. The spindle ran hot within days, the cage cracked, and the entire batch was scrapped. That incident is why the FAG B71919-E-T-P4S-UL angular contact ball bearing designation must be read as a complete package, not just the base number. Procurement teams sourcing replacements frequently stop at the bore and contact angle, missing that precision class, internal design, and preload specifications all live in those trailing characters. [NEED_CITE: spindle bearing failure caused by incorrect preload matching]

How This Bearing Fits High-Speed Spindle Demands

The 95 mm bore and 40° contact angle position this bearing for combined radial-axial loads typical in machine tool spindle front and rear support positions. The E suffix indicates an optimized internal geometry that distributes contact stresses across a wider raceway arc, which matters when spindle speeds generate significant centrifugal force on the rolling elements. The FAG B71919-E-T-P4S-UL angular contact ball bearing reaches ISO tolerance class 4 running accuracy, keeping radial and axial runout within the tight envelope that precision grinding and milling spindles demand. When we cross-reference competitor equipment against OEM spindle drawings, we verify that contact angle, cage type, and precision class all align simultaneously — not just the base dimension code.

Thermal and Load Conditions in Spindle Environments

Spindle bearings face a punishing combination of high rotational speed, moderate radial load, and significant axial thrust from cutting forces. The 40° contact angle provides the axial rigidity needed to resist tool deflection during heavy cuts, while the single-row configuration keeps friction heat lower than double-row alternatives. Temperature management is critical here — thermal expansion of the shaft can close internal clearance rapidly if the wrong preload class is installed. Lubrication strategy matters equally: oil-air mist systems are standard for this speed range, and the bearing must be compatible with the spindle's delivery method. [NEED_CITE: angular contact bearing preload selection for machine tool spindles]

Decoding the Engineering Behind the Designation

The B designation confirms a 40° contact angle, which maximizes axial load capacity at the cost of slightly higher friction compared to 15° or 25° alternatives. The E suffix signals optimized internal design — modified raceway curvatures that improve load distribution and reduce edge stress concentrations under combined loading. P4S precision class sits above standard P4 in running accuracy, meaning tighter control on bore runout and outer ring raceway deviation — essential for maintaining surface finish quality in grinding operations. The arrangement and preload suffixes in this designation govern how the bearing behaves when mounted as a set, directly controlling the spindle's stiffness and thermal equilibrium point.

The Financial Impact of Specification Errors

Correct selection paired with verified sourcing protects against cascading failures that extend far beyond the bearing itself. A mismatched preload class can cause thermal seizure that damages the spindle housing bore — turning a bearing replacement into a multi-week housing reconditioning project. Bearings that pass dimensional inspection but contain soft inner rings from unverified sources fail unpredictably, often destroying adjacent components. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] Counterfeit angular contact bearings with cloned markings but inferior cage materials typically fail within the first thermal cycle, voiding spindle warranties and triggering unplanned production stops that dwarf the original bearing cost.

Sourcing Confidence for Critical Spindle Positions

We procure the FAG B71919-E-T-P4S-UL angular contact ball bearing through authorized distributor channels with full batch traceability back to the manufacturer's production records. Our cross-reference database matches not only bore and OD but simultaneously verifies contact angle, cage material, and precision suffix alignment across all six major brands. Every shipment includes country-of-origin documentation suitable for import compliance, and we provide QR code verification pathways through the brand's official authentication application. For maintenance teams replacing bearings by OEM equipment number, we confirm suffix-level interchange compatibility before quoting. [NEED_CITE: authorized bearing distributor traceability requirements]

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot traceability linked to authorized distribution records
• Third-party dimensional inspection confirming running accuracy consistent with P4S class before dispatch
• Material certificate verifying ring and rolling element steel composition
• Country-of-origin documentation prepared for customs and import regulatory compliance
• HS code classification support for angular contact ball bearings in destination markets

Storage, Handling & Mounting

• Retain factory sealed packaging until the moment of spindle assembly to prevent contamination of precision-ground raceways in this P4S class bearing
• Store the 95 mm bore bearing horizontally in climate-controlled conditions to avoid raceway brinelling from static vibration
• Use clean lint-free gloves during handling — fingerprint acids on the outer ring can initiate corrosion before the spindle even runs
• For matched set installations indicated by the UL suffix, keep all components sealed together and mount in the sequence marked at the factory to preserve preload calibration
• Verify shaft and housing seat roundness and surface finish against P4 mounting tolerances before pressing or heating the inner ring into position

Request a Technical Review Before You Order

Share your spindle operating parameters — speed range, axial thrust profile, lubrication method, and target preload — so we can confirm this designation matches your application requirements. If you are replacing bearings by OEM equipment number, provide the drawing reference and we will verify suffix-level cross-reference alignment. Request the full documentation package including origin confirmation before committing to shipment.

Frequently Asked Questions

Q: How do I verify that a FAG angular contact ball bearing is genuine? A: Authentic FAG bearings can be verified through the brand's official mobile application using the QR code or serial marking on the packaging. We source exclusively through authorized distributor channels and provide batch traceability documentation that links each bearing to its production lot.

Q: Why must contact angle, cage material, and precision class all match when cross-referencing brands? A: Matching only the base bore and OD while ignoring these parameters leads to field failures. A 40° contact angle bearing installed where 25° was specified will generate excess friction heat. A standard cage in a high-speed spindle position may fracture under centrifugal load. Cross-referencing must align all suffix-level specifications simultaneously.

Q: What is the difference between ISO P4 and P4S precision for spindle applications? A: P4S adds enhanced running accuracy controls beyond standard P4 dimensional tolerances. This tighter runout specification is particularly important for grinding spindles and precision milling heads where surface finish quality depends directly on bearing rotational accuracy.

Q: What does the UL suffix indicate for this bearing designation? A: The UL suffix relates to the bearing's arrangement and preload specification when installed as a matched set. This suffix governs how multiple bearings behave together under load and determines the spindle's axial stiffness characteristics. We recommend confirming the exact preload value against the manufacturer's current catalog before ordering.

Q: Can I substitute a different clearance class if the exact match is unavailable? A: Clearance substitution in precision angular contact spindle bearings is generally not advisable. The preload built into matched sets is calibrated for specific thermal and load conditions. Deviating from the specified clearance class alters contact angles under load and can cause thermal instability during operation.

Secure Your Spindle Bearing with Verified Documentation Send us your application parameters or OEM equipment number to initiate technical review and confirm designation-level compatibility.
