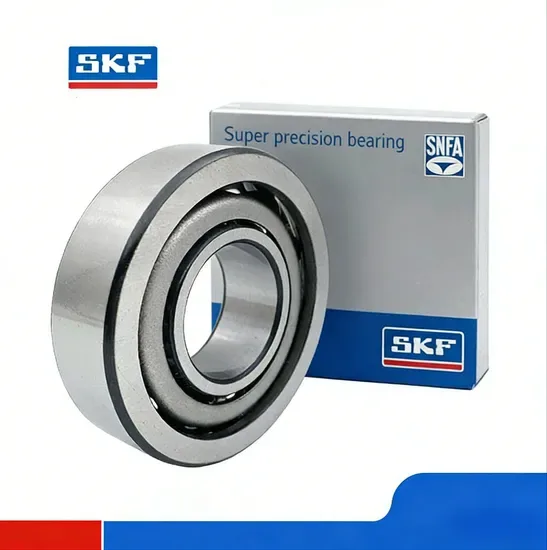

SKF 7005 ACD/P4ATBTC Angular Contact Bearing P4 Spindle

Authorized Channel Sourcing — Every SKF 7005 ACD/P4ATBTC we ship carries batch-level traceability back to the manufacturer's distribution records, with Certificate of Conformity documentation included.

Technical Specifications

Note: The suffix segment "ATBTC" could not be independently decoded against public SKF catalogs at the time of this listing and should be confirmed directly with the manufacturer's technical documentation before finalizing order specifications.

Application Suitability

What Happens When a Spindle Bearing Suffix Gets Overlooked

Precision class and contact angle together determine whether a spindle runs true or burns out.

I keep a set of 7005 angular contact bearings on my desk — the wrong ones. A buyer matched the base number but ignored the contact angle and precision suffixes entirely. The replacements arrived with a 25° contact angle where the spindle design called for 15°, and standard tolerance where P4 was specified. Within a week of operation, chatter marks appeared across every workpiece the machine touched. The shop scrapped an entire production lot before tracing it back to the bearing swap. Situations like this repeat far more often than procurement teams expect, and the root cause is almost always a suffix mismatch rather than a defective product [NEED_CITE: angular contact bearing failure modes in machine tool spindles per ISO 15243].

How This Bearing Meets Spindle Operating Profiles

The SKF 7005 ACD/P4ATBTC angular contact ball bearing is built around a 25° contact angle that distributes combined radial and axial loads across the raceway in a way that favors stiffness over pure speed ceiling. On a grinding spindle subject to axial thrust from the wheel head and radial deflection from cutting forces, that balance matters. We once cross-referenced a buyer's OEM spindle drawing that specified a 15° variant and flagged the mismatch before the order went through — the corrected units ran without issue for the full maintenance interval.

Spindle Loads, Speed, and What Thermal Growth Demands

Machine tool spindles generate significant heat at operating speed, and thermal expansion along the shaft changes the internal geometry of the bearing stack. A 25° contact angle on this 7005 ACD/P4ATBTC provides higher axial rigidity compared to 15° alternatives, which helps maintain preload stability as the spindle reaches thermal equilibrium. Lubrication choice — typically oil-air or oil mist for P4 class spindle bearings — must be matched to the limiting speed and the sealing arrangement on the housing. Improper grease fill or contamination ingress through a worn labyrinth seal can degrade running accuracy rapidly [NEED_CITE: spindle bearing lubrication requirements at P4 precision class].

Decoding the Suffixes That Define Performance

The ACD designation tells you two things at once: a 25° contact angle and an optimized internal geometry that SKF engineers for combined load scenarios. P4 precision sits above P5 and P6 in the ISO 492 tolerance framework, meaning tighter bore-to-OD concentricity and running accuracy that keeps spindle runout within acceptable limits for finish machining. Single-row angular contact bearings like this one carry axial load in one direction and must be paired — the arrangement suffix on your specific order determines whether they mount back-to-back, face-to-face, or in tandem. Getting the pairing geometry wrong reverses the load path and can collapse the internal clearance under preload.

When a Shortcut on Sourcing Becomes a Spindle Rebuild

A matched set installed with incorrect preload or counterfeit components does not simply wear out — it can score the spindle housing, damage the shaft journal, and void the machine tool warranty entirely. Unplanned downtime on a CNC grinding center costs far more than the bearing set itself, especially when the failure cascades into workpiece scrap and missed delivery deadlines. The ISO 15243 failure classification framework identifies mounting errors and incorrect bearing selection as distinct categories from material fatigue, and a significant share of premature spindle failures fall into these preventable groups [NEED_CITE: premature bearing failure classification and root cause analysis per ISO 15243].

What We Verify Before It Reaches Your Dock

Our sourcing process for the SKF 7005 ACD/P4ATBTC begins with authorized distributor channels where each unit's batch number is traceable to the manufacturer's production records. We pull a Certificate of Conformity matched to your order, and we can walk buyers through SKF's own QR code verification tool on a unit-by-unit basis. For cross-reference requests, we match not just the base designation but the contact angle, precision class, and cage type — because a 7005 from another brand is only interchangeable if all three align with your spindle's design requirements. Origin documentation is prepared with each shipment for import compliance.

Documentation & Authenticity

• Supplier Certificate of Conformity (COC) tied to your specific batch of SKF 7005 ACD/P4ATBTC units, with lot numbers traceable to the manufacturing run
• QR code verification walkthrough using SKF's official mobile application to confirm authenticity on receipt
• Material certificate confirming bearing steel grade and heat treatment compliance for P4 precision retention
• Dimensional inspection report verifying bore tolerance, OD tolerance, and running accuracy against ISO 492 class 4 limits
• Country-of-origin documentation prepared per your import jurisdiction requirements, with HS code support

Storage, Handling & Mounting

• Retain original sealed packaging until the moment of mounting — the P4 precision surfaces on this 7005 ACD are vulnerable to dust and moisture contamination that degrades running accuracy before installation even begins
• If multiple units are paired for a spindle stack, keep all factory marking and orientation indicators intact until the assembly sequence is confirmed; misaligned pairing marks will reverse the intended load distribution
• Mount using controlled induction heating for interference fits on the inner ring, keeping temperature within the manufacturer's specified range to avoid altering the P4 dimensional tolerance
• Verify spindle housing bore and shaft journal dimensions before pressing in — a housing out of round will distort the outer ring and eliminate the clearance advantage the P4 class was designed to deliver
• Store horizontally in a climate-controlled environment; the 0.100 kg weight of this bearing makes it susceptible to edge loading and raceway brinelling if left standing vertically on a hard surface

Request a Technical Quote for Your Spindle Application

Share your spindle model number, operating speed range, and the full designation from the bearing you are replacing — including every suffix character. We will return a cross-reference verification and a matched quotation with lead time and documentation package details.

Frequently Asked Questions

Q: What does the ACD suffix indicate on this SKF angular contact ball bearing? A: ACD indicates a 25° contact angle combined with SKF's optimized internal design for combined radial and axial loading. This differs from CD (15°) and B (40°) variants, and substituting between them changes axial stiffness and speed capability.

Q: How can I confirm a SKF 7005 ACD/P4ATBTC is genuine before installation? A: Each unit sourced through authorized channels carries a batch number and QR code that can be verified through SKF's official mobile application. We supply a Certificate of Conformity with traceable lot documentation with every shipment.

Q: What is the practical difference between P4 and P5 precision in spindle use? A: P4 tolerance per ISO 492 provides tighter bore, OD, and running accuracy limits than P5. On a high-speed grinding spindle, the tighter runout translates directly to improved surface finish on the workpiece and reduced vibration at operating speed.

Q: Can I substitute another brand's 7005 bearing in my spindle? A: Only if the substitute matches the base designation, contact angle (25° for ACD), precision class (P4), and pairing arrangement simultaneously. We provide a full cross-brand interchange comparison covering all six parameters before you commit to the substitution.

Q: What pairing arrangements are typical for single-row angular contact bearings in spindles? A: Back-to-back (DB), face-to-face (DF), and tandem (DT) are the standard configurations. The correct arrangement depends on your spindle's load direction, rigidity requirement, and shaft thermal growth profile.

Get Your SKF 7005 ACD/P4ATBTC Spindle Bearing Quotation Send us your OEM equipment number or application parameters — load, speed, and temperature — and we will confirm availability, pricing, and the documentation package your import process requires.
