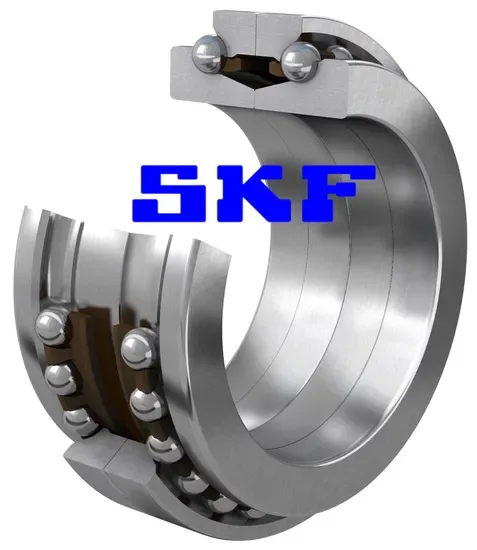

SKF BTM 85 BT/P4CDBA Angular Contact Ball Bearing P4 Precision

Authorized-Channel Traceability — every BTM 85 BT/P4CDBA we ship carries a verifiable batch record linked to the manufacturer's production facilities.

Technical Specifications

Note: Suffixes BTM, BT, and CDBA remain unverified in open catalog data; exact contact angle, preload class, and arrangement must be confirmed against the manufacturer's technical bulletin before finalizing mounting dimensions.

Application Suitability

What a Precision Mismatch Really Costs on a BTM 85 BT/P4CDBA Spindle

A standard-class bearing dropped into a P4 envelope silently destroys workpiece surface finish.

I once watched a buyer in Düsseldorf substitute a P5 thrust bearing for a BTM 85 BT/P4CDBA on a CNC lathe spindle because the bore and outside diameter matched. Within two weeks, chatter marks appeared on every turned surface, the shop scrapped an entire batch of aerospace shafts, and the machine builder refused warranty coverage. The root cause was never the bearing itself — it was a suffix error on the purchase order [NEED_CITE: spindle vibration sensitivity to bearing precision class]. When procurement engineers match only the base numbers and skip the precision suffix, the hidden scrap and downtime costs far exceed any unit price saving.

Matching the BTM 85 BT/P4CDBA to High-Rigidity Spindle Duty

A double direction angular contact thrust bearing in this size segment is almost always paired with a cylindrical roller bearing (NN 30 K series) to carry radial loads while the BTM handles bidirectional axial thrust. The P4 precision class delivers the running accuracy that high-speed grinding and turning spindles demand — any looseness in axial location translates directly into tool chatter and poor surface finish. We cross-check the OEM equipment manual and the existing bearing's laser-etched marking before quoting a SKF BTM 85 BT/P4CDBA, so the replacement matches not only the bore and OD but also the preload and arrangement that the spindle designer originally specified.

Load Spectrum, Speed, and Thermal Reality

Axial thrust on a spindle reverses with every cutting pass; the double-direction design absorbs both thrust vectors without a separate locating bearing. Spindle speeds in this bore range routinely push into high peripheral velocities, generating friction heat that expands the shaft and alters internal clearance. If the grease fill or oil-air lubrication cycle is not matched to the bearing's speed rating, thermal runaway will degrade the cage and raceway contact geometry [NEED_CITE: thermal instability in high-speed angular contact bearings]. Mounting fit and housing rigidity must also be checked — a loose housing bore allows micro-movement that destroys running accuracy faster than any load miscalculation.

Decoding the P4 Class and Double-Row Thrust Architecture

The P4 tolerance grade follows ISO 492 Class 4, sitting between P5 and P2 in the precision hierarchy; it provides noticeably tighter running accuracy than a standard industrial bearing, which is essential for minimizing spindle runout. The double-row angular contact thrust configuration uses two back-to-back single-row contact angles, typically 60°, to carry thrust in both directions while offering high axial rigidity. This rigidity is what prevents the spindle shaft from shifting under interrupted cuts. The CDBA suffix indicates a specific preload and duplex arrangement that must be respected during assembly — swapping to a different preload class changes the contact angle load share and can overheat the bearing within hours.

The Hidden Cost of Wrong Selection or Counterfeit Stock

A soft inner ring from an unverified source will show no visible defect yet fail ISO 15243 surface fatigue limits long before the calculated L10 life [NEED_CITE: counterfeit bearing failure modes per ISO 15243]. Catastrophic spindle seizure can damage the tool holder taper, the drawbar mechanism, and the workpiece still clamped in the chuck. Warranty claims on counterfeit components are universally voided, and the resulting unplanned downtime on a production cell easily dwarfs the purchase price of a genuine, fully traceable bearing.

How We Source and Verify Before Shipment

We procure SKF BTM 85 BT/P4CDBA units through authorized distributor channels, meaning every shipment carries a documented chain back to the manufacturer's warehouse. Our cross-reference database aligns not just the base designation but also clearance, cage material, and precision suffixes — preventing the substitution errors that field failures trace back to. Engineers can request origin identification documents before the goods leave our facility, and we guide buyers through the manufacturer's official QR verification app for an extra layer of confidence at the receiving dock. Batch-level traceability is maintained so that any future field investigation can pinpoint the exact production lot.

Documentation & Authenticity

• Supplier Certificate of Conformity listing the BTM 85 BT/P4CDBA batch and lot number
• Dimensional inspection report verifying P4 class running accuracy parameters before dispatch
• Country-of-origin certificate prepared for customs clearance at destination port
• QR code verification pathway through the manufacturer's official smartphone application
• Material test certificate for the high-carbon chrome steel rings and rolling elements

Storage, Handling & Mounting

• Keep the matched CDBA set sealed in original packaging until the moment of mounting; premature opening risks contamination of the precision-ground raceways
• Store horizontally on a vibration-free shelf in a climate-controlled room to prevent false brinelling on the 85 mm bore
• Use lint-free clean-room gloves during handling — fingerprints on P4-class surfaces leave acidic residue that initiates corrosion
• Mount the double-row thrust bearing only with calibrated induction heating for the outer ring; cold-pressing risks brinelling the high-precision rolling elements
• Follow the manufacturer's preload torque specification for the CDBA arrangement; over-tightening destroys the factory-set axial preload balance

Request a Quotation or Technical Review

Send us the OEM equipment serial number or the existing bearing's full marking string so we can confirm cross-reference alignment. If you have application parameters — cutting forces, spindle speed, lubrication method — our engineering desk will review the selection against L10 life expectations. We can also provide a documentation package preview including origin and batch traceability before you commit to a purchase order.

Frequently Asked Questions

Q: How can I verify that the SKF BTM 85 BT/P4CDBA I receive is genuine? A: Every unit we supply carries a batch code that can be cross-checked through the manufacturer's official mobile app. We also provide a Certificate of Conformity tied to the specific shipment, and we guide you through the QR verification pathway at receiving.

Q: What does P4 precision class mean compared to P5 or standard grade? A: P4 follows ISO 492 Class 4 and delivers tighter dimensional and running accuracy than P5 or standard grades, which is critical for spindle applications where even minimal runout causes tool chatter and poor surface finish.

Q: How do I interpret the CDBA suffix on this bearing? A: CDBA indicates a specific duplex arrangement and preload class. The exact contact angle and preload values should be confirmed against the manufacturer's catalog for your particular machine tool spindle design.

Q: What import documentation do I need for this bearing? A: We provide country-of-origin certificates, HS code guidance, and commercial invoices formatted for customs clearance at your destination port.

Q: Can I substitute another brand if the SKF lead time is long? A: We can provide a cross-brand interchange comparison covering SKF, NSK, FAG, and NTN equivalents, aligned on precision class, arrangement, and preload — not just the base bore and OD numbers.

Request Your SKF BTM 85 BT/P4CDBA Documentation Package Share your OEM equipment number or application parameters, and we will return a technical selection review with batch availability and full traceability documentation. Contact our engineering desk through the inquiry form on this page or email sales@yourcompany.com for immediate support.
