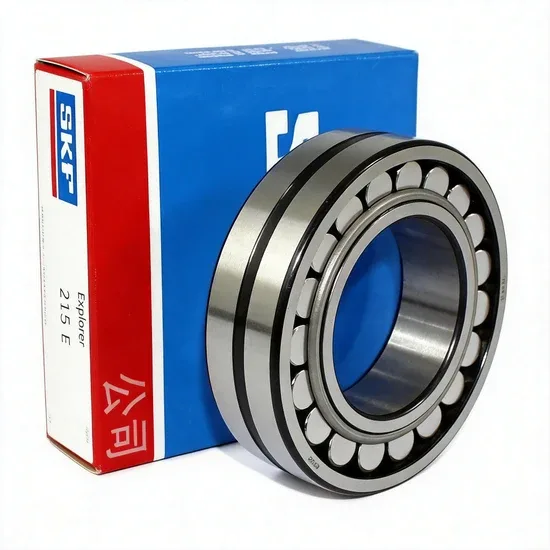

21319EK Spherical Roller Bearing Genuine Wholesale Supplier

Authorized Channel Procurement — every 21319EK we supply ships with full batch traceability back to the manufacturer's production run.

Technical Specifications

Note: Specific cage material variant and clearance class to be confirmed against manufacturer catalog at time of inquiry.

Application Suitability

What Happens When a Tapered Bore Gets Mounted with the Wrong Sleeve

A 21319EK spherical roller bearing with incorrect adapter sleeve preload will destroy itself within weeks, regardless of brand or origin.

I saw this firsthand on a copper screening line in southern Africa. The maintenance crew had the right 21319EK designation on paper, but the previous supplier shipped units without confirming whether the adapter sleeve lock nut torque matched the required axial drive-up distance. The inner ring expanded too far on the taper, compressing the rollers past their operational clearance. Within six weeks, the spherical rollers were spalling, and the shaft journal was scored beyond rework [NEED_CITE: bearing mounting practice per ISO 11357]. The downtime cost eclipsed the bearing price by orders of magnitude. When sourcing a 21319EK spherical roller bearing supplier, the conversation must go beyond the base number and into the mounting envelope.

Matching the 21319EK to High-Vibration Crushing Environments

Vibrating screens and cone crushers subject bearings to continuous shock loads and shaft deflection. The spherical roller geometry in the 21319EK inherently compensates for angular misalignment between the shaft and housing, which is unavoidable when a crusher frame flexes under eccentric rotation. The reinforced internal design designated by the E suffix spreads radial load across a larger contact area between roller and outer ring raceway, directly addressing the heavy, cyclic loading that defines these applications. We cross-check the application parameters — excitation frequency, misalignment angle, radial load magnitude — against the manufacturer's published ratings before confirming the 21319EK as the correct selection, rather than simply shipping the part number on the inquiry.

Load Profile, Thermal Expansion, and Tapered Mounting Considerations

The dominant load on a vibrating screen shaft is radial, with moderate axial components arising from shaft inclination or belt drive offset. Operating temperatures in mining environments frequently climb, and thermal expansion of the shaft changes the interference fit on the tapered bore. The K suffix indicates a 1:12 tapered bore designed for adapter sleeve mounting, where the axial drive-up distance directly controls the residual internal clearance after installation [NEED_CITE: adapter sleeve mounting procedures per bearing manufacturer engineering guidelines]. Insufficient drive-up leaves the inner ring loose on the shaft; excessive drive-up eliminates the running clearance entirely. Lubrication intervals must account for continuous vibration, which tends to channel grease away from the load zone, and contamination from dust or slurry ingress demands reliable housing seals separate from the bearing itself.

Decoding the E and K Suffixes for This Spherical Roller Bearing

The E suffix signals a reinforced internal design with an optimized roller complement and raceway profile, providing enhanced dynamic load capacity compared to standard internal geometry. This matters in applications like crusher eccentric shafts where the radial load approaches the bearing's rating limits. The K suffix confirms the 1:12 tapered bore, meaning this 21319EK is intended for mounting with an adapter sleeve or withdrawal sleeve onto a cylindrical shaft — a practical necessity on long vibrating screen shafts where machining a tapered journal is impractical. The 45mm width ensures adequate roller length and load distribution across the two rows. Together, these design features position this bearing for heavy radial duty in environments where shaft deflection and thermal cycling are constant.

The Downtime Multiplier Behind Wrong Suffix Selection

Correct specification paired with a verified supply chain prevents a cascade of failures that standard warranties do not cover. A 21319EK supplied without the reinforced E internal geometry may survive initial commissioning but will fatigue prematurely under sustained heavy loads, leading to unplanned downtime that idles the entire screening circuit. Counterfeit bearings with soft inner rings — a documented problem in heavy industry supply chains — exhibit raceway deformation far earlier than their marking suggests [NEED_CITE: counterfeit bearing detection and failure patterns per ISO 15243 failure classification]. The cost is never just the replacement bearing; it is the lost production tonnage, the emergency freight, and the damage to downstream equipment when a shaft seizes mid-shift.

How We Support Procurement Engineers Sourcing This Bearing

Our supply chain for the 21319EK runs through authorized distributor channels, so every shipment carries batch-level traceability back to the original production facility. We verify suffix combinations — confirming the E reinforced design and K tapered bore — before generating a quotation, because cross-reference errors at the suffix level are where field failures originate. For import documentation, we provide country-of-origin certificates and HS code classification to clear customs without delay. Our cross-brand interchange database matches not only the base number but also the cage material, clearance class, and internal geometry across SKF, NSK, FAG, TIMKEN, NTN, and KOYO, so substitution decisions are made with full engineering context rather than assumption.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot traceability linked to the 21319EK production run
• QR code verification pathway through official brand applications for confirming authenticity of the reinforced internal design variant
• Third-party dimensional inspection report confirming tapered bore geometry and 45mm width tolerance before dispatch
• Country-of-origin documentation prepared for import compliance across Middle East, Africa, and Latin America jurisdictions
• HS code classification and customs paperwork support included with every shipment of spherical roller bearings

Storage, Handling & Mounting

• Store the 21319EK in its original sealed packaging until the adapter sleeve is staged — premature exposure risks surface corrosion on the tapered bore that compromises interference fit quality
• During mounting, measure the axial drive-up distance on the 1:12 taper to achieve the target residual clearance rather than relying on lock nut torque alone
• Use clean gloves when handling the exposed roller complement; any particulate contamination trapped between the spherical rollers and the outer ring raceway will initiate surface distress under vibration loads
• Ensure the housing seals are installed and functional before the crusher or screen starts, as the open bearing design places contamination protection responsibility entirely on the external sealing arrangement
• For large-quantity storage, keep cartons horizontal and avoid stacking beyond the manufacturer's recommended height to prevent cage deformation from sustained static load

Initiating Your Inquiry

Share your application parameters — radial load, shaft speed, operating temperature range, and housing seal configuration — so we can verify the 21319EK selection and confirm the correct adapter sleeve pairing. If you are working from an OEM equipment number, provide it and we will run a cross-reference check that includes internal geometry and cage material alignment, not just the base designation. Request the documentation package and country-of-origin confirmation early so your import planning proceeds without delay.

Frequently Asked Questions

Q: How do I verify the authenticity of a 21319EK spherical roller bearing before installation? A: Check the QR code on the bearing packaging using the official brand application to confirm the batch number and production origin. Cross-reference the supplier's Certificate of Conformity against that batch number, and inspect the marking on the bearing outer ring for laser-etched characters rather than stamped or painted labels that counterfeiters commonly replicate.

Q: What should I check when cross-referencing the 21319EK between different brands? A: Beyond matching the base number, confirm that the E reinforced internal design and K tapered bore are present in the substitute brand's designation. Also verify that cage material, clearance class, and width dimension align, as a standard internal geometry or cylindrical bore variant will not perform equivalently in heavy-load vibrating applications.

Q: What adapter sleeve is required for mounting the K taper bore on this bearing? A: The specific adapter sleeve size corresponds to the shaft diameter and the bearing's tapered bore dimensions. Provide your shaft diameter and we will confirm the matching sleeve designation, lock nut size, and the recommended axial drive-up distance for proper residual clearance.

Q: What documentation comes with a bulk order of 21319EK bearings? A: Each shipment includes a Certificate of Conformity with batch traceability, dimensional inspection data, country-of-origin documentation, and HS code details for customs clearance. Material certificates are available upon request for projects requiring full metallurgical documentation.

Initiate Technical Review for Your 21319EK Application Send your load, speed, and mounting parameters so we can confirm specification accuracy and prepare a traceable quotation. Contact us through the inquiry form or reach our engineering desk directly for cross-reference verification and documentation requests.
