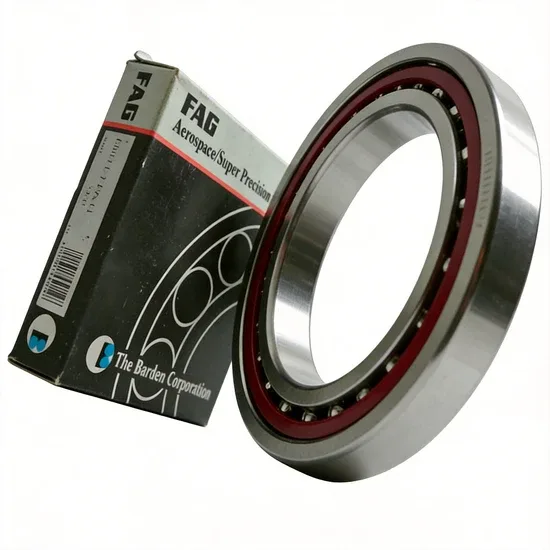

FAG HC7000-C-T-P4S Angular Contact Bearing P4 Precision Wholesale

Traceable Sourcing Channels — Every FAG HC7000-C-T-P4S angular contact ball bearing we quote is backed by distributor-level documentation linking the batch number directly to the manufacturer's production facilities.

Technical Specifications

The HC and T suffixes could not be fully decoded from publicly available catalog data; their exact meaning should be confirmed against the manufacturer's current spindle bearing catalog before final specification lock-in.

Application Suitability

What a Suffix Blind Spot Costs on a 10 mm Spindle Bore

A single overlooked suffix on a P4 spindle bearing can destroy workpiece surface finish within the first production shift.

I watched this play out at a Hannover show when a European rebuild shop sourced standard P0 steel-ball 7000-C units for a high-frequency spindle cartridge. The base number matched. The suffix did not. Within weeks the spindle ran hot, vibration velocity spiked past acceptable thresholds, and the machine was turning scrap on every cycle. The buyer had focused on getting the bore and contact angle right but treated the cage material, precision class, and ball composition as interchangeable. On a 10 mm bore spindle running at high speed, those suffix-level details are the entire engineering decision [NEED_CITE: angular contact ball bearing suffix impact on spindle thermal behavior].

How This Bearing Fits a High-Speed Spindle Cartridge

A 10 mm bore angular contact ball bearing with a 15° contact angle sits in a narrow sweet spot: predominantly radial loading with just enough axial capacity to handle light thrust from tool clamping mechanisms. For motorized spindles in the small-bore range, minimizing friction heat generation is more critical than maximizing axial rigidity, and the 15° angle delivers that balance. The FAG HC7000-C-T-P4S angular contact ball bearing targets exactly this duty profile where thermal growth must stay within the preload tolerance window.

We once cross-referenced a spindle OEM drawing that called for a competing brand's hybrid ceramic variant at this same bore size. The clearance class, cage material, and precision had to align perfectly — not just the base designation — or the replacement would over-preload as the spindle reached operating temperature.

Thermal Growth and Preload Sensitivity at High RPM

Small-bore spindle bearings face a compounding problem: inner ring expansion from shaft heat tightens an already light preload, while outer ring cooling in the housing keeps the raceway gap from opening. The result is a preload curve that climbs faster than operators expect [NEED_CITE: thermal preload drift in high-speed angular contact bearings]. Lubrication choice compounds this — oil-air mist systems keep friction heat lower than grease packing, but they demand sealed supply lines and careful nozzle positioning relative to the cage window. At P4 precision, running accuracy is tight enough that any contamination particle trapped during mounting will show up as a repeatable vibration signature on the first test run.

Decoding the Specifications That Matter Here

The 15° contact angle (C suffix) is the lowest standard angle in the angular contact family, generating less friction heat per revolution than 25° or 40° alternatives. For a 10 mm bore spindle where speed dominates the load spectrum, that thermal advantage translates directly into longer grease life and more stable preload.

P4 precision class meets ISO 492 class 4 requirements for both dimensional accuracy and running accuracy. On a spindle, the running accuracy matters most — bore-to-outer-ring concentricity and raceway roundness control the vibration floor that the cutting tool sees at the workpiece. A P5 bearing at the same bore would allow roughly double the runout tolerance band.

The phenolic resin laminated fabric cage (T suffix, subject to catalog confirmation) is the traditional choice for high-speed spindle bearings in this size range. It rides on the ball set with minimal guidance force, keeps weight low to reduce centrifugal stress, and provides inherent damping that suppresses cage instability harmonics.

Open design means external seals and filtration are the machine builder's responsibility. In spindle cartridges, labyrinth seals with clean oil-air purge are standard practice; the bearing itself contributes no sealing friction.

The Hidden Cost of Wrong Sourcing on Precision Equipment

Correct specification with verifiable provenance versus a price-optimized substitute that skips suffix verification — the cost gap only appears after the machine is running. Unplanned downtime on a CNC machining center waiting for replacement spindle bearings typically dwarfs the original bearing cost many times over. Premature failure modes described in ISO 15243 — surface distress from inadequate film thickness, smearing from cage instability, adhesive wear from preload loss — all trace back to specification or sourcing errors rather than material defects [NEED_CITE: bearing failure mode classification per ISO 15243]. A counterfeit P4 bearing with soft inner rings will pass a casual hardness check on one spot but fail the raceway under load within the first thousand hours.

Why Maintenance Engineers Source Through Us

We pull FAG HC7000-C-T-P4S angular contact ball bearing units through authorized distributor channels, not grey-market aggregators. Every shipment carries batch-level documentation that traces back to the manufacturer's production lot. When a buyer needs to verify authenticity, the QR code pathway connects directly to the brand's official verification app — no third-party intermediary interpreting the result. Our cross-reference database matches on clearance class, cage material, and precision suffix simultaneously, so a substitution from another of the six brands we cover will not introduce a thermal mismatch. For import buyers, we prepare country-of-origin documentation and HS code mapping as part of the standard shipping package, eliminating customs surprises. Technical selection guidance comes from engineers who read the application parameters before quoting, not order-takers matching string characters.

Documentation & Authenticity

• Certificate of Conformity tied to the specific production batch of the HC7000-C-T-P4S units in your order, not a generic product-family document.
• QR code verification pathway via the brand's official mobile app, allowing your receiving inspector to confirm authenticity at the dock before the crate moves to stores.
• Third-party dimensional inspection report confirming P4 running accuracy — bore roundness, outer ring concentricity, and face runout — measured on calibrated equipment prior to shipment.
• Country-of-origin certificate prepared per your destination country's import requirements, supporting customs clearance and preferential tariff claims where applicable.
• Material certificate documenting the steel grade and heat treatment condition of the rings and rolling elements for your quality management system records.

Storage, Handling & Mounting

• Keep the HC7000-C-T-P4S in its original sealed packaging until the spindle cartridge is ready for assembly; early exposure to shop-floor humidity risks corrosion on the P4-finished raceways that no amount of relubrication will correct.
• Handle with lint-free gloves and avoid touching the cage or raceway surfaces — fingerprint residue on a 10 mm bore bearing becomes a contamination source once the spindle reaches operating speed.
• If the spindle design calls for paired mounting, mark the high-point positions on inner and outer rings before pressing to preserve the manufacturer's matched-set alignment.
• Mount using controlled induction heating limited to the inner ring, keeping temperature rise within the range that avoids annealing the phenolic cage or distorting the P4-tolerance bore fit.
• After installation, confirm preload by measuring starting torque or axial displacement against the spindle builder's specification — a P4 bearing at this bore size has very little tolerance for interference-fit over-tightening [NEED_CITE: precision spindle bearing mounting preload verification methods].

Start Your Technical Review

Share your spindle application parameters — operating speed range, radial and axial load estimates, lubrication method, and target L10 life — so we can confirm the FAG HC7000-C-T-P4S angular contact ball bearing is the correct specification for your duty cycle. If you are replacing an existing bearing, provide the OEM equipment number or the full designation printed on the removed unit so we can run a complete cross-reference check including clearance, cage, and precision alignment.

Frequently Asked Questions

Q: What does the HC suffix indicate on this FAG angular contact bearing? A: The HC suffix was not fully decoded from publicly available catalog data for this product listing. It requires confirmation against the manufacturer's current spindle bearing catalog before the specification is locked for production ordering. We recommend requesting the official datasheet for your specific batch to verify the exact meaning.

Q: How does ISO P4 precision compare to ABEC 7 for spindle applications? A: ISO tolerance class P4 and ABMA ABEC 7 cover comparable tolerance bands for dimensional and running accuracy, though the measurement conventions differ slightly between ISO 492 and ABMA Std 20. Both represent the precision level standard for machine tool spindle bearings in this size range.

Q: Why must clearance, cage, and precision suffixes all align during cross-reference? A: Matching only the base designation (e.g., 7000-C) while substituting a different cage material or precision class changes the thermal behavior, speed capability, and preload response of the bearing set. A brass cage and a phenolic cage at the same bore and contact angle have different weight, different guidance characteristics, and different speed limits — any one of which can shift the spindle out of its designed operating window.

Q: What installation precautions are specific to P4 angular contact bearings at small bore sizes? A: At a 10 mm bore, the inner ring wall section is thin, making it sensitive to mounting force and thermal distortion. Induction heating must be controlled to avoid overheating the phenolic cage, and the shaft fit interference must stay within the P4 tolerance window to prevent preload shift. Cold pressing with misaligned tooling can brinell the raceway before the spindle ever turns.

Request Your Spindle Bearing Package

Send us your application data sheet or OEM equipment number, and we will return a technical confirmation with matched cross-reference, availability status, and full documentation scope within one business day.

Contact our engineering team through your established inquiry channel to begin the specification review.
