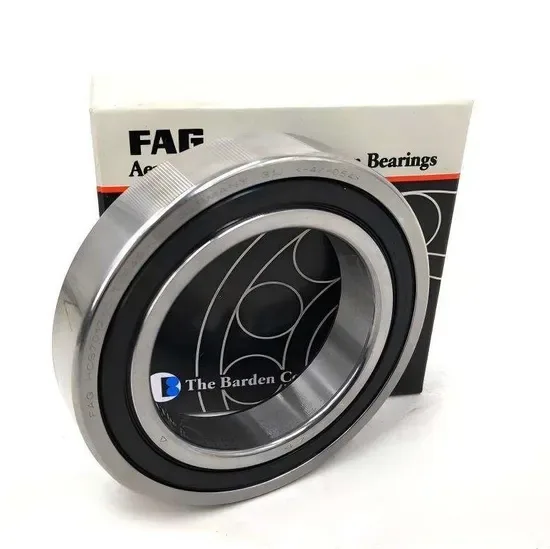

FAG XCB7006-E-T-P4S Angular Contact Bearing P4S Precision

Authorized Channel Traceability — Batch-level documentation accompanies every FAG XCB7006-E-T-P4S angular contact ball bearing we supply, linking each unit back to verified distributor records rather than open-market stock.

Technical Specifications

XCB and T suffixes are specialized designations; their exact definitions should be confirmed against the current manufacturer catalog before final application approval.

Application Suitability

What Happens When a Spindle Bearing Lies About Its Precision Grade

A P4S-classified bearing that fails running accuracy checks will produce out-of-round workpieces before any vibration alarm triggers.

I reviewed a returned set of angular contact bearings from a CNC machining center in Surabaya where the operator blamed thermal drift on the coolant system. The actual culprit was a bearing with cloned packaging and a soft inner ring that deformed under preload, shifting the spindle axis by enough to scrap an entire batch of aerospace bushings. Counterfeit angular contact bearings with cloned QR codes and substandard raceway hardness now circulate widely through unverified traders [NEED_CITE: counterfeit bearing infiltration in industrial supply chains], and the damage rarely shows up until the machine is cutting metal at full speed. A genuine FAG XCB7006-E-T-P4S angular contact ball bearing sourced through authorized channels eliminates this risk at the point of procurement, not after a week of troubleshooting.

Matching P4S Running Accuracy to Spindle Demands

Machine tool spindles demand more than basic dimensional precision — they require controlled running accuracy under operational preload and speed. The P4S designation on the FAG XCB7006-E-T-P4S angular contact ball bearing adds a running accuracy specification on top of standard ISO class 4 tolerances, addressing the exact failure mode where a bearing meets dimensional checks but still causes chatter marks on finished surfaces. When we cross-reference this model against equivalent offerings from other brands, we verify not just bore and OD but the running accuracy suffix, cage material, and contact angle alignment so the substitution performs identically in the spindle housing.

Thermal and Load Conditions Inside a Grinding Spindle

A typical internal grinding spindle runs at sustained high speed with combined radial and axial loading from wheel contact forces. The reinforced internal design (E suffix) increases the load-carrying capacity of the FAG XCB7006-E-T-P4S angular contact ball bearing without enlarging the envelope dimensions, which matters when thermal expansion inside the spindle housing leaves minimal clearance margin. Lubrication in these applications is usually oil-air or oil mist to manage friction heat [NEED_CITE: high-speed spindle bearing lubrication methods], and any contamination from degraded seals or particulate ingress accelerates raceway wear in ways that show up as surface finish defects long before catastrophic failure. Mounting requires controlled preload — typically via spacer sleeves or spring-loaded nuts — to maintain stiffness without exceeding the thermal limits of the contact zones.

Reading the Suffix Stack on This Bearing

The E suffix indicates a reinforced internal geometry with optimized ball complement and raceway curvature, improving dynamic load capacity over standard designs in the same dimensional series. The P4S precision class goes beyond conventional P4 by imposing stricter running accuracy limits, which is the parameter that directly governs workpiece roundness in spindle applications. The 7006 series designation places this bearing in the ISO 15 dimension series 70, meaning a 30 mm bore with a 55 mm outer diameter and 13 mm width — proportions optimized for compact, high-speed spindle noses where axial space is constrained but radial stiffness must remain high. At 0.100 kg, the low rotating mass reduces the gyroscopic moments that cause ball skidding at elevated speeds [NEED_CITE: gyroscopic effects in high-speed angular contact bearings].

The Expense Hidden Behind a Bargain Spindle Bearing

Sourcing an angular contact bearing on price alone introduces failure modes that ISO 15243 classifies under material fatigue, smearing, and corrosion — all of which appear prematurely when the bearing was never genuine to begin with. A single unplanned spindle teardown on a production grinding machine costs more in lost output than a year's supply of verified bearings [NEED_CITE: cost of unplanned downtime in CNC machining operations]. Wrong precision class installation — such as fitting a P5 where P4S was specified — causes runout that no amount of machine calibration can compensate for, leading to warranty voidance on the spindle assembly itself. Genuine FAG XCB7006-E-T-P4S angular contact ball bearings with full traceability documentation remove these hidden variables from your maintenance budget.

How We Reduce Procurement Risk on Precision Bearings

Every FAG XCB7006-E-T-P4S angular contact ball bearing we ship carries batch-level documentation that traces back through authorized distributor channels, not secondary market aggregators. Our cross-reference database matches not just the base designation but the clearance, cage, and precision suffixes across SKF, NSK, FAG, TIMKEN, NTN, and KOYO so you can substitute without guessing. When your OEM manual calls out a spindle bearing by equipment number rather than bearing designation, we reverse-lookup the original specification and confirm whether this model or an alternative better fits your operating conditions. We provide country-of-origin documentation and HS code support for import clearance, because precision bearings stuck at customs help no one. Engineering selection guidance is included with every inquiry — not as an upsell, but as a baseline check that catches mismatched contact angles and preload errors before the purchase order is issued.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot numbers traceable to authorized FAG distributor records for each XCB7006-E-T-P4S shipment
• Third-party dimensional and running accuracy inspection reports confirming P4S compliance before dispatch
• QR code verification pathway compatible with official brand authentication apps to validate each unit on receipt
• Country-of-origin certificates and HS code documentation prepared for import compliance across Southeast Asian and Middle Eastern customs jurisdictions
• Material certificates covering raceway and ball steel specifications for the specific production batch supplied

Storage, Handling & Mounting

• Keep the FAG XCB7006-E-T-P4S in its original sealed packaging until the moment of spindle assembly; early exposure to workshop humidity compromises the factory-applied corrosion inhibitor on the precision-ground raceways
• Store flat in a temperature-stable environment away from vibration sources, as P4S-class running accuracy can be affected by brinelling from nearby stamping presses or heavy equipment
• Use lint-free gloves when handling the bearing; fingerprint acids on the 30 mm bore surface create localized corrosion that manifests as chatter marks during high-speed grinding
• Mount using controlled axial preload methods specified by the spindle OEM — spacer ground to calculated thickness or spring-loaded locknut — never impact-driving the inner ring, which will brinell the reinforced E-design raceway
• For oil-air lubricated spindles, verify that the external lubrication system delivers clean, metered oil mist before initial run-up; dry starts destroy P4S running accuracy within seconds

Starting Your Spindle Bearing Inquiry

Share your spindle model number, operating speed range, and current bearing failure mode so we can confirm whether the FAG XCB7006-E-T-P4S angular contact ball bearing is the correct match or whether a different internal design or precision class better serves your application. If you are cross-referencing from another brand, provide the full designation including all suffixes so we can verify clearance, cage material, and running accuracy alignment. We will respond with availability, lead time, and the complete documentation package that accompanies this bearing through authorized channels.

Frequently Asked Questions

Q: How do I verify that my FAG XCB7006-E-T-P4S is genuine using the official app? A: Scan the QR code on the bearing packaging using the brand's official verification application. The app cross-references the encoded batch number against the manufacturer's production database. A genuine unit will return matching production date, factory, and distributor chain information. If the QR code redirects to a generic website or returns no data, halt installation and contact your supplier for authenticity verification support.

Q: What should I check when cross-referencing this bearing to another brand's equivalent? A: Beyond the base 7006 dimension series, confirm that the substitute matches the E reinforced internal design, the P4S running accuracy specification, and the single-row angular contact arrangement. A standard P4 equivalent without the S running accuracy suffix may pass dimensional inspection but still produce unacceptable runout in spindle applications. We provide complete cross-reference comparison charts covering SKF, NSK, FAG, TIMKEN, NTN, and KOYO with suffix-level alignment.

Q: How does P4S precision compare to standard P4 or P5 for spindle use? A: P4S imposes additional running accuracy requirements beyond the standard ISO class 4 dimensional tolerances covered by P4. This means tighter control on inner and outer ring runout under operational conditions, which directly affects workpiece roundness. P5 is a lower precision class entirely and is not suitable for applications where the OEM specified P4S — substituting downward will produce visible surface finish defects at high spindle speeds.

Q: What do the XCB and T suffixes indicate on this bearing? A: XCB and T are specialized FAG designations whose precise definitions may vary by production era and application series. Before approving this bearing for a critical spindle application, we recommend confirming the exact meaning of these suffixes against the current manufacturer catalog or consulting with our engineering team, who can cross-reference the designation against known OEM equipment specifications.

Q: Can this bearing handle combined radial and axial loads simultaneously? A: Yes. As a single-row angular contact ball bearing, the FAG XCB7006-E-T-P4S is designed for combined loading, with the contact angle determining the ratio of axial to radial capacity it can sustain. The reinforced E internal design increases overall load capacity within the same 30×55×13 mm envelope. For applications with heavy axial dominance, paired arrangements or steeper contact angle variants may be more appropriate — share your load data for a selection review.

Confirm Your Spindle Bearing Specification Send us your OEM equipment number or operating parameters, and we will verify the FAG XCB7006-E-T-P4S angular contact ball bearing fitment along with the full documentation package before you commit to a purchase order.
