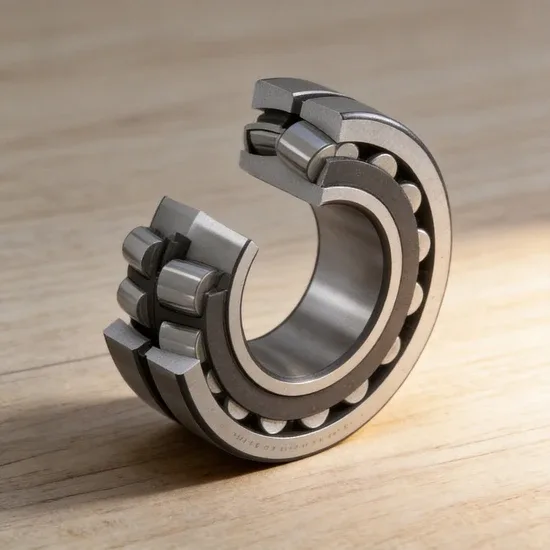

SKF 22205EK Spherical Roller Bearing Wholesale Supplier

Authorized Channel Sourcing — Every 22205EK spherical roller bearing we supply ships with batch-level traceability documentation traceable back through authorized distributor channels.

Technical Specifications

Note: The 'EK' suffix in the designation 22205EK requires verification against the specific manufacturer catalog to confirm the exact cage material and internal design specifics.

Application Suitability

The Risk of "Good Enough" Substitutions on Critical Shafts

A mismatch in clearance or cage design turns a standard replacement into a three-month failure cycle.

Procurement teams often see a base number like 22205 and assume any variant with the same dimensions will perform identically. In vibrating screens and crushers, where shock loads and high ambient temperatures are constant, this assumption leads to thermal binding or cage fatigue. We have traced premature failures in Inner Mongolia mining operations back to stamped steel cages being used where machined brass was required for vibration resistance [NEED_CITE: vibration screen bearing cage failure modes per ISO 15243]. When you are sourcing a 22205EK spherical roller bearing supplier, you are not just buying a part; you are buying the engineering assurance that the internal geometry matches the application's load spectrum.

Matching the 22205EK to High-Vibration Environments

This 22205EK spherical roller bearing is specifically suited for applications involving heavy radial loads combined with moderate axial displacement, such as the eccentric shafts in mining crushers or the side plates of vibrating screens. The spherical raceway in the outer ring allows for angular misalignment, which is critical in heavy machinery where shaft deflection under load is inevitable.

Our value lies in verifying that the internal clearance and cage type are appropriate for your specific vibration frequency. Years ago, we solved a recurring failure issue on a crusher by switching from a standard clearance to C3, accommodating the thermal expansion of the shaft during continuous operation.

Operational Demands: Thermal Growth and Contamination

In industries like mining and steel production, bearings face a brutal combination of particulate contamination and elevated operating temperatures. The tapered bore (K suffix) of the 22205EK allows for precise radial internal clearance adjustment during mounting on a tapered sleeve or shaft. This is vital because the interference fit required to hold the bearing on the shaft reduces the internal clearance. If the initial clearance is not selected to compensate for this reduction and the subsequent thermal expansion of the inner ring, the bearing will run under preload, generating excessive heat and leading to premature seizure [NEED_CITE: rolling bearing internal clearance reduction during mounting].

Furthermore, open-type bearings in these environments rely on external housing seals. The performance of the 22205EK is directly tied to the effectiveness of the housing sealing arrangement to prevent abrasive dust from entering the lubricant film.

Decoding the Core Specifications

The "K" in the designation indicates a tapered bore with a 1:12 taper ratio. This design allows for a tight interference fit on the shaft without requiring excessive force during installation, and it facilitates easier removal. When mounting a tapered bore bearing, the drive-up distance along the taper is calculated to achieve a specific reduction in radial internal clearance, ensuring the bearing operates with the correct preload or clearance under operating conditions.

The "E" suffix generally denotes an optimized internal design with an increased number of rollers or improved roller profiles, maximizing the dynamic load rating (C). The specific cage design, potentially indicated by the full EK suffix, dictates the bearing's speed capability and its ability to withstand the centrifugal forces and roller-guiding forces present in high-vibration applications. Steel cages are common, but in high-vibration screens, machined brass cages (often designated M or MA) are sometimes preferred for their superior fatigue strength under oscillating loads [NEED_CITE: machined brass vs stamped steel cage performance in vibrating screens].

The Hidden Cost of Unverified Inventory

Sourcing a replacement bearing from an unverified pool of stock often results in receiving a standard clearance bearing when a C3 was needed, or a bearing with a cage material not suited for the application's vibration profile. The result is not just a failed bearing; it is unplanned downtime, secondary damage to the shaft and housing, and voided equipment warranties. According to ISO 281, the calculated life of a bearing drops exponentially if the internal clearance is incorrect for the operating temperature and fit conditions.

Why Maintenance Engineers Source Through Us

We do not simply box and ship. Our process begins with verifying the application parameters against the bearing's technical envelope. When you request a 22205EK spherical roller bearing, we cross-reference the requirement across SKF, NSK, FAG, TIMKEN, NTN, and KOYO, matching not just the base dimensions but the clearance, cage, and precision suffixes. We source through authorized distributor channels, meaning the product you receive is backed by the manufacturer's warranty and can be verified for authenticity. We also provide the country-of-origin documentation and certificates of conformity required for smooth import clearance and internal quality auditing.

Documentation & Authenticity

• Supplier Certificate of Conformity (COC): Includes batch and lot numbers traceable to the authorized distributor channel.
• Material Certificates: Confirming the use of high-purity bearing steel (e.g., 100Cr6) for the rings and rolling elements.
• Dimensional Inspection Reports: Verifying bore, OD, and width tolerances against ISO 492 standards.
• Country-of-Origin Documentation: Essential for import compliance and tariff classification in your region.
• Anti-Counterfeit Guidance: Instructions on verifying the product via official brand QR code apps or hologram checks.

Storage, Handling & Mounting

• Original Packaging Retention: Keep the 22205EK in its sealed, VCI-protected packaging until the moment of mounting to prevent corrosion of the exposed steel surfaces.
• Tapered Bore Mounting Protocol: Use the hydraulic nut method or the drive-up method with a feeler gauge to measure the remaining internal clearance, ensuring the correct interference fit on the tapered seat.
• Cleanliness Standards: For open-type spherical roller bearings, the cleanliness of the housing and the fresh grease purged through the system are more critical than the bearing's internal cleanliness at the point of unpacking.
• Storage Orientation: Store the bearings horizontally. Vertical storage of larger spherical roller bearings can cause the rollers to indent the raceway under their own weight over time, though the 22205 size is generally robust against this.
• Temperature Acclimatization: Allow the bearing to reach ambient temperature in the installation environment before unpacking to prevent condensation on the cold steel surfaces.

Technical Inquiry & Quotation

To ensure the 22205EK spherical roller bearing meets your exact operational requirements, please share your equipment OEM number or the specific load and speed parameters. This allows us to confirm the correct clearance class and provide an accurate cross-reference if a direct OEM replacement is unavailable.

Frequently Asked Questions

Q: What does the EK suffix mean on spherical roller bearings, and how does it affect bore type and cage design? A: The 'K' indicates a tapered bore (1:12). The 'E' denotes an enhanced internal design for higher load capacity. The specific cage type (steel or brass) associated with the full 'EK' string must be verified against the specific manufacturer's current catalog, as designations can evolve.

Q: How to ensure cross-reference accuracy when substituting between SKF, NSK, FAG, TIMKEN, NTN, and KOYO? A: Base number matching is insufficient. You must align the clearance class (e.g., C3), cage material, and internal design suffixes. We provide a complete interchange comparison that accounts for these technical variables, not just the dimensions.

Q: What clearance class (CN/C3/C4) is required for high-temperature applications in vibrating screens and crushers? A: High-temperature applications typically require C3 or C4 clearance to compensate for the thermal expansion of the inner ring and shaft, which reduces internal clearance during operation. The exact class depends on the specific temperature gradient and fit tolerances.

Q: How to verify bearing authenticity and avoid counterfeit products entering the supply chain? A: Always request traceability documentation (COC) linking the batch to an authorized distributor. Utilize the brand's official mobile application to scan QR codes or verify security holograms on the packaging.

Q: What documentation should be requested when importing bearings to verify origin and authenticity? A: Request the Certificate of Conformity, material certificates, and a specific Country of Origin certificate. These are essential for customs clearance and for proving the supply chain integrity to your quality assurance department.

Secure Your 22205EK Inventory Submit your application parameters or OEM part numbers today for a verified quotation and cross-reference analysis. [Contact us via our authorized distributor channel portal for technical support and documentation requests.]
