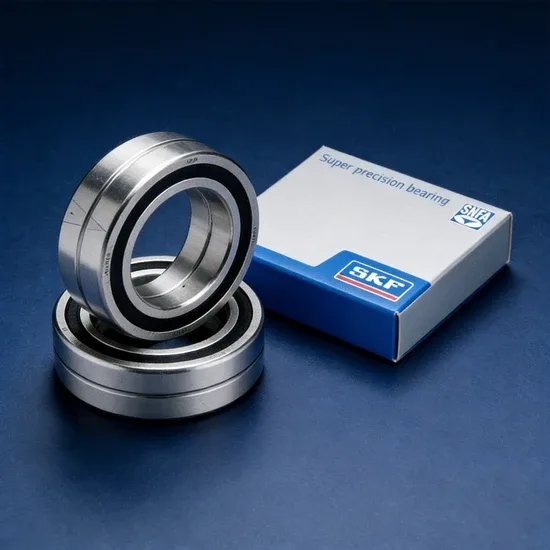

SKF 7004 CE/P4ADGB Angular Contact Ball Bearing 20x42x12mm P4A

Authorized Channel Sourcing — SKF 7004 CE/P4ADGB angular contact ball bearings procured through verified distributor networks with batch-level traceability documentation.

Technical Specifications

DGB suffix interpretation requires manufacturer catalog confirmation for precise preload and arrangement specification.

Application Suitability

What Happens When Spindle Bearings Fail Suffix Verification

P4A precision with 15° contact angle demands exact suffix alignment — base number matching alone causes thermal binding in high-speed spindles.

I've seen procurement teams match "7004" and "P4" on paper, then watch spindles overheat within weeks because the supplier shipped standard clearance where C3 was specified, or ignored the DB pairing preload entirely. The workpiece surface finish degrades, vibration spikes at 15,000 RPM, and production contracts get lost. Counterfeit bearings with cloned QR codes and soft inner rings compound the problem — they pass visual inspection but fail under sustained radial-axial combined loads typical in CNC applications. [NEED_CITE: bearing failure modes from clearance and precision mismatch per ISO 15243]

Matching Precision to Spindle Duty Cycles

The SKF 7004 CE/P4ADGB angular contact ball bearing handles predominantly radial loads with controlled axial components — exactly the load spectrum in machine tool spindles where cutting forces create moment loads. The 15° contact angle generates less friction heat than 25° variants under these conditions, keeping thermal growth within the tight tolerances that precision machining requires. We cross-reference OEM equipment numbers against our database to verify that clearance class, cage material, and precision suffixes align — not just the base designation.

Thermal Management and Speed Demands

Spindle applications push rotational speeds where lubricant film thickness becomes critical, and thermal expansion directly affects internal clearance. The open bearing design allows oil-air or oil mist lubrication systems to maintain film integrity without seal friction adding heat. At sustained high speeds, even minor runout errors amplify into chatter marks on workpieces. Installation requires controlled interference fits — typically induction heating for the outer ring to avoid cold-press distortion that compromises P4A running accuracy. [NEED_CITE: angular contact bearing thermal growth effects on precision machining]

Decoding the CE and P4A Designations

The CE suffix indicates 15° contact angle with optimized internal geometry compatible with polyamide or steel cage options for high-speed operation. P4A precision meets ISO tolerance class 4 dimensional requirements with additional running accuracy specifications — tighter than standard P4, ensuring minimal radial and axial runout critical for spindle applications where surface finish quality depends on rotational stability. The single-row angular contact arrangement handles combined loads in one direction, requiring paired mounting (back-to-back or face-to-face) for bidirectional axial constraint and moment load capacity.

The Downtime Cost of Specification Errors

Correct sourcing with full documentation versus accepting mismatched suffixes or unverified origins separates planned maintenance windows from catastrophic spindle seizures. Wrong clearance causes preload loss or excessive interference, leading to premature cage failure or raceway spalling. Counterfeit bearings with inadequate heat treatment fail unpredictably — sometimes within days under production loads. ISO 281 life calculations assume correct specification matching; deviation voids warranty and transforms predictable L10 life into unplanned downtime events that cost far more than the bearing itself. [NEED_CITE: ISO 281 bearing life calculation assumptions and specification requirements]

Why Procurement Engineers Verify Through Our Channel

We source SKF 7004 CE/P4ADGB angular contact ball bearings through authorized distributor channels with traceable documentation back to manufacturer production facilities. Every shipment includes Certificate of Conformity with batch numbers you can verify through SKF's official mobile applications. Our cross-reference database matches not just base designations but clearance, cage material, and precision suffixes across six major brands — so substitutions maintain performance equivalence. We provide country-of-origin documentation for import compliance and third-party dimensional inspection reports confirming P4A running accuracy before dispatch.

Documentation & Authenticity

• Supplier Certificate of Conformity linking batch numbers to SKF production records
• QR code verification pathway through SKF Authenticate mobile application
• Third-party runout inspection confirming P4A running accuracy before shipment
• Country-of-origin documentation supporting customs clearance and import compliance
• Material certificates traceable to specific heat lots

Storage, Handling & Mounting

• Maintain original sealed packaging until installation to preserve factory-applied corrosion protection on the open bearing design
• Store in climate-controlled environments below 60% humidity to prevent raceway micro-corrosion that compromises P4A surface finish
• Use clean lint-free gloves during handling — fingerprint acids etch precision-ground raceways
• Mount outer rings via induction heating to 110°C maximum; cold pressing distorts the thin-section 42mm OD and degrades running accuracy
• For paired DB or DF arrangements, follow factory match marks exactly — reversing orientation destroys the calibrated preload

Request Technical Verification

Share your spindle application parameters — load spectrum, speed range, operating temperature, and lubrication method — so we can verify the SKF 7004 CE/P4ADGB angular contact ball bearing matches your requirements or recommend specification adjustments. Provide OEM equipment numbers for cross-reference validation against our interchange database. Confirm batch availability and typical multi-week lead times for your project timeline.

Frequently Asked Questions

Q: How do I verify SKF bearing authenticity using official QR codes? A: Download SKF Authenticate app, scan the QR code on bearing packaging and the bearing itself, then cross-check batch numbers against the Certificate of Conformity we provide. Genuine bearings show consistent traceability through authorized distribution channels.

Q: What does P4A precision mean compared to standard P4? A: P4A meets ISO tolerance class 4 dimensional requirements with additional running accuracy specifications — tighter control on radial and axial runout critical for precision spindle applications where surface finish quality depends on rotational stability.

Q: How do I interpret angular contact bearing suffixes like CE and P4A? A: CE indicates 15° contact angle with optimized internal design for high-speed operation. P4A specifies enhanced running precision beyond standard P4. The DGB suffix requires manufacturer catalog confirmation for exact preload and pairing arrangement details.

Q: What matters when cross-referencing angular contact bearings across brands? A: Match clearance class, cage material, contact angle, and precision grade — not just base numbers. A 15° contact angle bearing with P4A precision and specific preload must cross-reference to equivalent specifications, otherwise thermal behavior and load capacity diverge in application.

Q: How do I select contact angle and preload for spindle applications? A: Lower contact angles like 15° generate less friction heat under predominantly radial loads typical in spindles. Preload selection depends on speed, load magnitude, and required rigidity — share your application parameters for engineering guidance.

Verify Your Spindle Bearing Specification Send us your OEM equipment number and operating parameters for cross-reference validation and authenticity documentation review.
