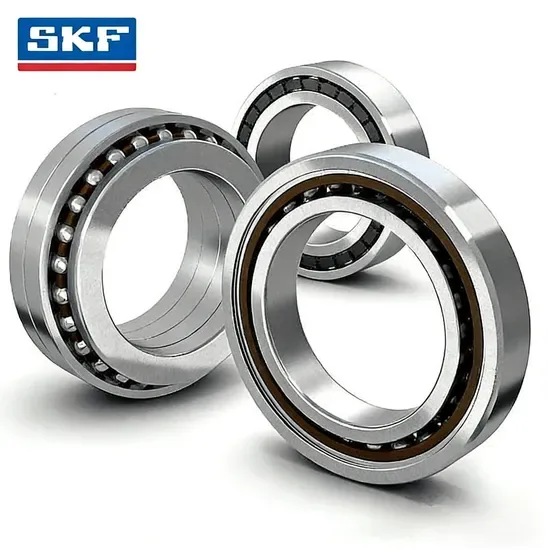

SKF 7009 CE/HCP4ALDT Angular Contact Ball Bearing Genuine

Traceable Sourcing Channels — Every SKF 7009 CE/HCP4ALDT angular contact ball bearing we ship is backed by authorized distributor paperwork and batch-level traceability, giving maintenance teams confidence that what goes into the spindle is exactly what came off the production line.

Technical Specifications

Suffixes H, CP4A, and LDT require verification against the manufacturer catalog to confirm full technical meaning; the above table reflects confirmed parameters only.

Application Suitability

What Happens When a 15° Contact Angle Meets a 25° Spindle Design

The SKF 7009 CE/HCP4ALDT angular contact ball bearing carries a CE suffix indicating a 15° contact angle, which must match the original spindle design intent or risk thermal instability within the first operating cycle.

I once watched a procurement team swap a 15° bearing for a 25° variant because the base number matched and the price was lower. The spindle reached operating temperature within minutes, chatter marks appeared on the workpiece surface, and an entire batch of aerospace components was scrapped. The root cause was not the bearing quality but a contact angle mismatch that shifted the internal load distribution and generated excess friction heat [NEED_CITE: angular contact bearing contact angle effect on thermal behavior in high-speed spindles]. A counterfeit bearing with a cloned QR code would have produced the same catastrophic result, which is why verifying the SKF 7009 CE/HCP4ALDT angular contact ball bearing through authorized channels matters as much as the specification itself.

How This Bearing Fits the Spindle Load Profile

The 15° contact angle of the SKF 7009 CE/HCP4ALDT angular contact ball bearing generates lower friction torque under predominantly radial loads typical of milling and grinding spindles, where cutting forces push mainly perpendicular to the shaft axis. The optimized internal geometry associated with the CE suffix keeps the ball-raceway contact ellipse compact, reducing sliding friction at elevated speeds. We matched this bearing recently for a CNC lathe spindle rebuild where the OEM specified a 15° angle; substituting a 25° alternative would have increased axial stiffness but sacrificed speed capability, exactly the trade-off that causes premature cage failure in continuous-duty operations.

Thermal Expansion and Speed Demands at the Spindle Nose

Spindle nose bearings operate in a thermally hostile zone where shaft elongation and housing distortion both fight against internal clearance. At sustained high speeds, lubricant film thickness shrinks and the bearing must rely on precise preload to maintain stiffness without generating excess heat. The polyamide or steel cage option indicated by the CE suffix provides low mass and reduced centrifugal loading on the balls, which is critical when the spindle accelerates through critical speeds [NEED_CITE: cage material influence on speed limit in angular contact ball bearings per ISO 15]. Any contamination entering the raceway—coolant mist, metallic dust from adjacent machining—accelerates surface distress and shortens L10 life dramatically, making clean handling during installation non-negotiable.

Decoding the Specifications That Define Performance

The 15° contact angle delivers a balance between radial load capacity and axial stiffness, making it the preferred choice for spindles that experience moderate axial thrust from tool clamping mechanisms rather than heavy axial cutting forces. The P4A precision class indicated in the suffix string places this bearing in the upper tier of running accuracy, where bore and outside diameter tolerances, as well as inner ring runout, are held tighter than standard P5 production. This level of precision ensures that the spindle nose maintains concentricity under load, preventing the workpiece surface finish degradation that plagues shops running P0-grade replacements in precision equipment. The single-row angular contact configuration requires a paired bearing arrangement to handle bidirectional axial loads, meaning the mating bearing and preload method must be verified before installation to avoid unbalanced preload distribution that leads to thermal runaway.

The Hidden Cost of Shortcut Sourcing

A bearing that looks correct on the purchase order but originates from an unverified supply chain can carry a soft inner ring that deforms under preload, or a cage made from off-spec material that fractures at operational speed. The SKF 7009 CE/HCP4ALDT angular contact ball bearing installed in a precision grinding spindle must maintain dimensional stability over thousands of hours; a counterfeit unit may pass visual inspection but fail catastrophically once thermal cycling exposes material deficiencies [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The cost of unplanned downtime, scrapped workpieces, and potential spindle shaft damage far exceeds the price difference between a genuine component and a suspect one, which is why we treat every sourcing decision as a reliability decision rather than a commodity transaction.

Why Procurement Engineers Keep Coming Back

We source the SKF 7009 CE/HCP4ALDT angular contact ball bearing through authorized distributor channels where each shipment carries traceable batch documentation back to the manufacturer's production facilities. Our cross-reference database does not stop at matching the base designation; we verify that clearance class, cage material, precision suffix, and contact angle all align across brand substitutions before recommending an interchange. When a maintenance engineer sends us an OEM equipment number, we return not just a part number but a complete documentation package including Certificate of Conformity, dimensional inspection data, and country-of-origin paperwork that satisfies import compliance requirements. Every bearing we ship carries a QR code verification pathway through the brand's official application, so the receiving team can confirm authenticity before breaking the seal.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch number linking to production date and manufacturing facility
• Third-party runout inspection confirming P4A running accuracy before shipment, not just dimensional check
• QR code scannable via SKF official application for field authenticity verification at the receiving dock
• Country-of-origin documentation with HS code classification prepared for customs clearance in destination markets
• Material certificate confirming bearing steel grade and heat treatment compliance with relevant ISO standards

Storage, Handling & Mounting

• Keep the SKF 7009 CE/HCP4ALDT angular contact ball bearing in its original vacuum packaging until the moment of installation to prevent moisture ingress that compromises the P4A surface finish
• Handle with lint-free gloves to avoid transferring skin acids onto the precision-ground raceways, which can initiate corrosion pits invisible to the naked eye but detectable under magnification
• If the spindle requires paired mounting, mark the high-point alignment on both bearings before installation to ensure the manufacturer's runout compensation is preserved
• Use induction heating for the inner ring mounting rather than mechanical pressing, as the 45 mm bore and P4A tolerance demand controlled expansion without raceway brinelling
• Apply the spindle manufacturer's specified grease type and fill quantity; over-greasing a high-speed angular contact bearing generates churning heat that negates the low-friction advantage of the 15° contact angle

Ready to Verify Your Spindle Requirements

Share your spindle operating parameters—speed range, load spectrum, operating temperature, and current bearing marking—so we can confirm whether the SKF 7009 CE/HCP4ALDT angular contact ball bearing is the correct match or if a different precision class or contact angle better suits your application. Provide the OEM equipment number for a full cross-reference review including preload and pairing verification. Request the documentation package in advance to clear import requirements before the shipment leaves our warehouse.

Frequently Asked Questions

Q: How can I verify that the SKF 7009 CE/HCP4ALDT angular contact ball bearing is genuine before installation? A: Every unit we supply carries a QR code that links to the brand's official verification application. Scanning the code confirms batch authenticity and production origin. We also provide a Certificate of Conformity with traceable batch information that your quality team can file for audit purposes.

Q: What does the CE suffix indicate for angular contact ball bearings? A: The CE suffix denotes a 15° contact angle with an optimized internal design, paired with either a polyamide or steel cage depending on the specific variant. This configuration is selected for high-speed applications where lower friction heat generation is more critical than maximum axial stiffness.

Q: What precision class should I use for CNC spindle applications? A: Most CNC milling and grinding spindles require P4 or P4A precision to maintain workpiece surface finish and dimensional accuracy. Using a P0 or P6 bearing in a spindle designed for P4A results in excessive runout, accelerated wear, and chatter marks on finished parts.

Q: How do cross-reference substitutions affect preload and pairing? A: A direct base-number match does not guarantee compatible internal geometry or preload response. When substituting across brands, we verify contact angle, clearance class, cage design, and precision grade simultaneously to ensure the replacement bearing behaves identically under the same preload conditions.

Q: What is the typical lead time for high-precision angular contact bearings? A: High-precision angular contact bearings in specialized suffix configurations typically require multi-week lead times depending on stock availability at authorized distributor points. We confirm batch availability and estimated dispatch date at the quotation stage.

Confirm Your Spindle Match Today Send us your bearing marking, OEM equipment number, or spindle specification sheet, and we will return a verified sourcing recommendation with full documentation within one business day. Contact our technical sourcing team through your existing procurement channel or request a quotation through our inquiry portal.
