SKF 7010 Angular Contact Ball Bearing 50mm Bore Wholesale Supplier
SKF 7010 Angular Contact Ball Bearing 50mm Bore Wholesale SupplierSKF 7010 Angular Contact Ball Bearing 50mm Bore Wholesale SupplierSKF 7010 Angular Contact Ball Bearing 50mm Bore Wholesale SupplierSKF 7010 Angular Contact Ball Bearing 50mm Bore Wholesale SupplierSKF 7010 Angular Contact Ball Bearing 50mm Bore Wholesale Supplier

Quote memo for this SKF bearing

State the exact execution (designation suffix), whether you need the complete assembly, and which housings or mounting accessories belong on the same line. Keep precision items separate, with accuracy class and arrangement.

Send Your Model List

Technical data

Specifications

Listed data for this SKF designation; confirm the execution and dimensions against your drawing or application before ordering.

Product details

Authorized Channel Sourcing — Every SKF 7010 angular contact ball bearing we dispatch carries batch-level traceability backed by distributor purchase records and certificate of conformity documentation.

Technical Specifications

Parameter Value
Designation SKF 7010
Bearing Type Angular Contact Ball Bearing
Bore Diameter (d) 50 mm
Number of Rows Single Row
Seal or Shield Type Open
Clearance Class CN (Normal Radial Internal Clearance)
Precision Class P0 (Normal)
Contact Angle Standard (per SKF 70-series default)
Weight 0.100 kg
Origin China

No suffix beyond the base designation was confirmed on the sourced batch. If your application requires specific clearance, precision, or cage variants, provide the full machine-side requirement so we cross-check against the manufacturer catalog before quoting.

Application Suitability

Industry Typical Applications
Industrial Machinery Precision equipment linear guide carriages
Mining and Crushing Travel motor gearboxes on hydraulic excavators
Material Handling Conveyor head roller drive assemblies
Automotive and Heavy Vehicle Repair Steering column support and power steering pump shafts

What Happens When a Standard-Precision Angular Contact Meets Shock Loads

The cage fails first, and it never gives warning.

A travel motor gearbox on a night shift does not care about price savings. I once handled a claim where a cross-reference error sent pressed-steel cages into a high-shock environment that demanded brass. The cage shattered within three weeks, rollers scored both raceways, and the entire travel motor locked up mid-cycle. The base number matched. The suffix did not. That single omission triggered unplanned downtime that dwarfed the bearing cost many times over. Mismatched suffixes on angular contact bearings are responsible for a significant share of premature failures in heavy-equipment applications. Counterfeit angular contact bearings with soft inner rings and cloned QR codes are now entering supply chains through unverified middlemen, making the sourcing channel as critical as the part number itself.

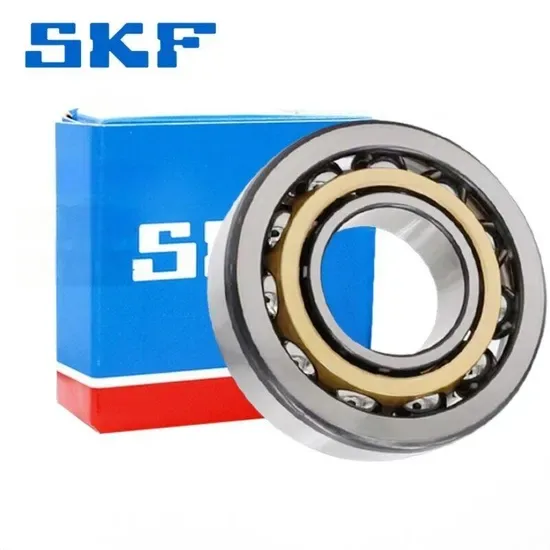

SKF 7010 angular contact ball bearing 50mm bore single row open type

Matching the SKF 7010 to Travel Motor and Spindle Environments

The SKF 7010 angular contact ball bearing carries a single-row angular contact architecture designed to manage combined radial and axial loads acting in one direction. This makes it a natural fit for travel motor gearboxes where helical gear mesh generates steady axial thrust alongside radial gear-separation forces. The 50 mm bore aligns with mid-range shaft envelopes common in excavator final drives and mid-size machine tool spindle noses. The open-type construction means lubrication selection is entirely in the buyer's hands — oil-jet circulation for high-speed spindles or grease packing for sealed travel motor gearboxes. Our technical team reviews operating parameters before confirming interchange equivalents across NSK, FAG, NTN, TIMKEN, and KOYO, matching cage material and clearance rather than relying on base-number lookup alone.

Load Spectra, Speed Envelopes, and Thermal Behavior in the Field

Combined loads on angular contact bearings are never purely radial or purely axial — the contact angle splits the resultant force vector into radial and axial components, and the SKF 7010's standard 70-series contact angle provides a balanced split suited for moderate-speed combined loading. Operating temperature directly affects internal clearance: as the inner ring heats faster than the outer ring during startup, CN clearance shrinks, and if the application generates sustained thermal gradients, the bearing can reach zero clearance and begin skidding. Open-type bearings demand external sealing responsibility from the housing design — in dusty mining environments, inadequate labyrinth seals allow abrasive fines to contaminate the lubricant film, accelerating raceway wear far before fatigue-initiated spalling.

Decoding the Specifications That Define Field Performance

The absence of a suffix on this SKF 7010 angular contact ball bearing means SKF's default configuration: normal CN radial internal clearance, P0 precision class, and open type with no integral seals. CN clearance is appropriate where operating temperatures stay within a moderate range and housing fits follow standard ISO tolerance zones; deviating to C3 without a thermal justification leaves excess clearance that manifests as vibration at operating speed. P0 precision reaches standard dimensional and running accuracy per ISO 492, sufficient for general industrial gearboxes and non-critical spindle positions. The open-type design eliminates seal friction losses, preserving speed capability, but shifts contamination protection entirely to the housing seal arrangement. Cage material — whether machined brass, pressed steel, or polyamide — is not specified by the base designation alone and must be confirmed against the application's shock-load profile, because brass cages tolerate impact far better than pressed steel in travel motor duty cycles.

SKF 7010 internal structure cage material and raceway contact angle detail

The Hidden Cost of an Incorrect Cage or Counterfeit Ring

A bearing that passes visual inspection can still carry a soft inner ring from unauthorized production, and once installed in a high-shock gearbox, raceway spalling begins within a fraction of the expected L10 life. Wrong clearance class causes thermal binding that escalates to cage collapse — a failure mode classified under ISO 15243 as thermal damage rather than classical fatigue. Counterfeit bearings often replicate the outer carton and QR label, but material hardness and retained austenite levels fall outside specification, leading to brinelling under static loads that genuine rings would absorb without permanent deformation. Every hour of unplanned downtime on a mining excavator carries equipment, crew, and production penalty costs that render the bearing's purchase price negligible by comparison.

How Our Sourcing Process Protects Your Equipment Uptime

We pull SKF 7010 angular contact ball bearings through authorized distributor channels, which means every shipment carries a traceable purchase chain back to the manufacturer's distribution network — not an unverifiable third-party marketplace. Our cross-reference database aligns clearance, cage material, and precision suffixes across SKF, NSK, FAG, NTN, TIMKEN, and KOYO so that substitute part numbers carry the same field reliability as the original specification. Batch-level documentation travels with every order, giving your receiving department the evidence needed to close out authenticity audits. We provide country-of-origin documentation that aligns with your import compliance requirements, and engineering support is available when unusual load, speed, or temperature conditions demand selection guidance beyond catalog tables.

Documentation & Authenticity

  • Supplier Certificate of Conformity issued against the specific SKF 7010 batch number, linking each bearing to its production lot
  • QR code verification pathway via the SKF official authentication app, enabling on-site receiving teams to scan and confirm legitimacy before warehouse intake
  • Third-party dimensional inspection report covering bore diameter, outside diameter, width, and running accuracy, available upon request before shipment
  • Country-of-origin certificate aligned with import documentation requirements for your destination port
  • HS code classification support to smooth customs clearance for industrial bearing consignments

Storage, Handling & Mounting

  • Retain the original SKF sealed packaging until the moment of mounting; early opening exposes the open-type SKF 7010 raceways to airborne moisture and particulate ingress
  • Store flat in a temperature-stable environment away from direct sunlight to prevent uneven thermal distortion of the thin-section rings on this 50 mm bore bearing
  • Handle with clean, lint-free gloves during unpacking to avoid fingerprint-induced corrosion on the unprotected raceway surfaces of this open-type unit
  • Mount using induction heating for the inner ring to achieve the required expansion for a 50 mm shaft fit, avoiding cold-press methods that risk brinelling on the P0 precision raceways
  • Confirm external housing seal integrity before filling the gearbox or spindle housing with lubricant, because the open-type SKF 7010 relies entirely on the housing environment for contamination exclusion

Request a Technical Quote for Your Application

Share your operating parameters — load magnitude, speed range, operating temperature, and housing seal arrangement — so we can verify whether the standard SKF 7010 configuration fits or whether a suffix variant is required. If you have an OEM equipment number, send it over for cross-reference validation including cage and clearance alignment. Ask us for the documentation package and lead-time confirmation before committing to a trial or bulk quantity.

Frequently Asked Questions

Q: How can I verify the authenticity of an SKF 7010 received from a distributor?
A: Use the SKF official authentication app to scan the QR code on the bearing packaging. Cross-check the batch number printed on the box against the Certificate of Conformity supplied with the shipment. If any discrepancy appears — mismatched batch numbers, low-resolution QR labels, or packaging that deviates from current SKF branding standards — flag the bearing before installation.

Q: What should I check when cross-referencing the SKF 7010 to equivalent NSK, FAG, or NTN part numbers?
A: Go beyond the base number. Confirm that the substitute carries the same clearance class (CN), precision class (P0), cage material, and open-type configuration. A mismatch in any one of these parameters can cause field failure even when the dimensional envelope is identical. Our cross-reference comparison aligns all four attributes before recommending an interchange.

Q: When would this bearing need a different precision class?
A: P0 precision is adequate for general industrial gearboxes and non-critical spindle positions. Applications such as high-speed machine tool spindles or precision grinding heads typically demand tighter running accuracy — P4 or higher — to control vibration and maintain dimensional tolerances at elevated RPM. If your application involves tight runout requirements, share the specification for a precision-class review.

Q: Does the contact angle affect my choice of preload arrangement?
A: Yes. The contact angle determines how axial load translates into internal ball loading and raceway contact stress. For paired mounting arrangements — back-to-back, face-to-face, or tandem — the contact angle directly influences the preload value needed to achieve target rigidity without excessive friction heat. The standard SKF 7010 is supplied as a single bearing; if your application requires a matched pair, provide the target preload class so we can source accordingly.

Q: Can I use this bearing in a heavily contaminated environment without modification?
A: The open-type design has no integral seals, meaning contamination protection is the responsibility of the housing seal system. In high-dust or high-moisture environments such as mining travel motors, ensure that the housing incorporates effective labyrinth or contact seals, and maintain lubricant cleanliness through scheduled oil analysis or grease replacement intervals.

Source Your Genuine SKF 7010 Angular Contact Ball Bearing
Send us your application parameters or OEM equipment number for cross-reference validation and a documentation-backed quotation.
