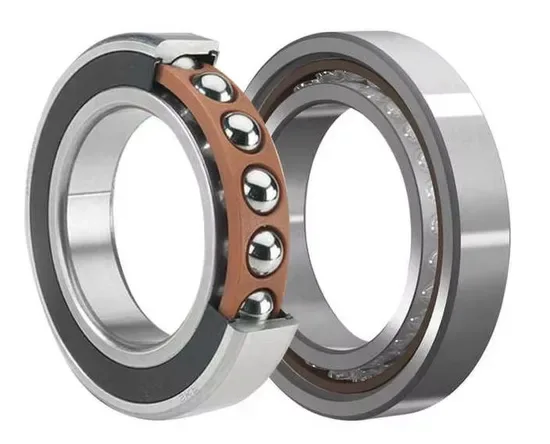

FAG HS71903-E-T-P4S Angular Contact Ball Bearing P4 Precision Wholesale

Traceable Batch Sourcing — Every HS71903-E-T-P4S unit ships with manufacturer batch records and official app verification pathways intact.

Technical Specifications

Note: The HS and T suffixes within this identifier are not standard FAG catalog designations and must be verified against current manufacturer documentation prior to final application approval.

Application Suitability

Suffix Omissions That Turn a Spindle Into Scrap

A single missed suffix letter on an angular contact bearing can push thermal drift past tolerance within the first hour of operation.

I watched a southern German machine tool builder lose an entire batch of workpieces because their procurement team matched the base number HS71903 but swapped in a C-angle variant instead of the required E-design. At 18,000 RPM, the contact geometry generated excess friction heat, thermal growth pushed the tool tip off center, and surface finish went straight to scrap. The buyer blamed the supplier. The real failure was a cross-reference that looked at the bore and OD but ignored internal design and contact angle suffixes entirely. A significant share of premature spindle failures trace back to this exact pattern — matching digits while missing letters. [NEED_CITE: angular contact bearing suffix mismatch failure modes per ISO 15243]

Matching the HS71903-E-T-P4S to High-Speed Spindle Duty

High-speed spindles demand bearings that manage combined radial and axial loads while maintaining sub-micron rotational accuracy across thermal cycles. The FAG HS71903-E-T-P4S angular contact ball bearing addresses this through its slim-section 71903 geometry — a 17 mm bore packed into a 30 mm outer diameter — which keeps rotational inertia low and allows the spindle cartridge to stay compact. The P4S precision class provides tighter running accuracy than standard P4, directly influencing the radial and axial runout the cutting tool experiences at speed. In my sourcing work for spindle builders, I have found that procurement teams often stop at "P4" and miss the S-variant running accuracy specification, which matters when the final workpiece tolerance is measured in single-digit microns.

Thermal Behavior and Lubrication at Spindle Speeds

Spindle bearings above 10,000 RPM operate in a narrow thermal window. The lubricant film must be thick enough to separate rolling elements from raceways but thin enough to avoid churning losses that generate heat. Oil-air or oil-mist lubrication is typical at these speeds, and the open bearing structure of this designation allows external lubrication systems to deliver precise metered quantities directly to the contact zones. Temperature rise inside the spindle housing changes the interference fit between bearing rings and their seats, which can eliminate internal clearance and cause thermal binding — a failure mode I have seen shut down production lines within minutes. The slim section profile also means the cross-section has less thermal mass, so temperature transients propagate faster to the rolling contacts. [NEED_CITE: thermal expansion effects on angular contact bearing preload in high-speed spindles]

What the E and P4S Designations Actually Control

The E suffix in FAG nomenclature signals an optimized internal geometry with reinforced load-carrying capacity. For a 17 mm bore bearing running at extreme speeds, this translates to a contact ellipse between balls and raceways that distributes stress more evenly, reducing subsurface fatigue initiation. The P4S designation goes beyond standard ISO class 4 tolerance by adding supplementary running accuracy requirements — specifically tighter limits on radial and axial runout during rotation, not just static dimensional accuracy measured on a bench. This distinction is critical: a bearing can sit within P4 bore and OD tolerances yet still produce unacceptable vibration when spinning at 18,000 RPM if the raceway circularity and ball sphericity are not controlled to the S-variant standard. The lightweight 0.020 kg mass of this single-row unit further reduces centrifugal forces on the cage at high rotational velocities.

The Hidden Expense of a Counterfeit or Mismatched Spindle Bearing

A counterfeit angular contact bearing may pass visual inspection — the laser marking looks right, the box has a plausible QR code, and the bore and OD measure within a few microns. But soft inner rings from improper heat treatment will brinell under axial preload, and cloned QR codes will redirect to fake verification pages. The result is not a gradual performance decline but a sudden catastrophic spindle seizure that damages the housing, the tool holder taper, and potentially the entire spindle cartridge. Under ISO 281 life calculation frameworks, even a bearing that meets dimensional specs but uses inferior material will see its fatigue life collapse well below the calculated L10 value. [NEED_CITE: counterfeit bearing detection and rolling element fatigue life per ISO 281] Warranty claims on the spindle assembly become void, unplanned downtime stretches into days while replacement cartridges are sourced, and the reputation damage to the machine builder extends far beyond the cost of one bearing.

What We Bring to Your Spindle Bearing Procurement

Sourcing the FAG HS71903-E-T-P4S angular contact ball bearing through our channel means every unit traces back to authorized distributor stock with verifiable batch documentation. Our cross-reference database aligns clearance, cage material, and precision suffixes — not just the base number — so if you need an interchange from NSK or SKF, the replacement matches on contact angle, tolerance class, and internal geometry simultaneously. We provide QR code verification pathways through the manufacturer's official application, so your receiving team can confirm authenticity before the bearing enters inventory. For import-dependent buyers, country-of-origin documentation and HS code support are included with every shipment to prevent customs delays. When application conditions fall outside standard catalogs — unusual preload requirements, mixed ceramic hybrid conversions, or non-standard lubrication intervals — our engineering support addresses selection based on your actual operating parameters rather than generic catalog data.

Documentation & Authenticity

• Supplier Certificate of Conformity listing the specific HS71903-E-T-P4S batch and lot number, enabling traceability back to the original production run
• Third-party dimensional and runout inspection report confirming P4S running accuracy limits prior to dispatch, with actual measured values documented
• Country-of-origin certificate and HS code documentation prepared for import compliance in destination markets, including customs-ready paperwork for the 0.020 kg bearing weight declaration
• Official manufacturer QR code verification pathway provided with each unit, allowing your quality team to scan and confirm authenticity on the receiving dock
• Material certificate confirming bearing steel specification and heat treatment compliance for the high-speed spindle application

Storage, Handling & Mounting

• Retain the factory-sealed packaging for this P4S precision bearing until the moment of mounting; early exposure to shop-floor particulate contamination compromises the tight running accuracy the S-variant suffix guarantees
• Store in climate-controlled conditions away from vibration sources, as micro-vibration during storage can cause false brinelling on the 17 mm bore raceway before the bearing ever reaches the spindle
• Use lint-free cleanroom gloves when handling the open-structure bearing; skin oils transferred to the raceway create localized corrosion initiation sites that propagate under high-speed oil-air lubrication
• For spindle cartridge assembly, apply controlled induction heating to the inner ring rather than mechanical press-fitting, as forced mounting on a 17 mm bore risks damaging the P4S tolerance raceway surface finish
• Verify the spindle housing and shaft seat dimensions against the slim 71903 section tolerances before mounting, because interference fit errors on this small cross-section are magnified by the thin ring walls

Requesting a Technical Quotation

Share your spindle operating parameters — speed range, axial preload requirement, lubrication method, and target runout specification — so we can confirm the HS71903-E-T-P4S is the correct selection or recommend an adjusted variant. If you are working from an OEM equipment number, provide it and we will cross-verify the designation against the machine builder's original bill of materials, including all suffix letters. Confirm the documentation package you require for import clearance in your destination country, and we will include the appropriate certificates with your shipment. Let us check current batch availability and lead time against your project timeline before you commit to a quantity.

Frequently Asked Questions

Q: What does the P4S designation mean compared to standard P4 or ABEC 7? A: P4S builds on ISO class 4 dimensional tolerance by adding stricter running accuracy specifications — tighter limits on how much radial and axial deviation occurs during actual rotation. ABEC 7 is the ANSI equivalent of P4 in basic dimensional tolerance, but neither ABEC 7 nor standard P4 guarantees the supplementary running accuracy that the S-variant provides. For spindle applications where workpiece surface finish depends on tool tip stability at speed, this distinction directly affects output quality.

Q: How should I verify that the E suffix internal design is maintained when cross-referencing to another brand? A: When substituting across brands, the replacement bearing must match not only the 17 mm bore and 30 mm OD but also the optimized internal geometry that the E suffix specifies — ball complement, contact angle, and raceway curvature ratios. Our cross-reference system checks all three parameters simultaneously. A base-number match alone will not preserve the reinforced load capacity and thermal behavior that the E-design delivers in high-speed spindle service.

Q: What should I check to confirm a received FAG HS71903-E-T-P4S is genuine? A: Scan the QR code on the packaging using the official manufacturer verification application, which traces the bearing to its production batch. Verify that the Certificate of Conformity batch number matches both the physical marking on the bearing ring and the packaging label. If the QR code redirects to an unfamiliar website or the batch number cannot be found in the manufacturer's database, halt installation and contact your supplier.

Q: Are the HS and T suffixes standard FAG designations? A: These particular suffixes do not appear in standard FAG angular contact bearing catalog nomenclature and should be confirmed directly against the manufacturer's current technical documentation before finalizing your procurement. We can assist with this verification as part of our pre-order technical review process.

Q: What lubrication method is appropriate for this bearing at high spindle speeds? A: Open-structure angular contact bearings in spindle applications typically use oil-air or oil-mist lubrication systems that deliver precisely metered quantities to the rolling contacts. The specific oil viscosity, delivery interval, and air pressure must be matched to your spindle's operating speed range and thermal management design. We can provide lubrication selection guidance based on your actual speed and load parameters.

Secure Your Spindle Bearing Supply — Start With a Technical Review Send us your operating parameters or OEM equipment number and we will confirm the exact designation, verify suffix alignment, and return a quotation with lead time and documentation package details.

Contact our engineering team to begin your inquiry.
