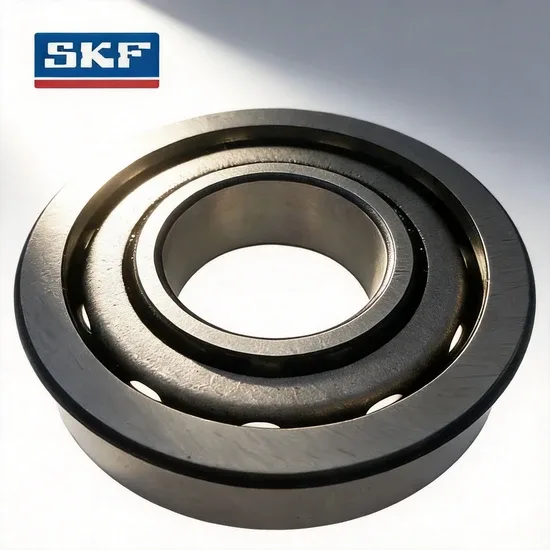

SKF 7005 ACD/HCP4A Angular Contact Ball Bearing 25x47x12mm P4A

Traceable Supply Chain — Every SKF 7005 ACD/HCP4A angular contact ball bearing ships with batch documentation linking back to authorized distributor channels.

Technical Specifications

Note: The "HC" portion of the HCP4A suffix could not be fully decoded from standard SKF suffix tables; cage material or variant designation should be confirmed against the manufacturer's current catalog before final specification.

Application Suitability

What a 25° Contact Angle Actually Changes on a Spindle

Picking the wrong contact angle on a precision spindle is one of the quietest mistakes in maintenance — the bearing runs fine for weeks before vibration tells the story.

I once reviewed a failure report from a European machine tool shop that cross-referenced a 7005 base number, swapped in a P0-grade substitute, and overlooked the cage material suffix entirely. The SKF 7005 ACD/HCP4A angular contact ball bearing they should have installed carries a 25° contact angle optimized for combined radial and axial loads at high speed. The substitute they chose ran hotter, generated more friction under predominantly radial spindle loads, and within weeks the cage cracked under high-speed cycling. The replacement wasn't counterfeit — it was simply wrong for the application [NEED_CITE: angular contact bearing failure modes under contact angle mismatch per ISO 15243].

Matching the Load Spectrum in Precision Transmission

High-speed spindles and transmission shafts generate combined radial and axial forces that shift with cutting depth and RPM changes. The SKF 7005 ACD/HCP4A angular contact ball bearing handles this spectrum through its 25° optimized internal geometry, which distributes load across a wider raceway contact zone than a 15° variant while avoiding the excess friction heat a 40° angle would introduce at sustained high speed. When I review spindle rebuild inquiries, I always check whether the original OEM spec called for the ACD variant specifically — substituting a different contact angle class is one of the most common cross-reference errors I see.

Operating Environment and Performance Demands

Spindle environments combine sustained high RPM with thermal gradients that shift internal clearance as the shaft and housing expand at different rates. Lubrication intervals must account for grease degradation at elevated temperatures, and any contamination from coolant mist or metal fines accelerates raceway wear. The P4A precision class on this bearing ensures tighter running accuracy than standard P5 or P0 grades, which matters when spindle runout must stay within tight tolerances during finish cuts [NEED_CITE: precision class impact on spindle runout in machine tool applications]. Installation demands controlled press-fit forces — induction heating or hydraulic mounting is preferable to cold press for maintaining bore roundness at this size segment.

Reading the Suffix Stack on This Bearing

The ACD suffix confirms the 25° contact angle with SKF's optimized internal design, meaning the raceway curvature and ball complement are tuned to reduce friction heat under the mixed loading typical of spindle applications. The P4A precision class goes beyond standard ISO class 4 by adding running accuracy specifications — this controls inner and outer ring runout more tightly, which directly affects vibration amplitude at operational speed. For a 25 mm bore bearing running at spindle RPMs, that difference in running accuracy separates a smooth finish pass from visible chatter marks on the workpiece. The single-row angular contact arrangement means this bearing must be mounted in opposition to another bearing to manage bidirectional axial thrust, and the mounting orientation — back-to-back or face-to-face — determines the system's moment rigidity.

The Hidden Cost of a Specification Shortcut

Sourcing a bearing by base number alone — ignoring the ACD contact angle or settling for P5 precision where P4A was specified — creates failures that show up weeks or months later, well past the installer's attention span. Premature cage fatigue, thermal runaway from excess friction, and loss of dimensional accuracy on machined parts all trace back to specification drift. ISO 281 life calculations assume correct bearing selection; when the installed unit doesn't match the application's load, speed, and thermal profile, calculated L10 life becomes meaningless [NEED_CITE: bearing life calculation assumptions per ISO 281]. The cost isn't the replacement bearing — it's the unplanned downtime, scrapped production batches, and potential spindle damage from a seized cage.

Why Procurement Engineers Source Through Us

We source SKF bearings through authorized distributor channels, so every shipment carries traceable batch documentation rather than unmarked stock from unverified intermediaries. When a cross-reference request comes in, we match not just the base designation but the clearance, cage material, and precision suffixes together — because matching the number while missing the suffix is how spindles fail. Our team provides origin identification documentation for import compliance and can verify authenticity through QR code pathways linked to SKF's official verification tools. We've supported distributor networks across the Middle East, Africa, and Latin America where counterfeit exposure is a real procurement risk, and we treat every inquiry as a technical consultation rather than a transaction.

Documentation & Authenticity

• Certificate of Conformity linking the SKF 7005 ACD/HCP4A to its production batch and authorized distribution chain
• QR code verification pathway enabling buyers to authenticate via SKF's official mobile application before installation
• Material certificate confirming bearing steel specification and heat treatment compliance for the P4A precision rings
• Dimensional inspection report verifying bore, OD, width, and running accuracy against P4A tolerances before dispatch
• Country-of-origin documentation and HS code support for customs clearance in destination markets

Storage, Handling & Mounting

• Keep the SKF 7005 ACD/HCP4A in its original sealed packaging until mounting day — premature opening exposes the P4A-precision raceways to ambient contamination that degrades running accuracy
• Store flat in a temperature-stable environment below 60% relative humidity to prevent condensation on the 25 mm bore and 47 mm OD surfaces
• Use clean lint-free gloves during handling; fingerprint moisture on precision-ground angular contact surfaces promotes localized corrosion before the bearing ever sees load
• For spindle installations, use controlled induction heating rather than cold press to avoid bore distortion that compromises the P4A fit tolerance
• Confirm the paired bearing's contact angle and precision class match before mounting — mixing a 15° or P5 unit with this ACD/P4A bearing creates uneven load sharing and premature failure

Request Technical Review Before You Order

Share your spindle or transmission parameters — load profile, operating speed range, ambient and operating temperature — so we can verify the SKF 7005 ACD/HCP4A angular contact ball bearing suits your application or recommend a better-matched variant. If you're replacing an OEM-specified bearing, send us the equipment nameplate number and we'll cross-reference the full suffix stack, not just the base designation. Request the documentation package including origin certification and batch traceability before confirming your order.

Frequently Asked Questions

Q: How do I verify the authenticity of the SKF 7005 ACD/HCP4A I receive? A: Each bearing ships with batch and lot traceability documentation. You can scan the QR code on the packaging using SKF's official mobile application to confirm the product's origin and distribution chain. We also provide Certificate of Conformity and material certificates with every shipment.

Q: What happens if I substitute a standard P0 or P5 precision bearing in place of this P4A unit? A: P4A includes running accuracy specifications beyond standard ISO class 4, controlling ring runout more tightly. Substituting a lower precision class in a spindle application typically results in higher vibration amplitude, reduced surface finish quality on machined parts, and potentially shorter bearing life due to uneven load distribution across the ball complement.

Q: How does the 25° contact angle of the ACD variant compare to 15° or 40° alternatives? A: A 25° contact angle balances axial load capacity with friction heat generation, making it suitable for spindle applications with combined radial and axial loading. A 15° angle offers lower axial rigidity but reduced friction at very high speeds, while a 40° angle handles heavier axial loads but generates more heat under predominantly radial loads.

Q: What does the HC portion of the HCP4A suffix indicate? A: The HC suffix segment is not listed in standard SKF suffix reference tables currently available to us. We recommend confirming the cage material or specific variant designation directly against the manufacturer's latest catalog or by contacting us for verification before finalizing your specification.

Q: Can you provide cross-reference options from NSK, FAG, or NTN for this bearing? A: Yes, we maintain cross-brand interchange data covering SKF, NSK, FAG, TIMKEN, NTN, and KOYO. When providing alternatives, we align not only the base dimensions but also the contact angle, precision class, and cage specifications to ensure functional equivalence in your application.

Confirm Your SKF 7005 ACD/HCP4A Specification Today Send your application parameters or OEM equipment number for a full technical review and cross-reference check. Contact us through your established inquiry channel or request a quotation with documentation package.
