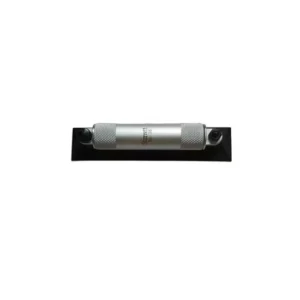

Starrett 98-4 98-12 Machinists Level with Ground Graduated Vial

Unified Precision Sourcing — Consolidate your Starrett measuring instruments and premium bearing orders into a single shipment, eliminating multi-vendor coordination delays.

Technical Specifications

Application Suitability

Why Machine Tool Setup Fails Before the Spindle Even Turns

Misaligned baseplates transfer destructive parasitic loads directly into precision bearings.

During my years conducting metrology failure analysis, I frequently encountered early pitting in machine tool spindle bearings where clients immediately blamed the bearing quality. A quick check with a Starrett level often revealed the real culprit: an unleveled base rail causing severe uneven load distribution across the rolling elements. When the foundation is twisted, no amount of premium lubrication or precise internal clearance can save the bearing from catastrophic edge loading. Proper alignment is the absolute prerequisite for bearing longevity, yet it remains the most overlooked step in heavy equipment assembly [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching Precision Instruments to Demanding Workshop Environments

When sourcing from a reliable Starrett Machinists Level supplier, you need tools that withstand harsh industrial floors while delivering metrology-grade accuracy. The ground and graduated vial ensures clear bubble reading even under poor lighting conditions typical in heavy machinery assembly bays. This capability directly supports our cross-brand bearing packages by ensuring the housing is perfectly prepared before our SKF or FAG bearings are even unboxed. Achieving the correct geometric alignment prevents the inner and outer rings from skewing, which is critical for maintaining the designed contact angle and load distribution within the bearing assembly.

Overcoming Vibration and Thermal Distortion During Setup

Equipment alignment rarely happens in a climate-controlled lab; it occurs on active shop floors with ambient temperature fluctuations and background vibrations. The cast iron body provides necessary mass to dampen minor floor vibrations, while the ground vial maintains sensitivity despite thermal shifts. Ensuring the base is free of microscopic debris is critical, as even a small particle can skew the reading and introduce angular misalignment. Furthermore, the thermal expansion of the machine bed itself must be accounted for during the setup process, requiring the operator to take multiple readings as the equipment reaches its operational temperature [NEED_CITE: alignment tolerances for rotating machinery per ISO 10811].

Interpreting Vial Sensitivity and Base Geometry

The core value of this instrument lies in its ground and graduated vial, which offers superior resolution compared to standard unground alternatives. The 4-inch base length is specifically chosen for versatility, allowing it to fit into tight clearance zones around bearing housings and gearbox flanges. While the standard cast iron construction handles most general machining tasks, users operating in highly corrosive environments might explore specialized surface treatments or alternative base materials to prevent rust-induced measurement errors. The precision-ground base ensures intimate contact with the reference surface, eliminating rocking that plagues cheaper extruded aluminum levels. Understanding how the vial's curvature dictates its sensitivity allows technicians to interpret minute deviations that could otherwise lead to severe misalignment in high-speed spindle applications.

The Cascading Financial Impact of Poor Alignment Tools

Relying on uncertified or worn-out levels leads to compounding errors during the assembly of heavy rotating equipment. This initial misalignment forces bearings to operate under unintended moment loads, drastically accelerating fatigue and leading to unplanned downtime. According to established failure analysis frameworks, a significant share of premature bearing failures stems directly from improper installation and alignment practices rather than manufacturing defects [NEED_CITE: installation and alignment errors per ISO 15243]. The cost of replacing a massive spherical roller bearing, not to mention the lost production time, far exceeds the investment in a genuine, traceable precision level. Ignoring the foundational geometry guarantees that even the most expensive premium bearings will fail long before their calculated L10 life.

Bridging the Gap Between Metrology and Bearing Procurement

Most distributors either sell bearings or sell tools, leaving you to bridge the technical gap between metrology and power transmission. We supply genuine Starrett instruments alongside your bulk bearing orders, ensuring your maintenance team has the exact calibration tools needed for our products. Our technical selection support extends beyond just picking the right bearing; we advise on the precise alignment tolerances required for your specific application. Every instrument we ship comes with complete traceability documentation, matching the rigorous authenticity standards we apply to our premium bearing lines. Furthermore, consolidating your measuring tools and bearing spares into one container significantly reduces your global shipping and customs clearance burdens, simplifying your entire MRO procurement process.

Documentation & Authenticity

• Certificate of Conformity verifying the vial's grinding tolerances and sensitivity grading.
• Original batch traceability linking the instrument to the manufacturer's production facilities.
• Dimensional inspection report confirming the base flatness prior to dispatch.
• Warranty registration documentation validating the one-year coverage period.
• Material verification ensuring the cast iron body meets specified metallurgical standards.

Storage, Handling & Mounting

• Store the level in its original protective case to prevent the ground base from acquiring microscopic scratches that ruin flatness.
• Avoid dropping the instrument; severe impacts can fracture the delicate glass vial or shift its internal calibration mounts.
• Wipe the precision-ground base with a clean, lint-free cloth and light rust preventative oil after every use in humid environments.
• Never use the level as a pry bar or hammer, as structural deformation will instantly invalidate all future measurements.
• Allow the tool to acclimate to the ambient temperature of the machine tool bed before taking critical alignment readings.

Defining Your Alignment Requirements

To ensure we recommend the correct size and sensitivity for your specific machinery, please share your equipment model and the required alignment tolerances. Detailing the physical space constraints around your bearing housings helps us determine if the 4-inch base is sufficient or if a longer variant is needed. Providing information about your shop floor environment, such as exposure to coolant or extreme temperature swings, allows our engineering team to advise on proper maintenance and handling protocols. Once we understand your operational parameters, our team as your dedicated Starrett Machinists Level supplier can also cross-reference your bearing requirements to provide a comprehensive alignment and lubrication strategy adapted to your exact machinery.

Frequently Asked Questions

Q: How do I determine the correct level size and sensitivity for my machine tool setup? A: The required size depends on the physical clearance around your bearing housings and the length of the surfaces being checked. Sensitivity is dictated by the alignment tolerances specified by the machine builder. Share your equipment model and OEM alignment specifications with our engineering team, and we will recommend the exact Starrett variant that matches your precision requirements.

Q: What is the difference between a ground vial and a standard vial? A: A ground vial is precision-machined on the inside to a specific curvature, providing highly consistent and sensitive bubble movement across the entire scale. Standard vials are simply bent tubes, which can have irregularities that cause the bubble to jump or stick. For critical bearing alignment tasks, the smooth, predictable reading of a ground vial is absolutely essential.

Q: How should I maintain the cast iron base to ensure long-term accuracy? A: Cast iron is susceptible to rust, which creates microscopic bumps on the precision-ground base and ruins its flatness. After each use, clean the base thoroughly and apply a very light coat of rust-preventative oil. Always store the level in its protective case, away from direct moisture and temperature extremes, to preserve the original factory calibration and surface finish.

Q: Can this level be recalibrated if it gets dropped or damaged? A: While minor adjustments can sometimes be made to the vial mounting, a severe drop can warp the cast iron body or shatter the glass vial, rendering the tool useless. If the base flatness is compromised, recalibration is impossible. We recommend treating these precision instruments with extreme care and utilizing our replacement services if any physical damage is suspected.

Q: Why buy measuring tools from a bearing supplier? A: Bearing longevity is entirely dependent on proper installation and alignment. By sourcing your precision levels from the same supplier providing your bearings, you ensure your maintenance team is equipped with the exact tools required to meet our technical installation guidelines. This unified approach eliminates compatibility guesswork and ensures your entire rotational system is set up for maximum service life.
